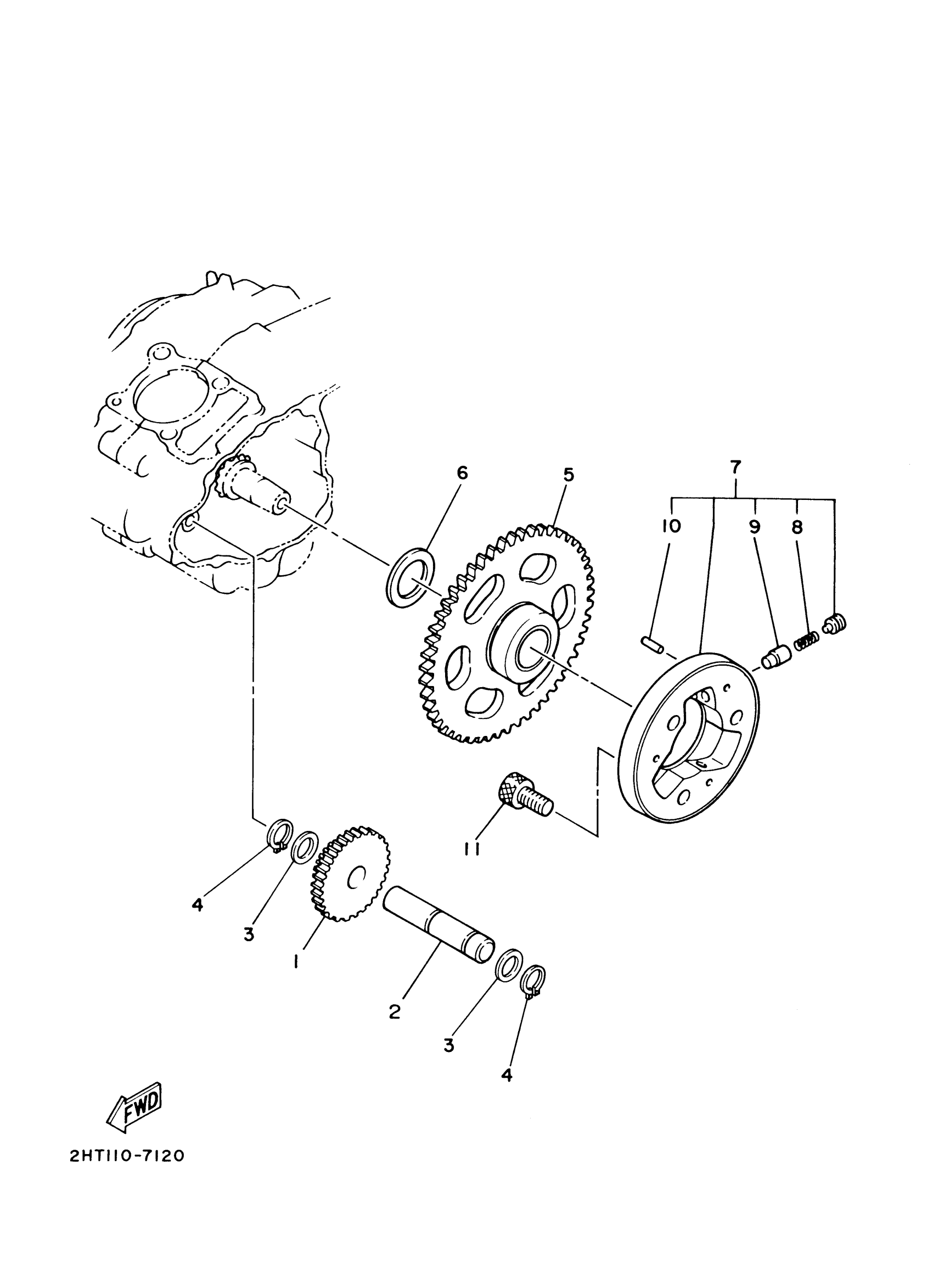

Yamaha YFM250BT (BRUIN 250) 1P01 2005 STARTER CLUTCH Diagram

#

Description
Price

1

GEAR, IDLER 1

1P0-E5512-00-00

Unavailable

2

SHAFT 1

5XG-E5521-00-00

Unavailable

3

WASHER PLATE 164185720000

90201-12166-00

$9.49

4

CIRCLIP(10Y)

99009-12400-00

$3.59

5

GEAR, IDLER 2

5XG-E5517-00-00

Unavailable

6

WASHER, PLATE(1FK)

90201-256K6-00

Unavailable

7

STARTER CLUTCH OUTER ASSY

31A-15580-00-00

Unavailable

8

SPRING, COMPRESSION (2H7)

90501-04503-00

$9.49

9

CAP, STARTER CLUTCH

1J7-15583-01-00

$18.49

10

PIN,DOWEL(341)

93615-12088-00

$7.49

11

BOLT, SOCKET

91317-08016-00

$8.49
