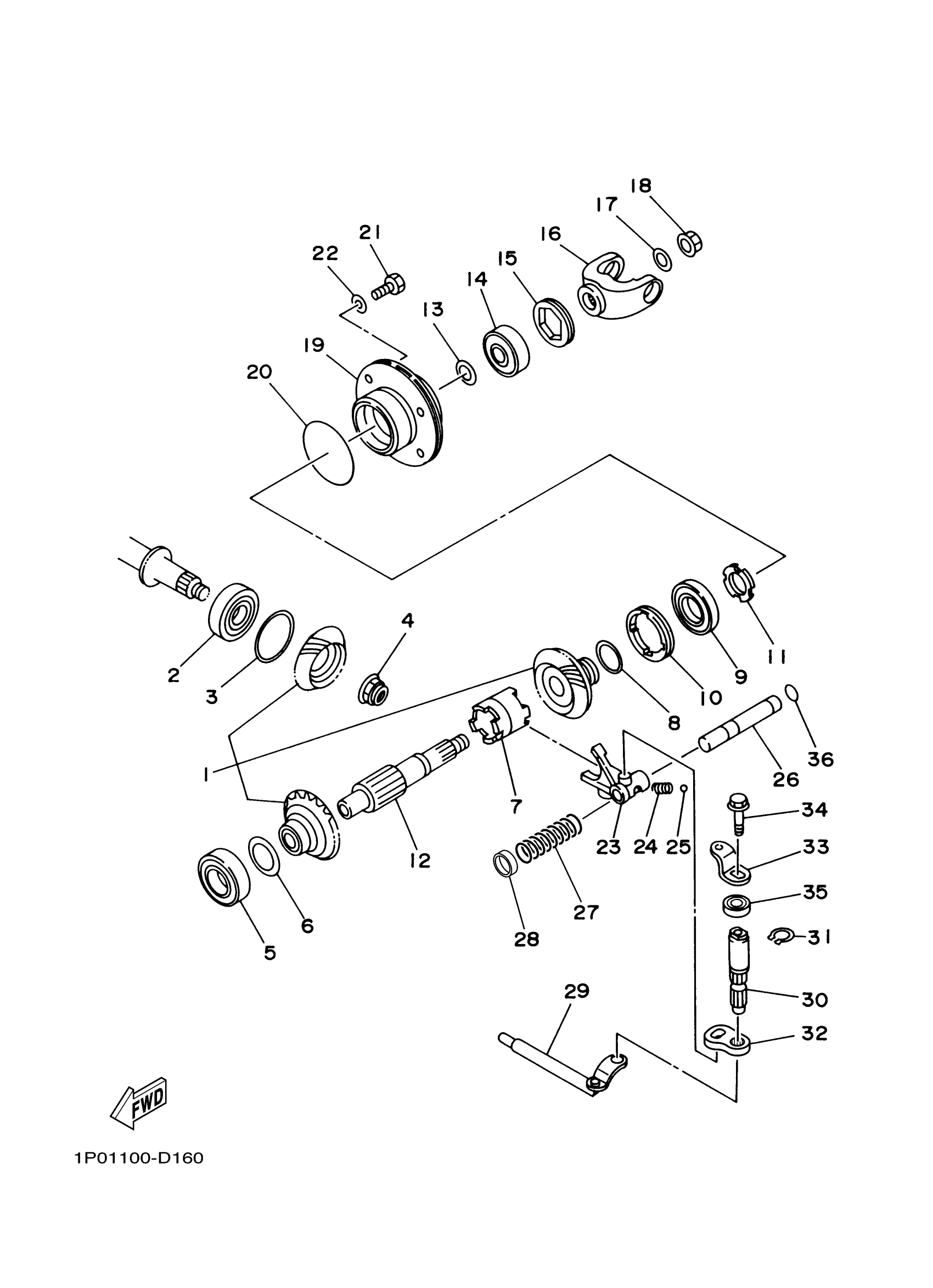

Yamaha YFM250BT (BRUIN 250) 1P01 2005 MIDDLE DRIVE GEAR Diagram

#

Description
Price

1

PINION SET

52G-17530-00-00

Unavailable

2

BRG.

93306-304YE-00

Unavailable

3

SHIM, THRUST (0.13T)

24W-17537-10-00

$2.39

3

SHIM, THRUST (0.15T)

24W-17537-20-00

$7.99

3

SHIM, THRUST (0.2T)

24W-17537-30-00

Unavailable

3

SHIM, THRUST (0.3T)

24W-17537-40-00

Unavailable

3

SHIM, THRUST (0.4T)

24W-17537-50-00

$7.99

3

SHIM, THRUST (0.5T)

24W-17537-60-00

$7.99

4

NUT(3GC)

90179-16651-00

Unavailable

5

BEARING

93306-006Y3-00

Unavailable

6

SHIM, PINION

52G-17531-01-00

$1.92

6

SHIM, PINION

52G-17531-11-00

$1.92

6

SHIM, PINION

52G-17531-21-00

$7.99

6

SHIM, PINION

52G-17531-31-00

$6.99

6

SHIM, PINION

52G-17531-41-00

$7.99

6

SHIM, PINION

52G-17531-51-00

Unavailable

7

CLUTCH, DOG

5XG-E7285-00-00

Unavailable

8

SHIM (0.15T)

52G-17967-20-00

Unavailable

8

SHIM (0.2T)

52G-17967-30-00

Unavailable

8

SHIM (0.3T)

52G-17967-40-00

Unavailable

9

BRG.

93306-078Y0-00

Unavailable

10

NUT(52G)

90179-55464-00

Unavailable

11

NUT(52G)

90179-28465-00

Unavailable

12

SHAFT, MIDDLE DRIVEN

5XG-E7553-00-00

Unavailable

13

SHIM

5XG-E7968-00-00

Unavailable

13

SHIM

5XG-E7968-10-00

Unavailable

13

SHIM

5XG-E7968-20-00

Unavailable

13

SHIM, (1.3T)

5XG-E7968-30-00

Unavailable

13

SHIM

5XG-E7968-40-00

Unavailable

13

SHIM, (1.5T)

5XG-E7968-50-00

Unavailable

13

SHIM, (1.6T)

5XG-E7968-60-00

Unavailable

13

SHIM

5XG-E7968-70-00

Unavailable

13

SHIM, (1.8T)

5XG-E7968-80-00

Unavailable

13

SHIM

5XG-E7968-90-00

Unavailable

14

BEARING

93399-99917-00

Unavailable

15

NUT, BEARING

1P0-E7642-00-00

Unavailable

16

YOKE, JOINT

5XG-E7556-00-00

Unavailable

17

WASHER, PLATE

90201-12027-00

Unavailable

18

NUT(3EF)

90179-12657-00

Unavailable

19

HOUSING, BEARING

5XG-E7551-00-00

Unavailable

20

O-RING

93210-53800-00

Unavailable

21

BOLT, HEXAGON

97017-08025-00

Unavailable

22

WASHER(6TA)

92907-08600-00

Unavailable

23

FORK, SHIFT 4

5XG-E8514-00-00

Unavailable

24

SPRING, COMPRESSION(52G)

90501-101A5-00

Unavailable

25

BALL

93501-04805-00

Unavailable

26

BAR, SHIFT FORK GUIDE

5XG-E8534-00-00

Unavailable

27

SPRING, COMPRESSION

90501-13800-00

Unavailable

28

CAP, SPRING

1P0-E8323-00-00

Unavailable

29

STOPPER SHAFT ASSY

5XG-E812A-00-00

Unavailable

30

SHAFT

5XG-E8197-00-00

Unavailable

31

CIRCLIP(13H)

99009-14400-00

Unavailable

32

LEVER, SHIFT

5XG-E8451-00-00

Unavailable

33

LEVER

5XG-E8198-00-00

Unavailable

34

BOLT, FLANGE

95817-06016-00

Unavailable

35

OIL SEAL

93102-14856-00

Unavailable

36

O-RING (1J7)

93210-09350-00

Unavailable
