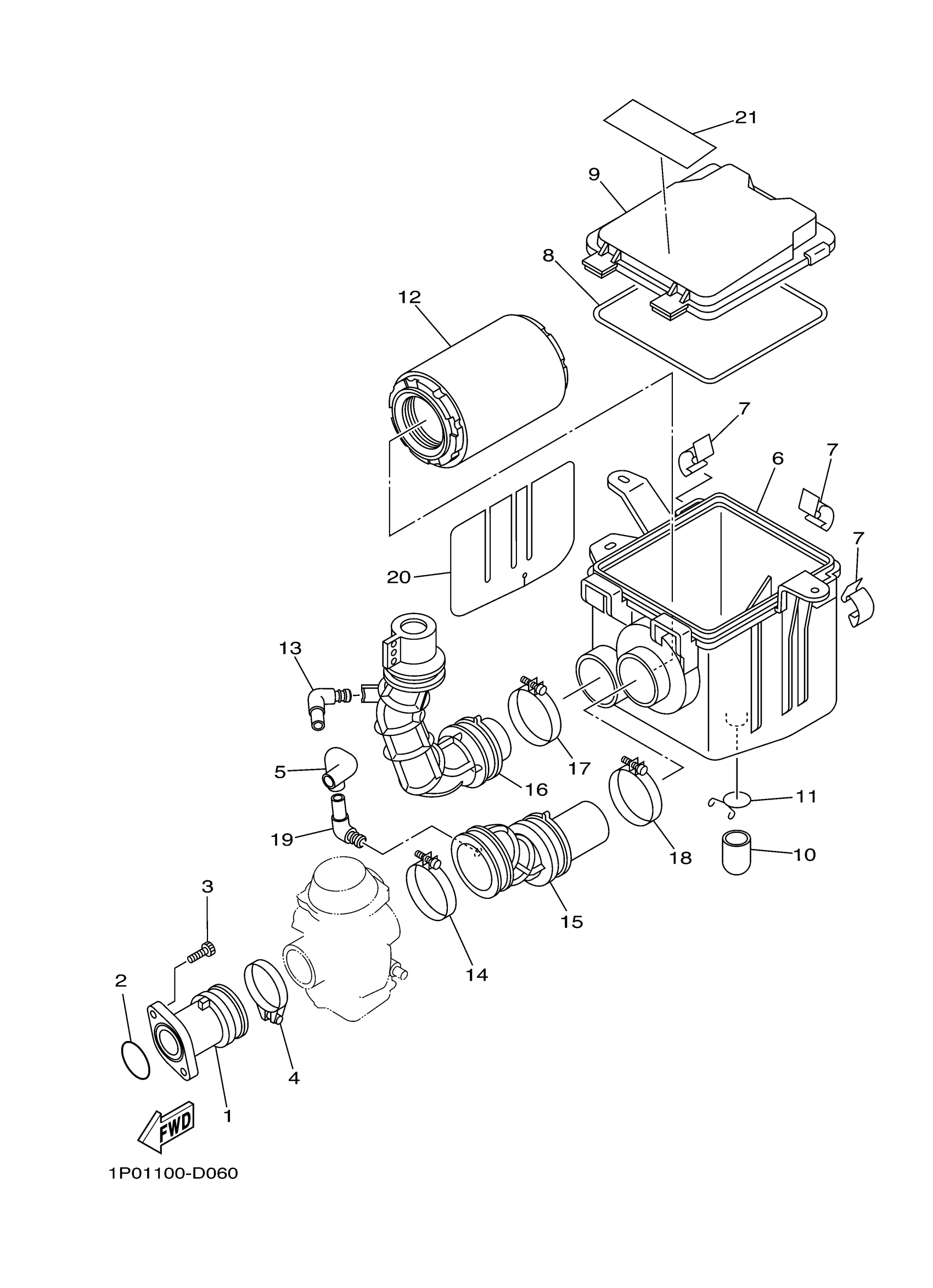

Yamaha YFM250BT (BRUIN 250) 1P01 2005 INTAKE Diagram
#
Description
Price
3
BOLT,SOCKET
91317-06020-00
Unavailable
7
CLIP, CAP FITTING
5ND-E4424-00-00
Unavailable
9
CAP, CLEANER CASE
1P0-E4412-10-00
Unavailable
11
CLIP, DRAIN CLEANE
1P0-E4438-00-00
Unavailable
15
JOINT, AIR CLEANER 1
1P0-E4453-00-00
Unavailable
16
DUCT
4XE-E4437-00-00
Unavailable
17
HOSE CLAMP ASSY
90450-58002-00
Unavailable
20
PROTECTOR
4XE-E442F-10-00
Unavailable
21
PLATE, EPA 3 (CALIFORNIA)
1P0-2179T-00-00
Unavailable
