Description

Price

1

DISC, BRAKE (LEFT)

4XE-F582T-11-00

Unavailable

2

BOLT

90109-08087-00

$8.49

3

CALIPER ASSY (LEFT)

3GD-2580T-01-00

$298.99

4

PISTON ASSY, CALIPER

3GD-W0057-00-00

$65.99

5

CALIPER SEAL KIT

3GD-W0047-00-00

$15.49

6

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

7

BRAKE PAD KIT

3GD-W0045-01-00

$35.99

8

SHIM, CALIPER

3GD-25827-00-00

$10.99

9

PIN, PAD

3GD-25933-00-00

$28.99

10

CALIPER ASSY (RIGHT)

3GD-2580U-01-00

$298.99

11

PISTON ASSY, CALIPER

3GD-W0057-00-00

$65.99

12

CALIPER SEAL KIT

3GD-W0047-00-00

$15.49

13

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

14

BRAKE PAD KIT

3GD-W0045-01-00

$35.99

15

SHIM, CALIPER

3GD-25828-00-00

$4.42

16

PIN, PAD

3GD-25933-00-00

$28.99

17

BOLT, FLANGE

90105-08161-00

Unavailable

18

RING, WHEEL 1

4XE-F514A-00-00

Unavailable

19

BOLT, FLANGE

95817-06012-00

Unavailable

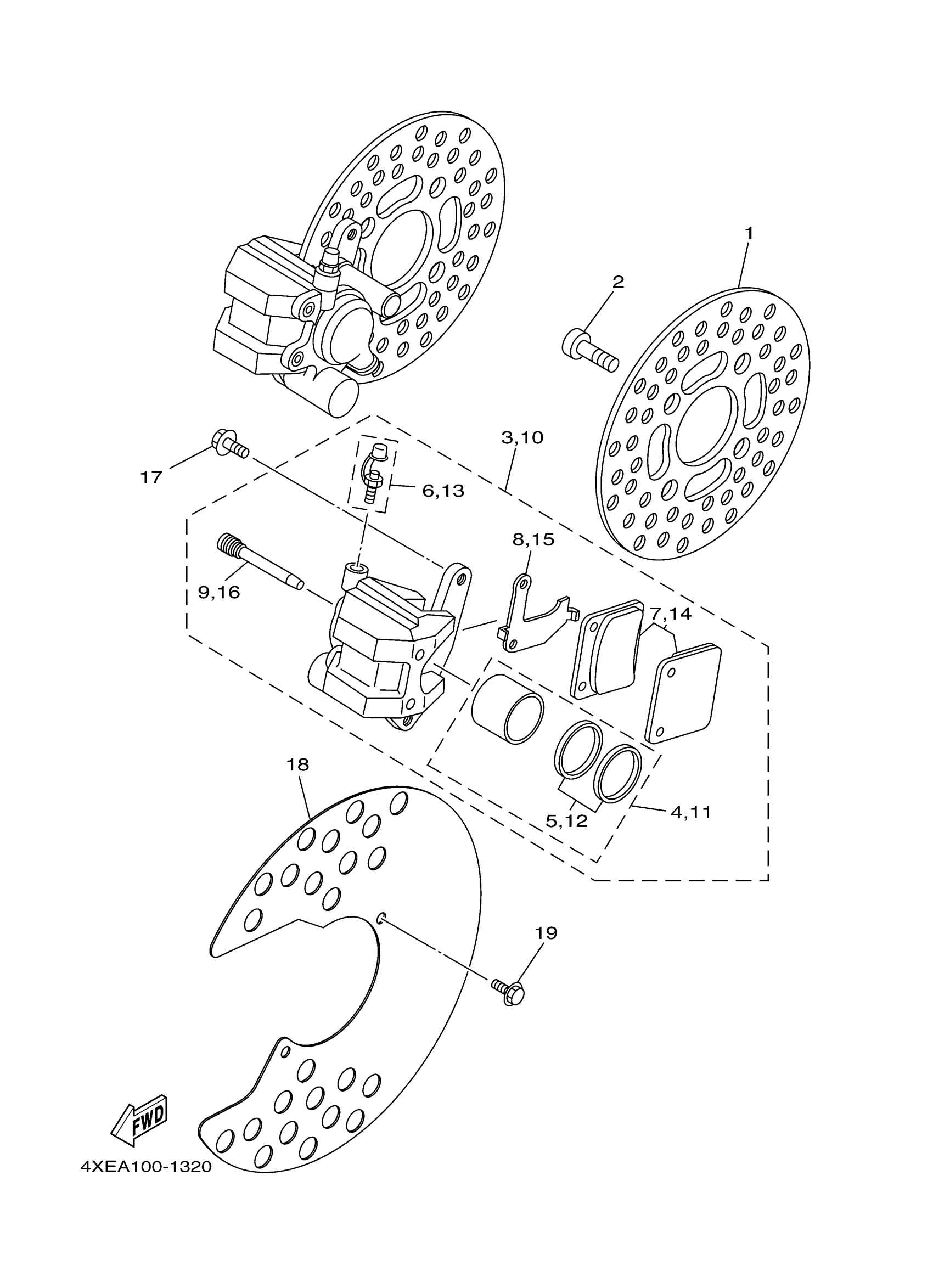

Yamaha YFM250BT (BRUIN 250) 1P01 2005 FRONT BRAKE CALIPER Diagram

DISC, BRAKE (LEFT)

BOLT

CALIPER ASSY (LEFT)

PISTON ASSY, CALIPER

CALIPER SEAL KIT

BLEED SCREW KIT

BRAKE PAD KIT

SHIM, CALIPER

PIN, PAD

CALIPER ASSY (RIGHT)

PISTON ASSY, CALIPER

CALIPER SEAL KIT

BLEED SCREW KIT

BRAKE PAD KIT

SHIM, CALIPER

PIN, PAD

BOLT, FLANGE

RING, WHEEL 1

BOLT, FLANGE
