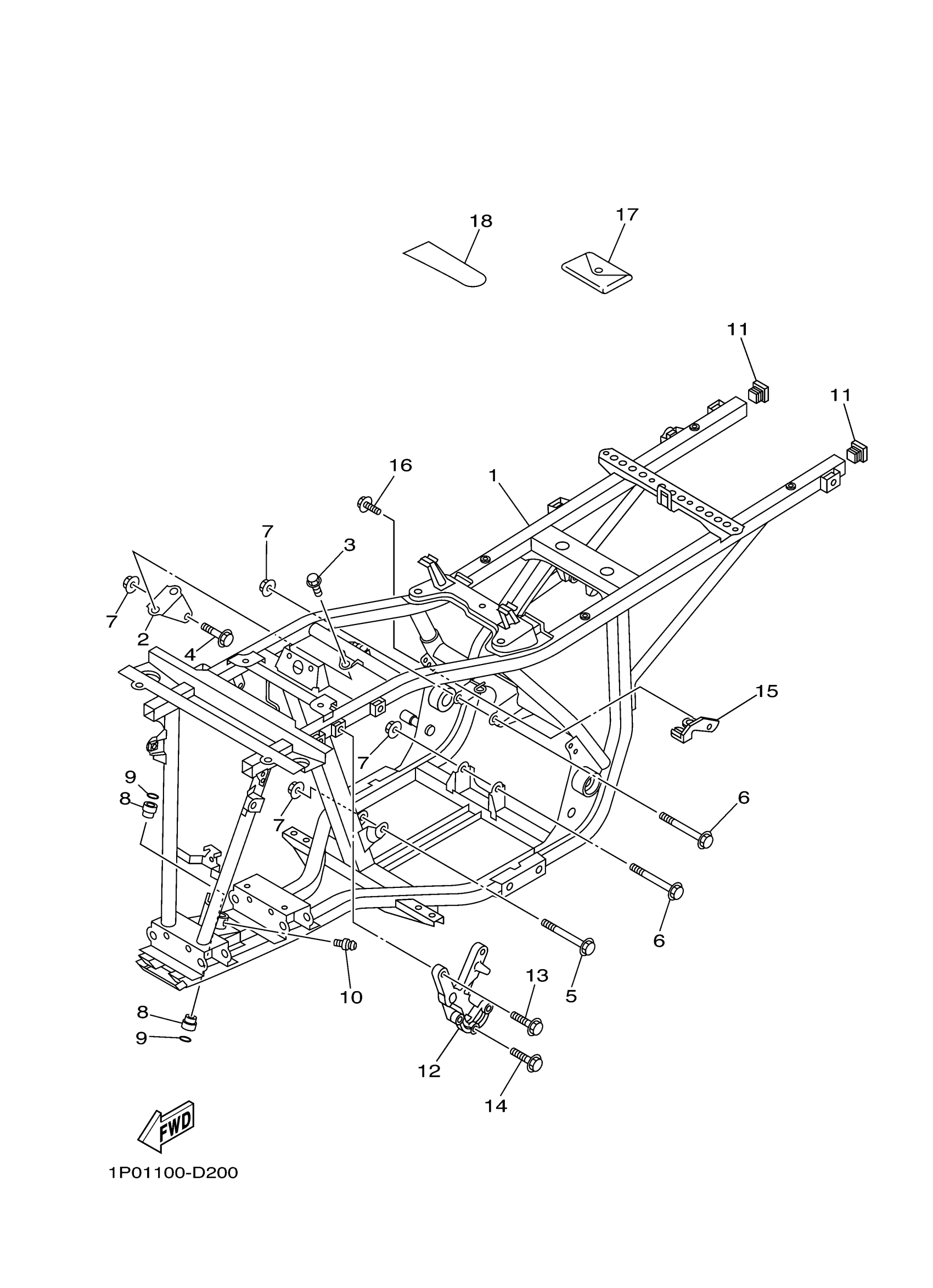

Yamaha YFM250BT (BRUIN 250) 1P01 2005 FRAME Diagram
#
Description
Price
1
FRAME COMP.
1P0-F1110-01-00
Unavailable
2
STAY, ENGINE 2
4XE-F1315-01-00
Unavailable
5
BOLT, FLANGE
90105-088A8-00
Unavailable
10
NIPPLE, GREASE
93700-06M03-00
Unavailable
11
. CAP, MAIN PIPE
5FU-F111A-00-00
Unavailable
12
ARM
1P0-F1585-00-00
Unavailable
15
BRACKET, SWITCH
1P0-F1453-00-00
Unavailable
16
BOLT, FLANGE
95817-06012-00
Unavailable
17
TOOL KIT
5ND-F8100-00-00
Unavailable
18
GAUGE, AIR
1NV-2811A-01-00
Unavailable
