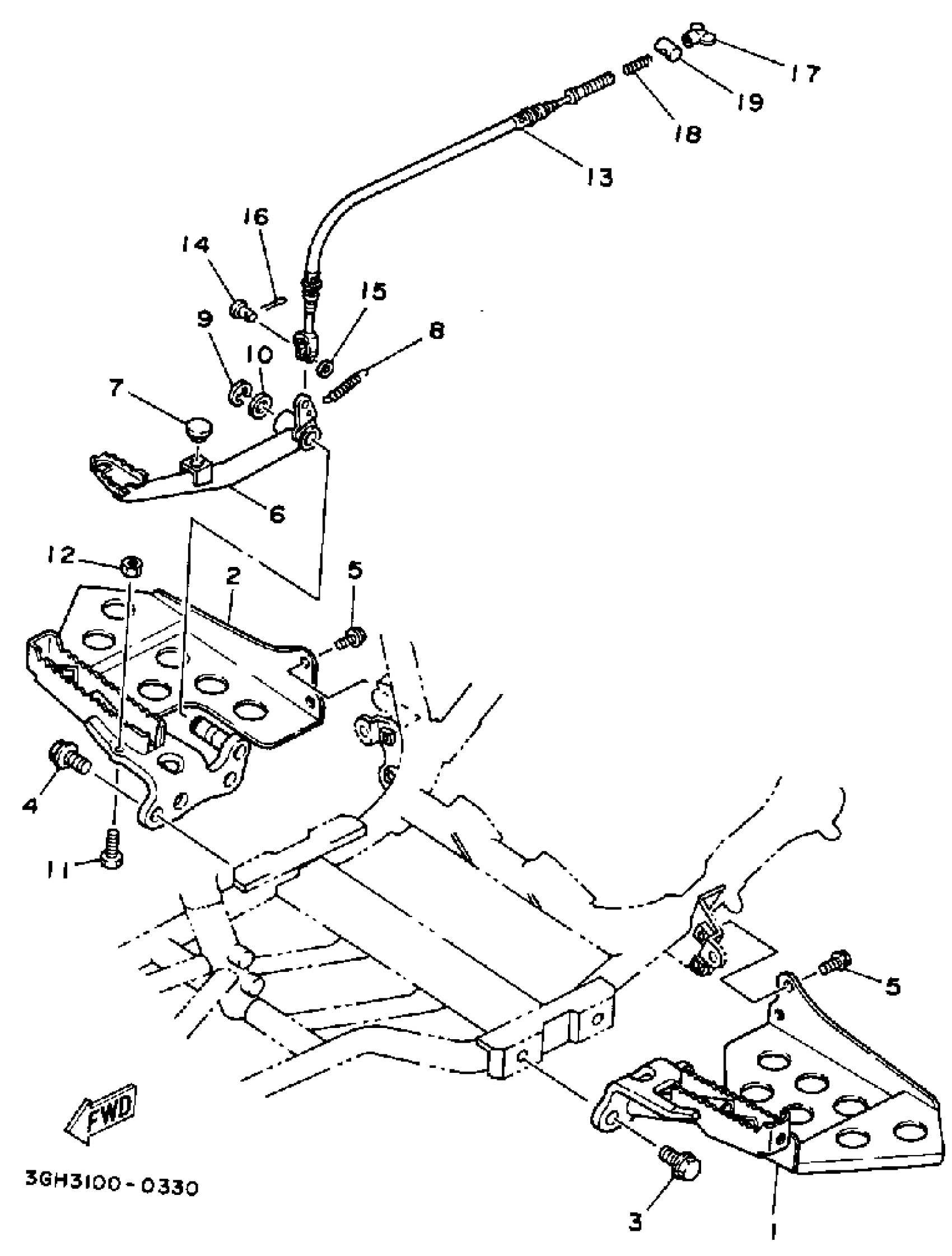

Yamaha YFM250B (MOTO-4) 3GH5 1991 STAND-FOOTREST Diagram

#

Description
Price

1

FOOTREST 1

3GH-27411-00-00

Unavailable

2

FOOTREST 2

3GH-27421-00-00

Unavailable

3

BOLT, FLANGE

95817-12020-00

Unavailable

4

BOLT, FLANGE

95817-12020-00

Unavailable

5

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

6

PEDAL, BRAKE

59V-27211-00-00

Unavailable

7

STOPPER, MAIN STAND

128-27114-00-00

$7.99

8

SPRING, TENSION (29U)

90506-16318-00

$10.49

9

CIRCLIP (122)

93430-12008-00

$8.49

10

WASHER, PLATE (3X3)

90201-15797-00

$9.49

11

BOLT

90101-06595-00

Unavailable

12

NUT, HEXAGON

95380-06600-00

Unavailable

13

CABLE, BRAKE

3GH-26351-00-00

Unavailable

14

PIN, CLEVIS (3X3)

90240-06076-00

$8.49

15

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

16

PIN, COTTER

91490-20025-00

Unavailable

17

NUT, AJUSTING

20E-26343-00-00

Unavailable

18

SPRING, COMPRESSION (29U)

90501-10782-00

Unavailable

19

PIN 1562723700

90249-12008-00

Unavailable
