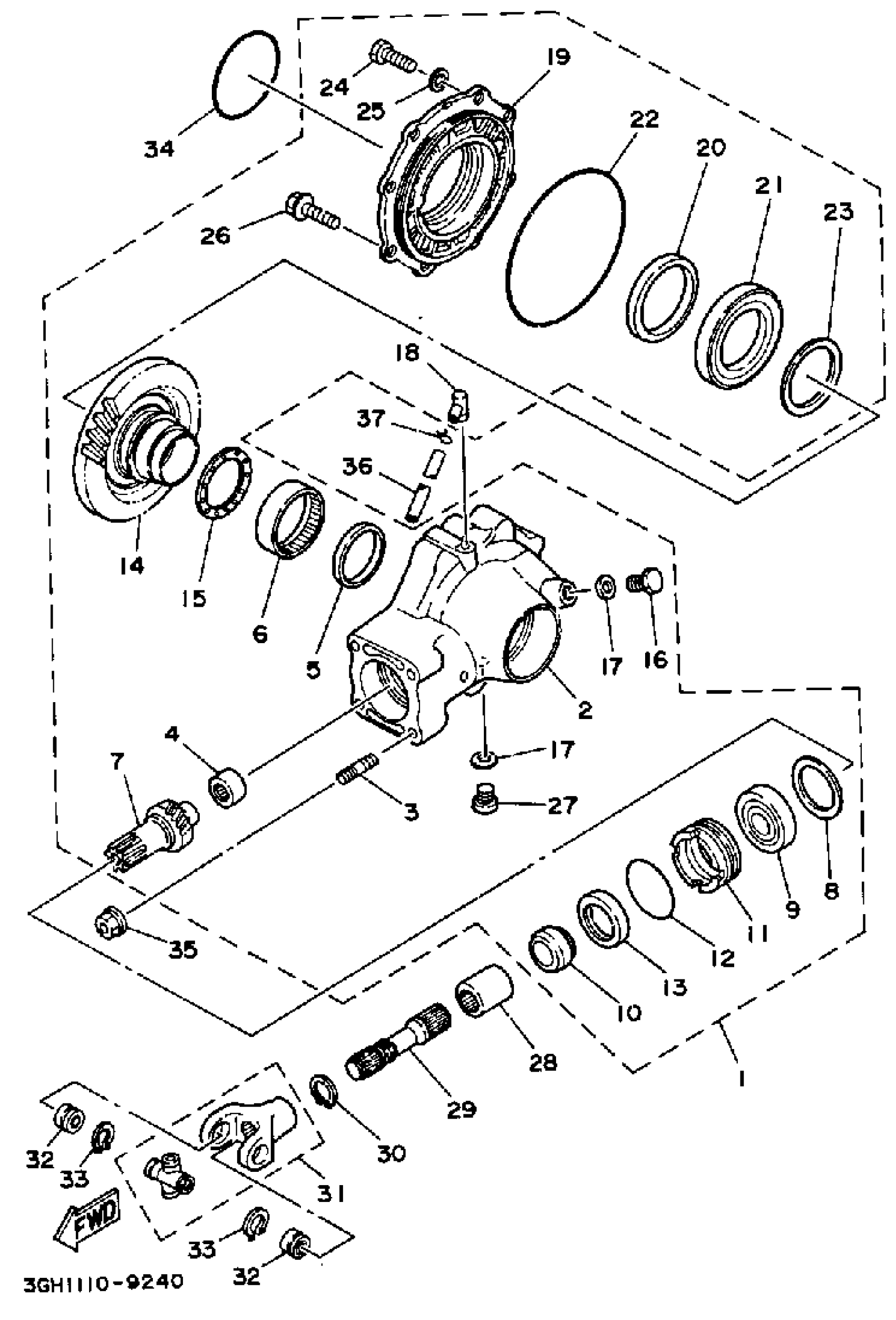

Yamaha YFM250B (MOTO-4) 3GH5 1991 DRIVE SHAFT Diagram
#
1
RR AXL GR CASE ASSEMBLY
3GH-46101-00-00
Unavailable
2
HOUSING, DRIVE SHAFT
3HN-46151-01-00
Unavailable
3
BOLT, STUD (5E5)
90116-10361-00
Unavailable
6
. BEARING, CYLINDER17
93317-55542-00
Unavailable
9
BEARING(3RR)
93306-30560-00
Unavailable
10
COLLAR (24W)
90387-255H9-00
Unavailable
13
OIL SEAL (4H7)
93101-38098-00
Unavailable
14
. RING GEAR COMP
1YW-46110-00-00
Unavailable
15
WASHER, THRUST
24W-46118-00-12
Unavailable
15
WASHER, THRUST
24W-46118-00-14
Unavailable
15
WASHER, THRUST
24W-46118-00-16
Unavailable
15
WASHER, THRUST
24W-46118-00-18
Unavailable
15
WASHER, THRUST
24W-46118-00-20
Unavailable
16
PLUG, STRAIGHT(2E9)
90340-14029-00
Unavailable
17
GASKET
214-11198-01-00
Unavailable
18
BREATHER
5UG-15371-00-00
Unavailable
19
HOUSING,BEARING
2HT-46152-00-00
Unavailable
20
OIL SEAL (22U)
93102-65277-00
Unavailable
21
BEARING, CYLINDRICAL (22U)
93316-01301-00
Unavailable
22
O-RING(59V)
93211-54698-00
Unavailable
23
. SHIM, RING GEAR (025T)
24W-46117-00-25
Unavailable
23
. SHIM, RING GEAR (030T)
24W-46117-00-30
Unavailable
23
. SHIM, RING GEAR (040T)
24W-46117-00-40
Unavailable
23
. SHIM, RING GEAR (050T)
24W-46117-00-50
Unavailable
24
BOLT (682)
97013-08025-00
Unavailable
25
.. WASHER, PLATE
92990-08600-00
Unavailable
26
BOLT, FLANGE(4GB)
95817-10045-00
Unavailable
27
PLUG, STRAIGHT SCREW
90340-14002-00
Unavailable
28
COUPLING, GEAR
2HR-46123-00-00
Unavailable
29
SHAFT, DRIVE
3GH-46172-00-00
Unavailable
30
CIRCLIP (537)
93410-22039-00
Unavailable
31
CROSS JOINT COMP.
4X7-46180-00-00
Unavailable
32
BEARING(2HR)
93399-99926-00
Unavailable
33
CIRCLIP (4X7)
93440-20088-00
Unavailable
34
O-RING(59V)
93210-85706-00
Unavailable
35
NUT, FLANGE(3BM)
95704-10500-00
Unavailable
36
HOSE (L1700)
90445-070G6-00
Unavailable
37
CLIP (1J7)
90467-07029-00
Unavailable
