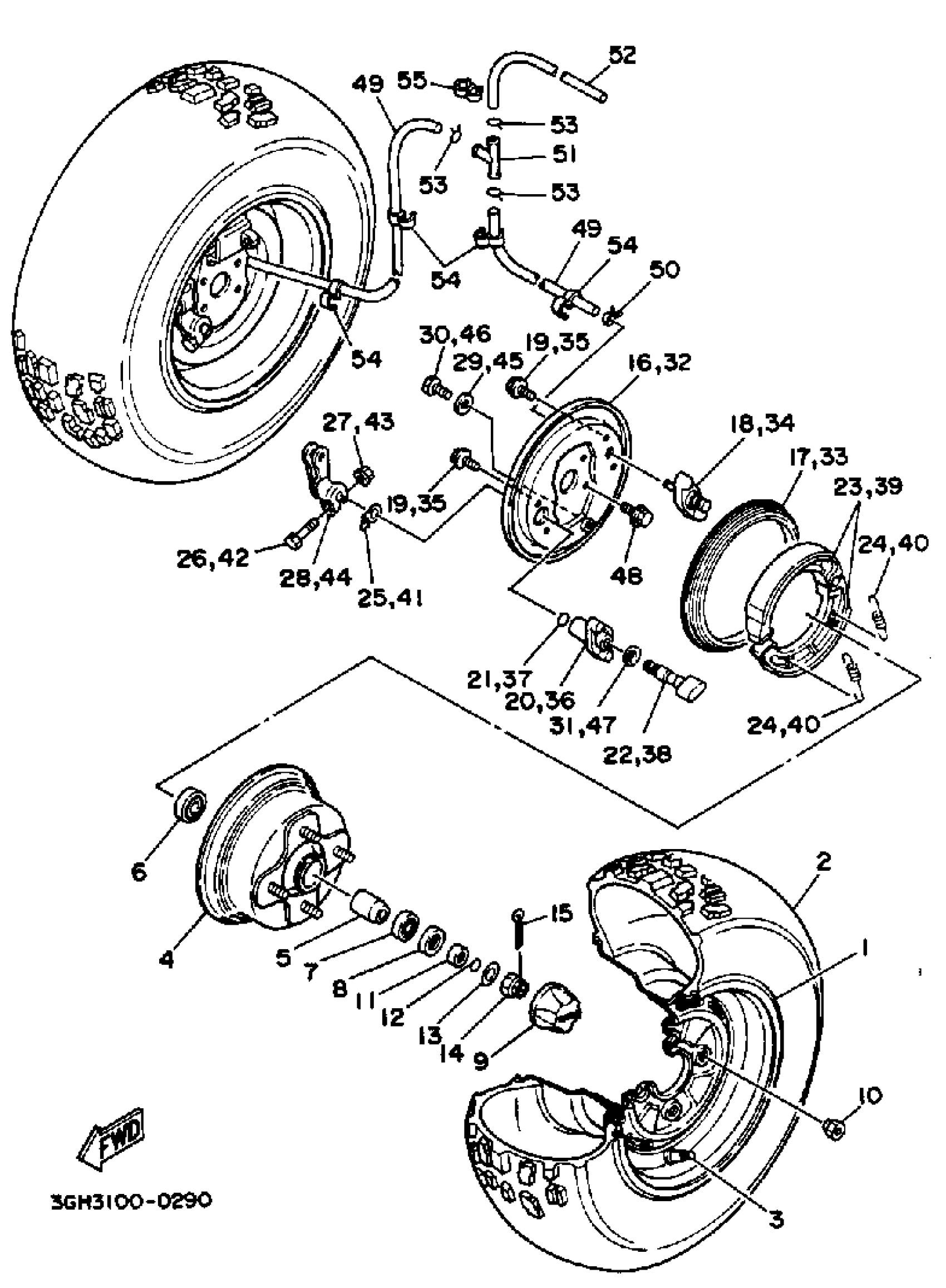

Yamaha YFM250A (MOTO-4) 1990 FRONT WHEEL Diagram

#

Description
Price

1

WHEEL COMP.

3GH-25180-00-35

Unavailable

2

AT22X8-10KT486MA D

94108-103W3-00

Unavailable

2

AT22X8-10KT486MA D

94108-103W3-00

Unavailable

3

VALVE, RIM(2GH)

93900-00030-00

$16.99

4

HUB, FRONT

3GH-25111-00-00

Unavailable

5

SPACER, BEARING

2NL-25117-00-00

Unavailable

6

BEARING(8AB)

93306-00444-00

$41.99

7

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

$22.99

8

OIL SEAL (7H5)

93102-22216-00

$11.49

9

CAP, WHEEL

52H-2512A-00-00

$22.99

10

NUT(2HR)

90179-10540-00

$5.60

11

FLANGE, SPACER 1

3GH-25115-00-00

Unavailable

12

O-RING

93210-15680-00

Unavailable

13

WASHER PLATE 248181370000

90201-14220-00

$8.49

14

NUT, CASTLE(2UJ)

90171-14056-00

$13.49

15

PIN, COTTER

91490-30030-00

Unavailable

16

BACKING PLATE ASSEMBLY (L/H)

3GH-27290-00-00

Unavailable

17

SEAL, PLATE DUST

3GH-25129-10-00

Unavailable

18

ANCHOR BODY COMP.

3GH-27206-00-00

Unavailable

19

BOLT, FLANGE

95817-06012-00

Unavailable

20

BRACKET, CAM

3GH-2512E-00-00

Unavailable

21

O-RING (26H)

93210-14579-00

Unavailable

22

CAMSHAFT

3GH-25151-00-00

Unavailable

23

BRAKE SHOE SET

4BD-W2536-01-00

Unavailable

24

SPRING, RETURN

2NL-25133-00-00

Unavailable

25

PLATE, INDICATOR

3GH-2513A-00-00

Unavailable

26

BOLT

90101-06652-00

Unavailable

27

NUT, FLANGE(7NB)

95780-06500-00

Unavailable

28

LEVER, CAMSHAFT 1

2NL-25155-00-00

Unavailable

29

WASHER

3GH-25898-00-00

Unavailable

30

BOLT, CALIPER

3GH-25818-00-00

Unavailable

31

WASHER

2NL-25153-00-00

Unavailable

32

BACKING PLATE ASSEMBLY (R/H)

3GH-27280-00-00

Unavailable

33

SEAL, PLATE DUST

3GH-25129-10-00

Unavailable

34

ANCHOR BODY COMP.

3GH-27206-00-00

Unavailable

35

BOLT, FLANGE

95817-06012-00

Unavailable

36

BRACKET, CAM

3GH-2512E-00-00

Unavailable

37

O-RING (26H)

93210-14579-00

Unavailable

38

CAMSHAFT

3GH-25151-00-00

Unavailable

39

BRAKE SHOE SET

4BD-W2536-01-00

Unavailable

40

SPRING, RETURN

2NL-25133-00-00

Unavailable

41

PLATE, INDICATOR

3GH-2513A-00-00

Unavailable

42

BOLT

90101-06652-00

Unavailable

43

NUT, FLANGE(7NB)

95780-06500-00

Unavailable

44

LEVER, CAMSHAFT 1

2NL-25155-00-00

Unavailable

45

WASHER

3GH-25898-00-00

Unavailable

46

BOLT, CALIPER

3GH-25818-00-00

Unavailable

47

WASHER

2NL-25153-00-00

Unavailable

48

BOLT, FLANGE

95817-08012-00

Unavailable

49

HOSE (L1050)

90445-072G8-00

Unavailable

50

CLIP(42X)

90467-07093-00

Unavailable

51

WAY 3(33M)

90413-05014-00

Unavailable

52

HOSE (L1050)

90445-072G8-00

Unavailable

53

CLIP (16G)

90467-08021-00

Unavailable

54

CLIP (867)

90468-15020-00

Unavailable

55

CLIP(33M)

90468-15139-00

Unavailable
