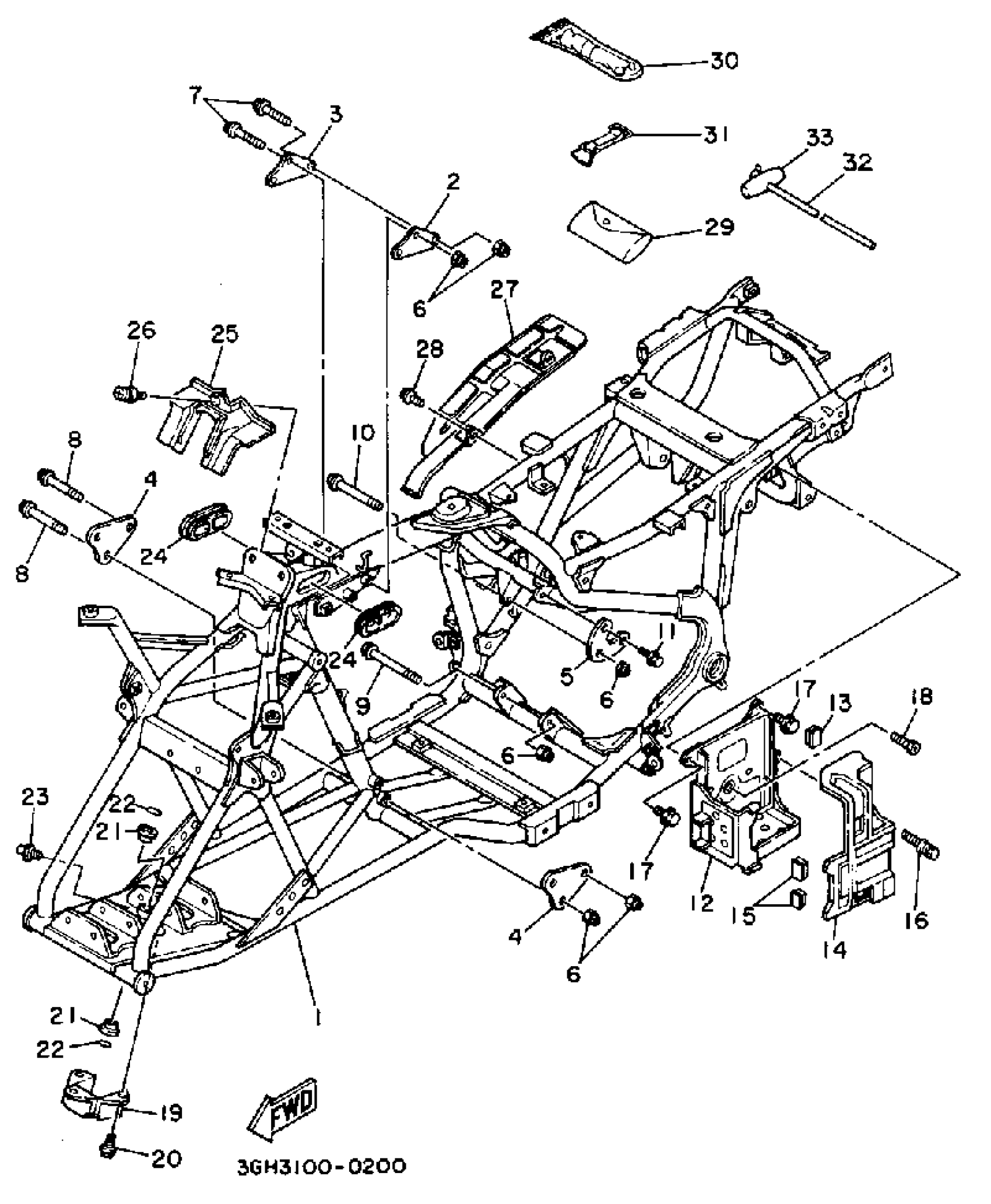

Yamaha YFM250A (MOTO-4) 1990 FRAME Diagram
#
1
FRAME
3GH-21110-10-33
Unavailable
2
STAY, ENGINE 2
29U-21315-00-00
Unavailable
3
STAY, ENGINE 2
59V-21315-00-00
Unavailable
4
STAY, ENGINE 3
59V-21316-00-00
Unavailable
5
STAY, ENGINE 2
(3GH-21315-00-00)
Unavailable
9
BOLT, FLANGE(4BD)
95817-08105-00
Unavailable
12
BOX
1YW-21170-01-00
Unavailable
13
COVER 2
3FC-2139R-00-00
Unavailable
14
BOX
24W-21245-00-00
Unavailable
15
COVER 2
3FC-2139R-00-00
Unavailable
16
BOLT, WITH WASHER
90119-06152-00
Unavailable
17
BOLT, FLANGE
95817-06012-00
Unavailable
18
SCREW (5G3)
90153-06034-00
Unavailable
19
GUARD, ENGINE 1
59V-2147A-00-00
Unavailable
20
BOLT, FLANGE
95817-06012-00
Unavailable
21
BUSH, SOLID (J22)
90381-15040-00
Unavailable
22
O-RING (22U)
93210-15566-00
Unavailable
23
NIPPLE, GREASE
93700-06M03-00
Unavailable
24
GUIDE, AIR
52H-2137Y-00-00
Unavailable
25
COVER
59V-2117F-01-00
Unavailable
26
SCREW, WITH WASHER(52W)
90159-05121-00
Unavailable
27
COVER, REAR FENDER 3
1YW-2163F-00-00
Unavailable
28
BOLT, WITH WASHER(55K)
90119-06117-00
Unavailable
29
TOOL KIT
3GH-28100-00-00
Unavailable
30
GAUGE, AIR
1NV-2811A-01-00
Unavailable
31
BAND, TOOL
21V-21376-00-00
Unavailable
32
ROPE
59V-15781-00-00
Unavailable
33
HANDLE, STARTER
646-15755-02-00
Unavailable
