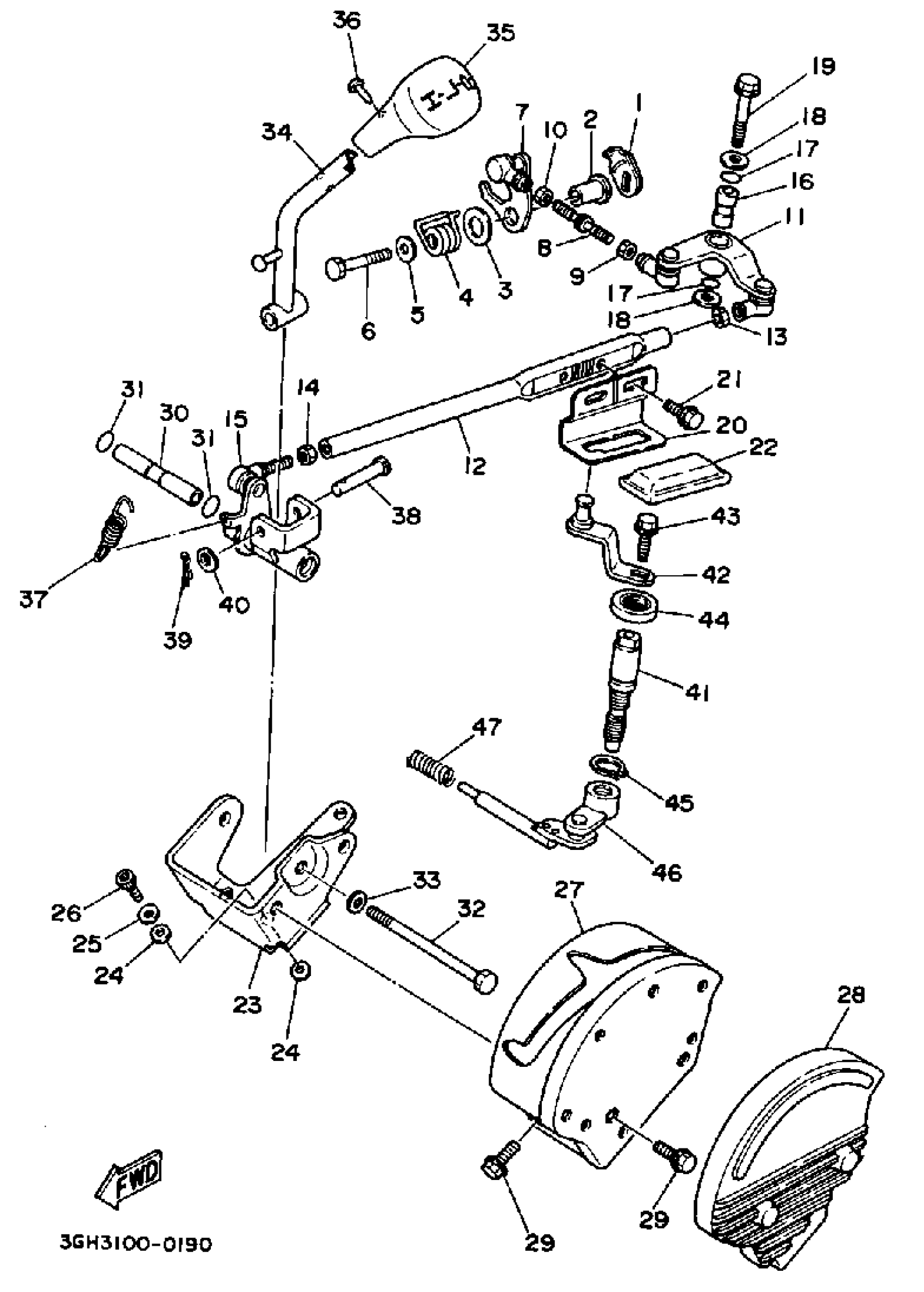

Yamaha YFM250A (MOTO-4) 1990 DRIVE SELECTOR Diagram
#
5
WASHER, PLATE
90201-06M02-00
Unavailable
7
LEVER
3JN-18191-00-00
Unavailable
8
ROD, SHIFT
3JN-18115-00-00
Unavailable
11
LEVER, SHIFT 3
3JN-18151-00-00
Unavailable
12
JOINT, ROD 2
3JN-18117-02-00
Unavailable
14
NUT
90170-08261-00
Unavailable
15
SHAFT, RINK
3JN-18341-01-00
Unavailable
16
COLLAR
90387-063W3-00
Unavailable
17
O-RING(3LD)
93210-12790-00
Unavailable
18
WASHER, PLATE
90201-06380-00
Unavailable
19
BOLT, FLANGE
95817-06040-00
Unavailable
20
PLATE, STOPPER
3JN-18141-00-00
Unavailable
21
BOLT, FLANGE
95817-06010-00
Unavailable
22
COVER, DUST
3GH-18154-00-00
Unavailable
23
BRACKET, SHIFTER
3JN-18431-00-00
Unavailable
24
WASHER, PLATE(4BD)
90201-067P3-00
Unavailable
25
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
26
BOLT,SOCKET
91317-06016-00
Unavailable
27
BRACKET
3JN-18128-00-00
Unavailable
28
COVER, SHIFT SHAFT
3JN-18129-00-00
Unavailable
29
BOLT, FLANGE
95817-06012-00
Unavailable
30
COLLAR
90387-063W2-00
Unavailable
31
O-RING(3LD)
93210-12790-00
Unavailable
32
BOLT(3GG)
97017-06090-00
Unavailable
33
WASHER, PLAIN (646)
92990-06600-00
Unavailable
34
LEVER, SHIFT 3
3JN-18150-00-00
Unavailable
35
KNOB, SHIFT LEVER
3JN-18174-00-00
Unavailable
36
RIVET(81E)
90269-05055-00
Unavailable
37
SPRING, TENSION(3JN)
90506-16451-00
Unavailable
38
PIN, CLEVIS (565)
91701-08042-00
Unavailable
39
CLIP 136253750000
90468-12006-00
Unavailable
40
WASHER, PLAIN
92990-08200-00
Unavailable
41
SHAFT
3GC-18197-00-00
Unavailable
42
LEVER
3JN-18198-00-00
Unavailable
43
BOLT, FLANGE
95817-06016-00
Unavailable
44
OIL SEAL (3Y1)
93102-14209-00
Unavailable
45
CIRCLIP(13H)
99009-14400-00
Unavailable
46
STOPPER SHAFT ASSEMBLY
3JN-1812A-00-00
Unavailable
47
SPRING, COMPRESSION
90501-125F7-00
Unavailable
