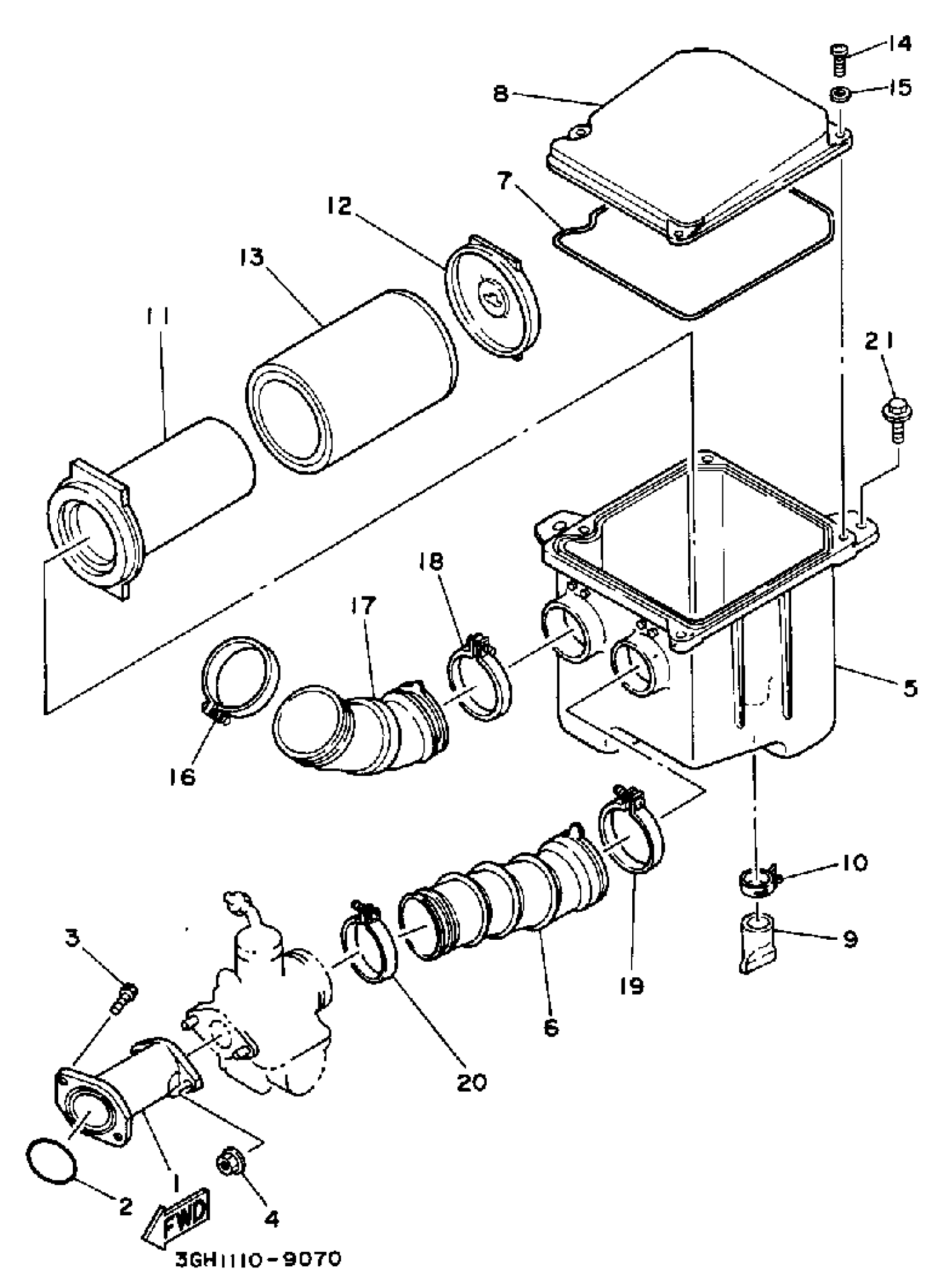

Yamaha YFM250A (MOTO-4) 1990 AIR FILTER Diagram

JOINT, CARBURETOR 1

29U-13586-01-00

$80.99

O-RING (16G)

93210-35537-00

$14.49

BOLT,SOCKET

91317-06020-00

Unavailable

NUT, FLANGE(7NB)

95780-06500-00

$2.60

CASE,AIR CLEANER

3GH-14411-01-00

Unavailable

JOINT, AIR CLEANER 1

3GH-14453-00-00

Unavailable

SEAL

1VJ-14462-00-00

$18.49

CAP, CLEANER CASE 1

21V-14412-01-00

$18.49

SEAL

59V-14457-00-00

$6.99

CLIP (21V)

90467-22080-00

$8.49

GUIDE

1YW-14458-01-00

$79.99

PLATE, ELEMENT FITTING

1UY-14468-00-00

$20.99

ELEMENT,AIR CLNR

1YW-14451-01-00

$18.49

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

WASHER, PLAIN (646)

92990-05600-00

$0.80

HOSE CLAMP ASSY

90450-56001-00

Unavailable

DUCT

1YW-14437-00-00

Unavailable

HOSE CLAMP ASSY

90450-58002-00

Unavailable

HOSE CLAMP ASSY

90450-56001-00

Unavailable

HOSE CLAMP ASSY(10F)

90450-45075-00

Unavailable

BOLT, WITH WASHER (30X)

90119-06096-00

Unavailable
