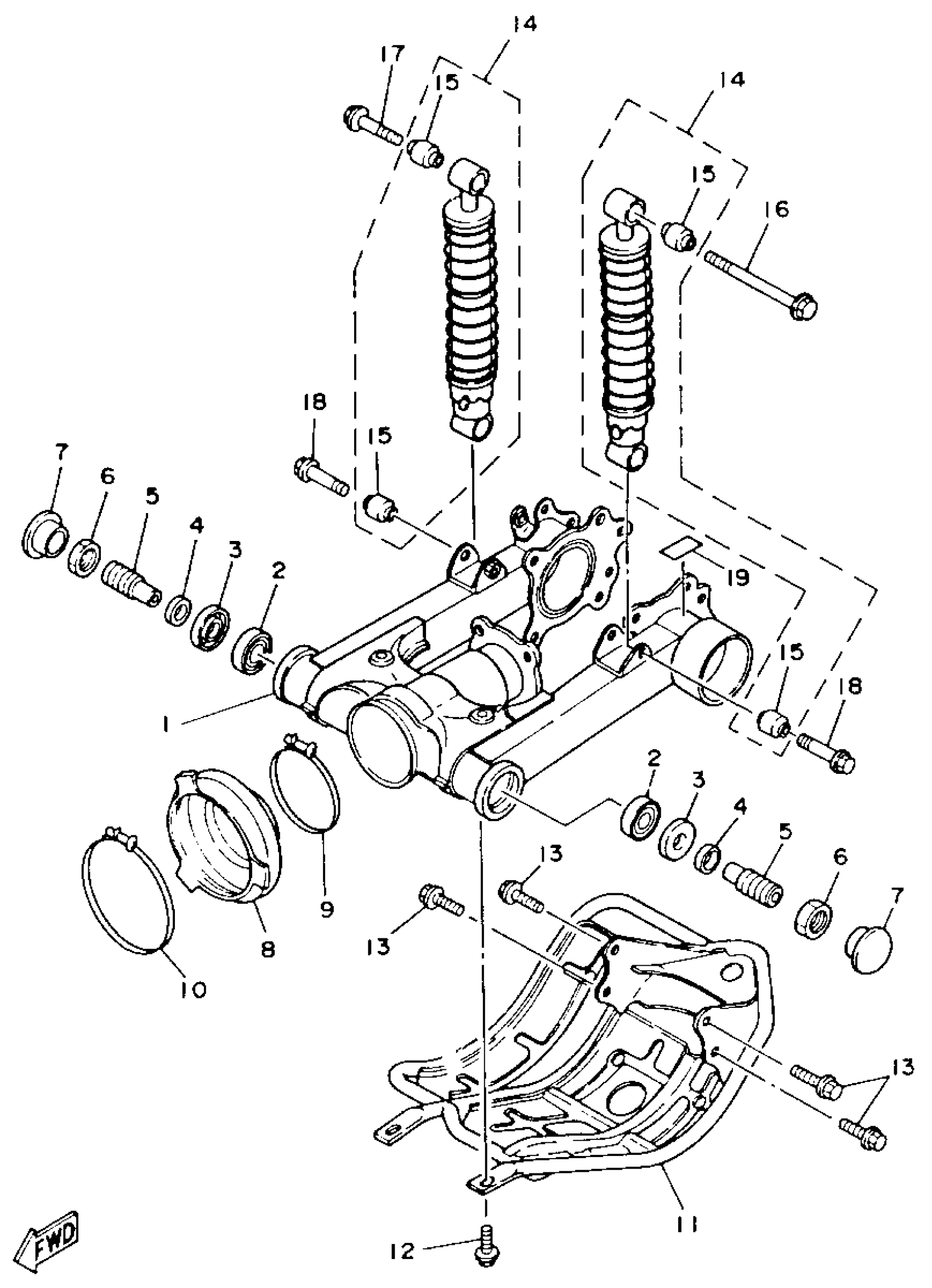

Yamaha YFM225U (MOTO-4) 1988 SWING ARM REAR SHOCKS Diagram

#

Description
Price

1

REAR ARM

2HT-22110-00-33

Unavailable

2

BRG,CYL-CAL ROLLER 74G KY

93332-00010-00

$38.52

3

OIL SEAL (25X40X5-101)

93102-25017-00

$3.92

4

COLLAR

90387-17011-00

$11.93

5

SHAFT, PIVOT

4WV-22141-00-00

$25.51

6

NUT, PIVOT SHAFT

1J7-22143-00-00

$19.05

7

PLUG (1J7)

90338-34069-00

Unavailable

8

BOOT, RUBBER (1YW-22189-00-00)

59V-22189-00-00

Unavailable

9

CLAMP, HOSE(59V)

90460-85277-00

$11.76

10

HOSE CLAMP ASSY(2HR)

90450-99013-00

$14.71

11

COVER

59V-2219X-00-00

Unavailable

12

BOLT, FLANGE

95817-08012-00

$3.71

13

BOLT, FLANGE(3HP)

95817-10016-00

$5.75

14

SHOCK ABSORBER ASSEMBLY, REAR

59V-22210-01-33

Unavailable

15

BUSH, REAR SHOCK ABSORBER

59V-22216-00-00

Unavailable

16

BOLT, WASHER BASED(59V)

90105-10392-00

Unavailable

17

BOLT, WASHER BASED(59V)

90105-10388-00

Unavailable

18

BOLT, WASHER BASED(59V)

90105-10388-00

Unavailable

19

LABEL, OIL CAUTION

4H7-46181-10-00

Unavailable
