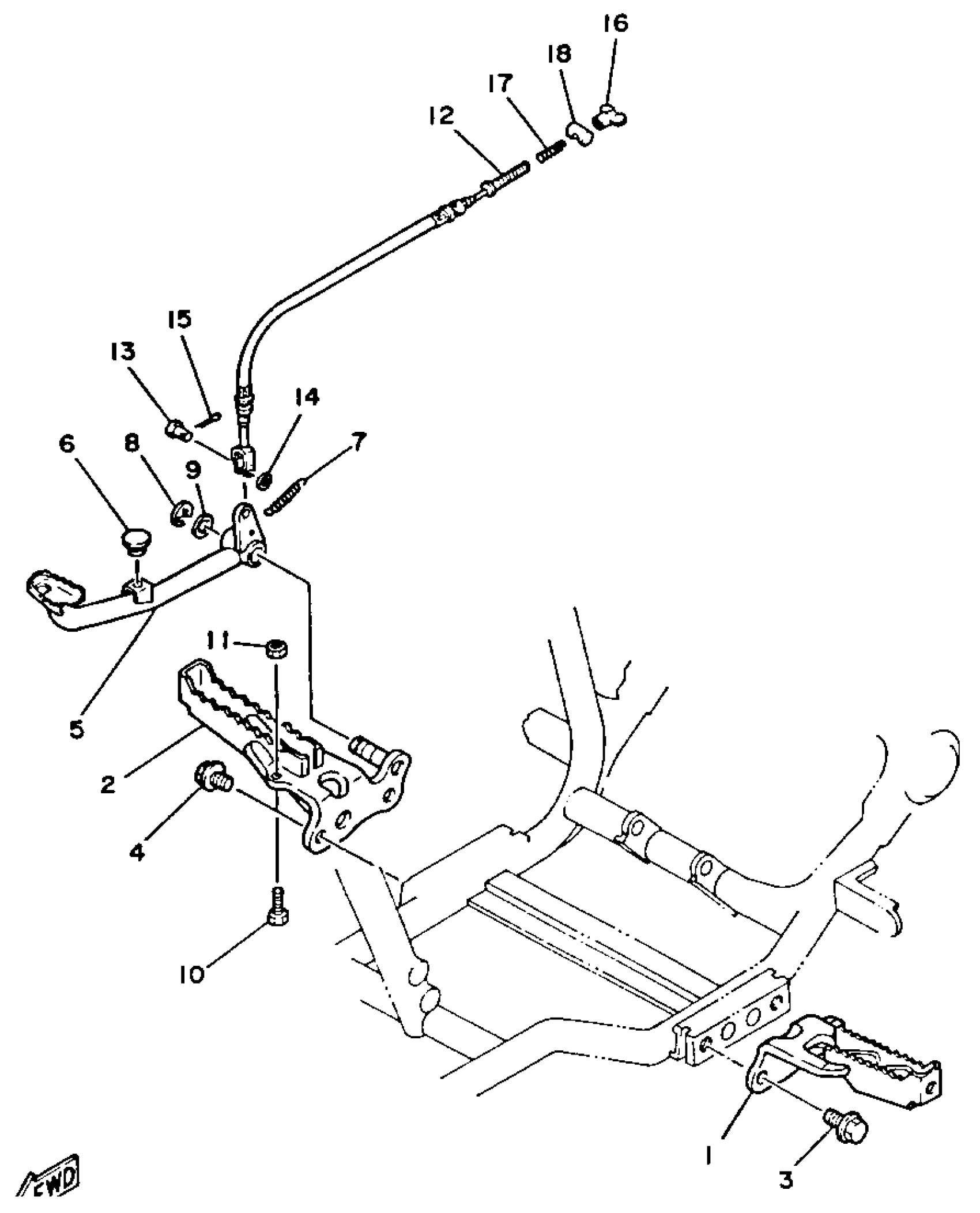

Yamaha YFM225U (MOTO-4) 1988 STAND FOOTREST Diagram

#

Description
Price

1

FOOTREST 1

29U-27411-11-00

Unavailable

2

FOOTREST 2

29U-27421-10-00

Unavailable

3

BOLT, FLANGE

95817-12020-00

Unavailable

4

BOLT, FLANGE

95817-12020-00

Unavailable

5

PEDAL, BRAKE

59V-27211-00-00

Unavailable

6

STOPPER, MAIN STAND

128-27114-00-00

$7.99

7

SPRING, TENSION (29U)

90506-16318-00

$10.49

8

CIRCLIP (122)

93430-12008-00

$8.49

9

WASHER, PLATE (3X3)

90201-15797-00

$9.49

10

BOLT

90101-06595-00

Unavailable

11

NUT, HEXAGON

95380-06600-00

Unavailable

12

CABLE, BRAKE

59V-26351-00-00

Unavailable

13

PIN, CLEVIS (3X3)

90240-06076-00

$8.49

14

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

15

PIN, COTTER

91490-20025-00

$1.99

16

NUT, AJUSTING

20E-26343-00-00

Unavailable

17

SPRING, COMPRESSION (29U)

90501-10782-00

Unavailable

18

PIN 1562723700

90249-12008-00

Unavailable
