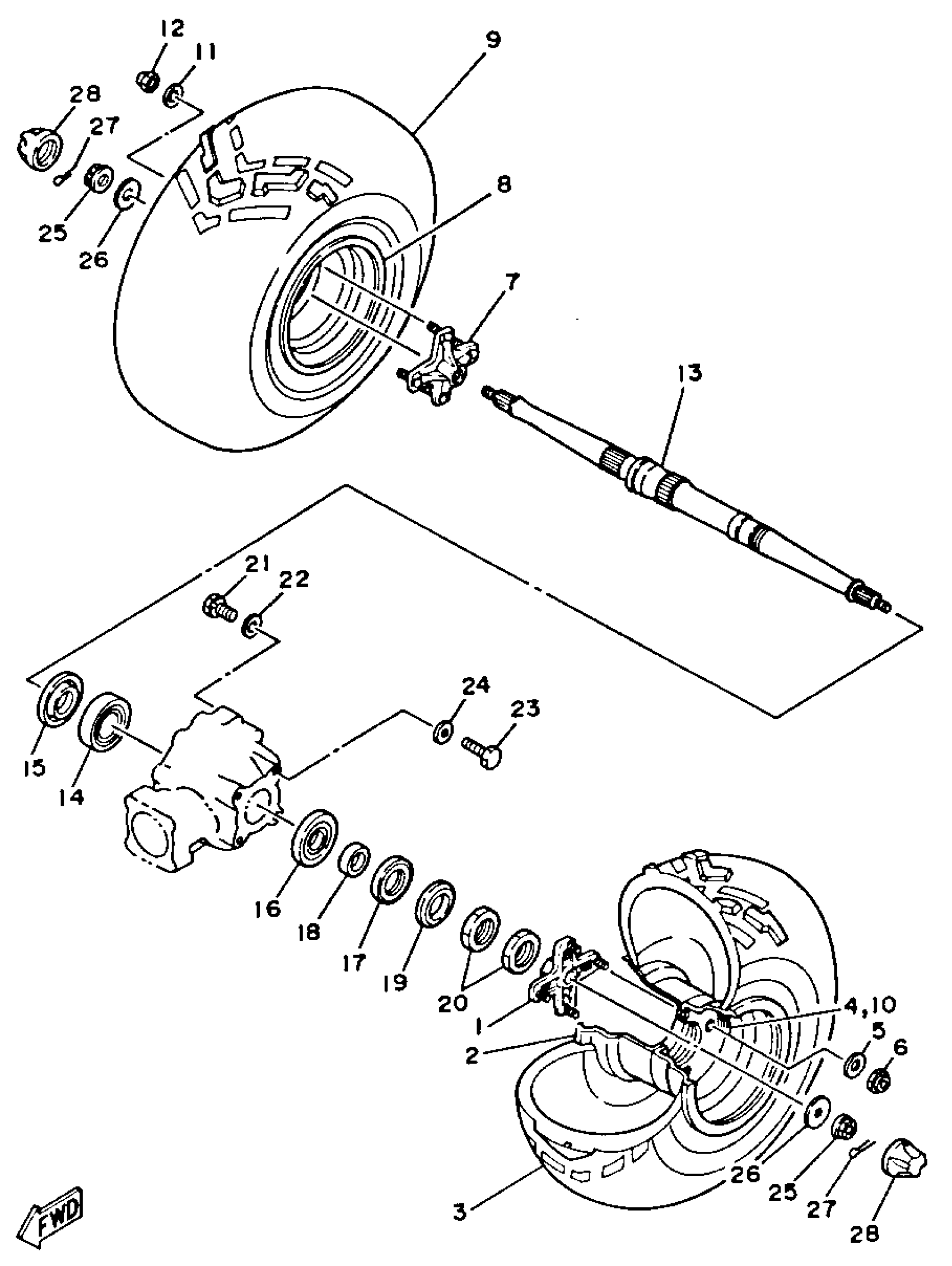

Yamaha YFM225U (MOTO-4) 1988 REAR WHEEL Diagram
#
Description
Price
1
COLLAR, WHEEL
2HT-25383-00-00
Unavailable
2
WHEEL,REAR
2HT-25390-00-4R
Unavailable
3
DUN 25X12-9 KT725M
94112-091R2-00
Unavailable
3
CS AT25X12-9 C866
94112-092R9-00
Unavailable
7
COLLAR, WHEEL
2HT-25383-00-00
Unavailable
8
WHEEL,REAR
2HT-25390-00-4R
Unavailable
9
DUN 25X12-9 KT725M
94112-091R2-00
Unavailable
9
CS AT25X12-9 C866
94112-092R9-00
Unavailable
13
AXLE, WHEEL
2HT-25381-02-00
Unavailable
14
BEARING (24W)
93399-99913-00
Unavailable
15
COVER, HUB DUST
24W-25367-00-00
Unavailable
16
BEARING
93306-00804-00
Unavailable
17
OIL SEAL (21V)
93102-46274-00
Unavailable
18
COLLAR, AXLE
24W-25386-00-00
Unavailable
19
COVER, HUB DUST
21V-25367-00-00
Unavailable
20
NUT, SPECL SHAPE
90179-40419-00
Unavailable
21
BOLT(6TD)
97017-10025-00
Unavailable
22
WASHER, PLATE
92990-10600-00
Unavailable
23
BOLT (8J7)
97013-10030-00
Unavailable
24
WASHER, PLATE
92990-10600-00
Unavailable
25
NUT, CASTLE (29U)
90171-14037-00
Unavailable
26
WASHER, PLATE
90201-144K1-00
Unavailable
27
PIN, COTTER
91490-30030-00
Unavailable
28
CAP, WHEEL
52H-2512A-00-00
Unavailable
