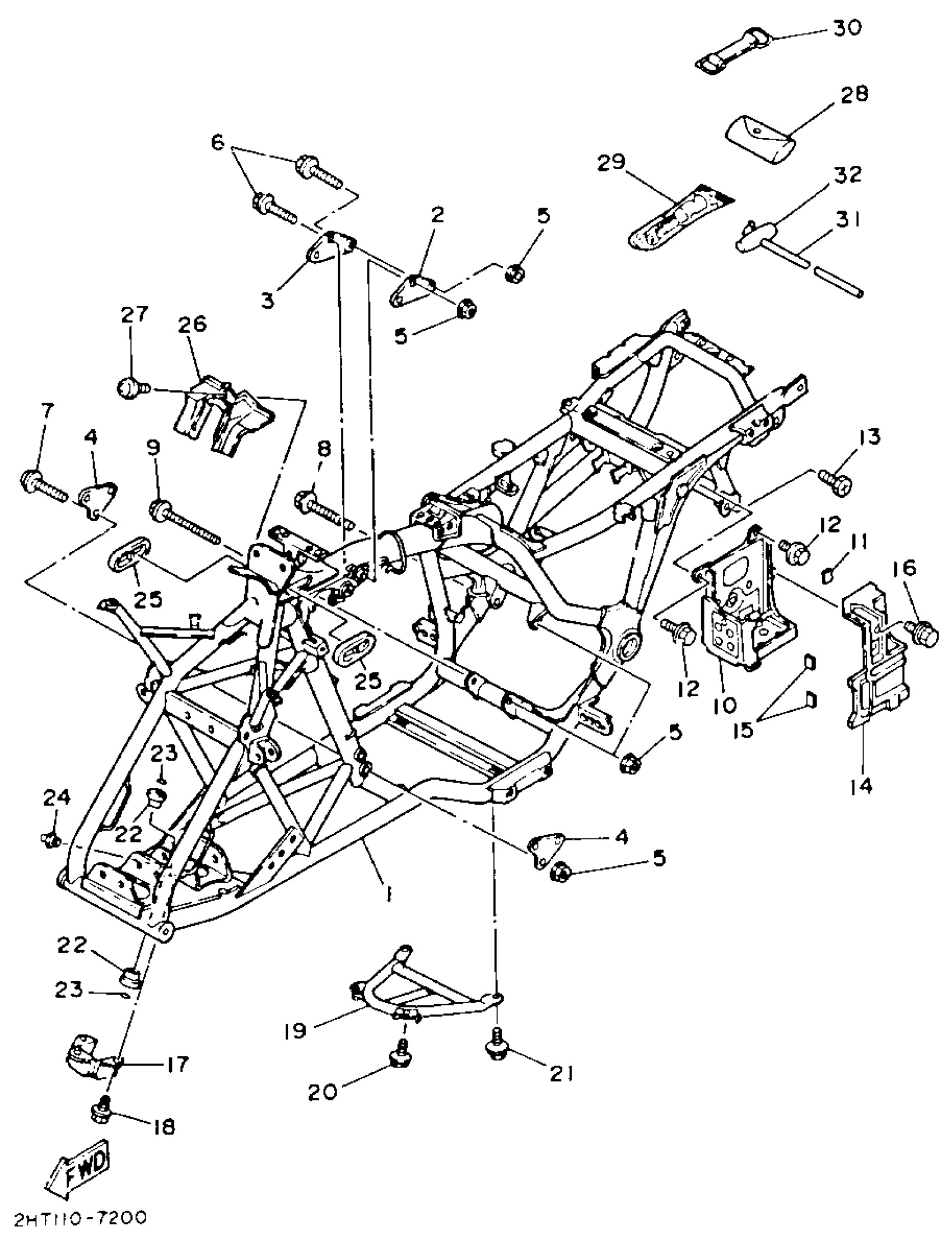

Yamaha YFM225U (MOTO-4) 1988 FRAME Diagram
#
Description
Price
1
FRAME
2HT-21110-00-33
Unavailable
2
STAY, ENGINE 2
29U-21315-00-00
Unavailable
3
STAY, ENGINE 2
59V-21315-00-00
Unavailable
4
STAY, ENGINE 3
59V-21316-00-00
Unavailable
9
BOLT, FLANGE(4BD)
95817-08105-00
Unavailable
10
BOX
59V-21170-00-00
Unavailable
11
COVER 2
3FC-2139R-00-00
Unavailable
14
BOX
24W-21245-00-00
Unavailable
15
COVER 2
3FC-2139R-00-00
Unavailable
16
BOLT, WITH WASHER
90119-06152-00
Unavailable
17
GUARD, ENGINE 1
59V-2147A-00-00
Unavailable
19
PROTECTOR, ENGINE
2HT-21471-00-00
Unavailable
20
BOLT, FLANGE
95817-08012-00
Unavailable
22
BUSH, SOLID (J22)
90381-15040-00
Unavailable
23
O-RING (22U)
93210-15566-00
Unavailable
24
NIPPLE, GREASE
93700-06M03-00
Unavailable
25
GUIDE, AIR
52H-2137Y-00-00
Unavailable
26
COVER
59V-2117F-01-00
Unavailable
27
SCREW, WITH WASHER(52W)
90159-05121-00
Unavailable
28
TOOL KIT
3GH-28100-00-00
Unavailable
29
GAUGE, AIR
1NV-2811A-01-00
Unavailable
30
BAND, TOOL
21V-21376-00-00
Unavailable
31
ROPE
59V-15781-00-00
Unavailable
32
HANDLE, STARTER
646-15755-02-00
Unavailable
