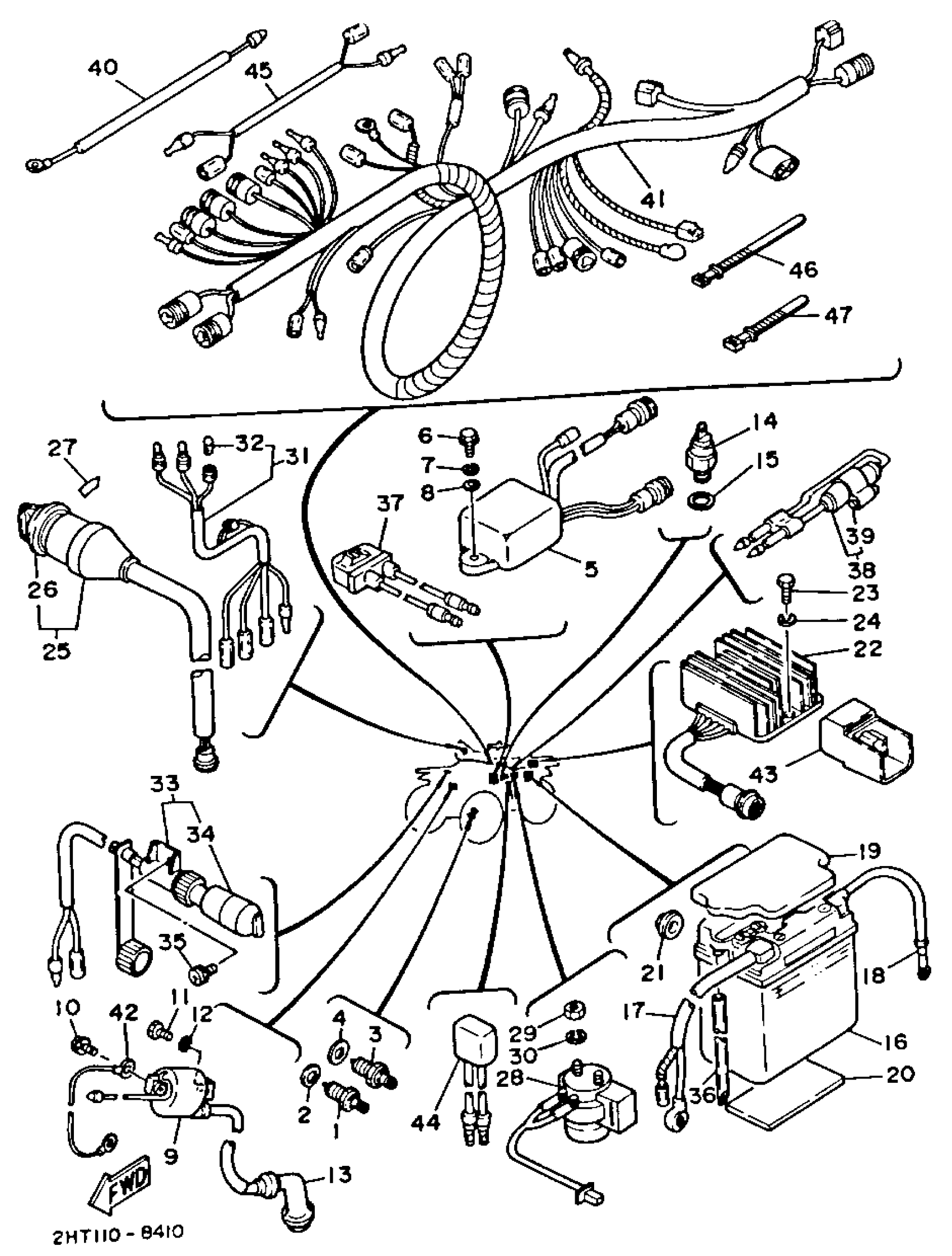

Yamaha YFM225U (MOTO-4) 1988 ELECTRICAL 1 Diagram
#
5
CDI UNIT ASSEMBLY
59V-85540-21-00
Unavailable
12
WASHER, SPRING
92995-06100-00
Unavailable
14
THERMO SWITCH ASSY
2HT-82560-10-00
Unavailable
16
CB14-A2 GS BATTERY
CB1-4A200-00-00
Unavailable
17
WIRE, PLUS LEAD
29U-82115-00-00
Unavailable
18
WIRE, MINUS LEAD
29U-82116-00-00
Unavailable
19
COVER, BATTERY
24W-82129-00-00
Unavailable
20
SEAT, BATTERY
5Y1-82122-00-00
Unavailable
21
PAD, BATTERY
371-82121-00-00
Unavailable
22
RECTIFIER & REGULATOR ASSEMBLY
59V-81960-A0-00
Unavailable
24
WASHER, PLAIN (646)
92990-06600-00
Unavailable
25
MAIN SWITCH ASSY
2FJ-82510-09-00
Unavailable
26
CAP, KEY
24W-82579-00-00
Unavailable
27
LABEL
29U-83585-10-00
Unavailable
28
STARTER RELAY ASSY (MS5D-611)
4KD-81940-00-00
Unavailable
29
NUT(650)
95380-06700-00
Unavailable
30
WASHER, SPRING
92995-06100-00
Unavailable
31
PILOT LIGHT ASSEMBLY
2HT-83530-00-00
Unavailable
32
BULB, MTR.12V3.4W
4G1-84744-00-XX
Unavailable
33
TERMINAL ASSY
59V-81920-00-00
Unavailable
34
COVER
59V-81942-00-00
Unavailable
35
SCREW, WITH WASHER (1T4/2F3)
90159-05018-00
Unavailable
36
PIPE, BREATHER
3L5-82112-00-00
Unavailable
37
CIRCUIT BREAKER ASSEMBLY
59V-82180-00-00
Unavailable
38
FUSE HOLDER ASSY
2NL-82150-00-00
Unavailable
39
FUSE (12V 30A)
2H7-82151-00-00
Unavailable
40
WIRE, LEAD
2JX-82541-00-00
Unavailable
41
. WIRE HARNESS ASSEMBLY
2HT-82590-10-00
Unavailable
41
. SOCKET
59V-84312-10-00
Unavailable
41
WIRE HARNESS ASSEMBLY (2HT-82590-01-00)
99999-01906-00
Unavailable
42
WIRE, MINUS LEAD
89H-82116-00-00
Unavailable
43
RELAY ASSY
12R-81950-02-00
Unavailable
44
CHECKER, PILOT LAMP
38W-85774-00-00
Unavailable
45
WIRE, LEAD
59V-82541-00-00
Unavailable
46
BAND, SWITCH CORD
437-83936-01-00
Unavailable
47
BAND, SWITCH CORD
437-83936-11-00
Unavailable
