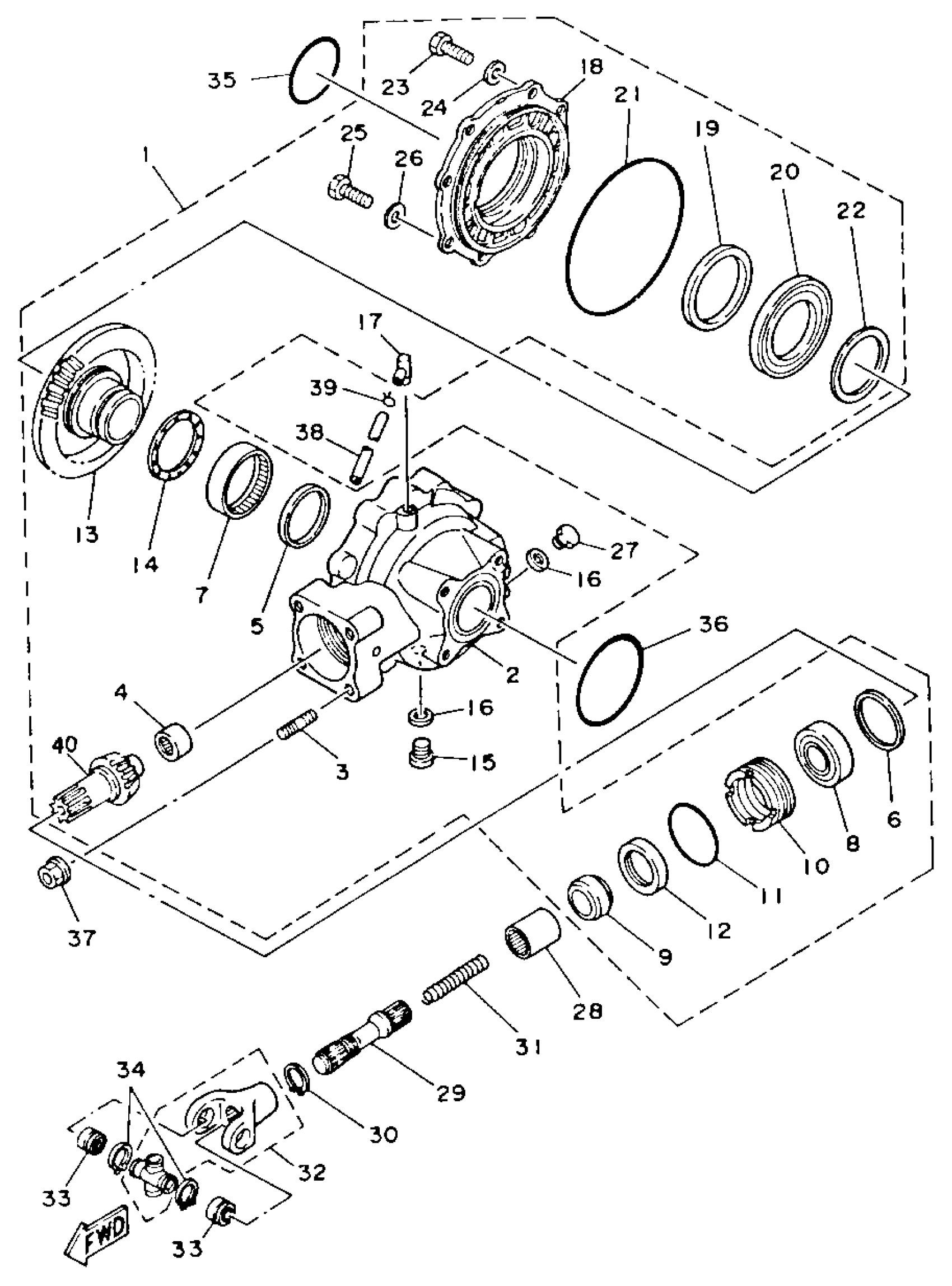

Yamaha YFM225U (MOTO-4) 1988 DRIVE SHAFT Diagram
#
1
RR AXLE GR CASE ASSEMBLY
2HT-46101-00-00
Unavailable
2
. HOUSING, DRIVE SHAFT
2HT-46151-00-00
Unavailable
3
BOLT, STUD (5E5)
90116-10361-00
Unavailable
4
. BEARING ASSY
24W-46102-00-00
Unavailable
7
. BEARING, CYLINDER17
93317-55542-00
Unavailable
8
BEARING(3RR)
93306-30560-00
Unavailable
9
COLLAR (24W)
90387-255H9-00
Unavailable
13
. RING GEAR ASSEMBLY
59V-46110-01-00
Unavailable
14
WASHER, THRUST
24W-46118-00-12
Unavailable
14
WASHER, THRUST
24W-46118-00-14
Unavailable
14
WASHER, THRUST
24W-46118-00-16
Unavailable
14
WASHER, THRUST
24W-46118-00-18
Unavailable
14
WASHER, THRUST
24W-46118-00-20
Unavailable
15
PLUG, STRAIGHT SCREW
90340-14002-00
Unavailable
16
GASKET
214-11198-01-00
Unavailable
17
BREATHER
5UG-15371-00-00
Unavailable
18
HOUSING,BEARING
2HT-46152-00-00
Unavailable
19
OIL SEAL (22U)
93102-65277-00
Unavailable
20
BEARING, CYLINDRICAL (22U)
93316-01301-00
Unavailable
21
O-RING(59V)
93211-54698-00
Unavailable
22
. SHIM, RING GEAR (025T)
24W-46117-00-25
Unavailable
22
. SHIM, RING GEAR (040T)
24W-46117-00-40
Unavailable
22
. SHIM, RING GEAR (050T)
24W-46117-00-50
Unavailable
23
BOLT (682)
97013-08025-00
Unavailable
24
.. WASHER, PLATE
92990-08600-00
Unavailable
25
BOLT(6TD)
97017-10025-00
Unavailable
26
WASHER, PLATE
92990-10600-00
Unavailable
27
. PLUG, STRAIGHT SCREW
90340-14054-00
Unavailable
28
COUPLING, GEAR
2HR-46123-00-00
Unavailable
29
SHAFT, DRIVE
3GH-46172-00-00
Unavailable
30
CIRCLIP (537)
93410-22039-00
Unavailable
31
SPRING, COMPRESSION
90501-165E3-00
Unavailable
32
CROSS JOINT COMP.
4X7-46180-00-00
Unavailable
33
BEARING(2HR)
93399-99926-00
Unavailable
34
CIRCLIP (4X7)
93440-20088-00
Unavailable
35
O-RING
93210-65705-00
Unavailable
36
O-RING(59V)
93210-85706-00
Unavailable
37
NUT, FLANGE(3BM)
95704-10500-00
Unavailable
38
HOSE (L1700)
90445-070G6-00
Unavailable
39
CLIP (1J7)
90467-07029-00
Unavailable
40
GEAR, DRIVE PINION
2HT-46121-00-00
Unavailable
