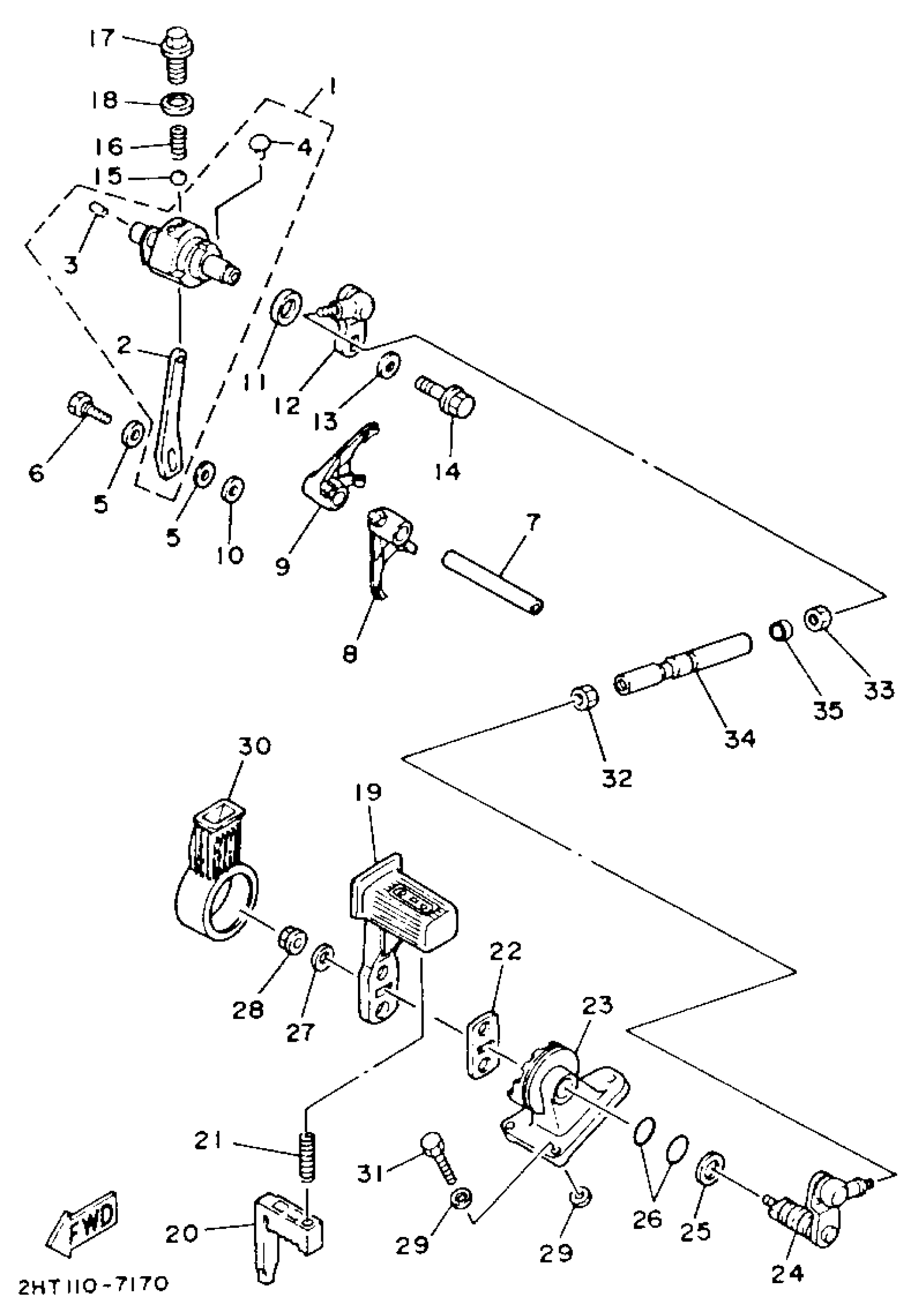

Yamaha YFM225U (MOTO-4) 1988 DRIVE SELECTOR Diagram
#
Description
Price
1
SHIFTER ASSEMBLY
59V-18420-00-00
Unavailable
2
. STOPPER, SHIFT BAR
59V-18536-00-00
Unavailable
6
BOLT, STOPPER
59V-18177-00-00
Unavailable
7
BAR, SHIFT FORK GD 1
1HX-18531-00-00
Unavailable
8
FORK, SHIFT 1
59V-18311-00-00
Unavailable
9
FORK, SHIFT 2
59V-18312-00-00
Unavailable
12
LINK 2
2HT-18345-00-00
Unavailable
16
SPRING, COMPRESSION(59V)
90501-147A6-00
Unavailable
17
BOLT, WASHER BASED(59V)
90105-14367-00
Unavailable
18
GASKET(59V)
90430-14194-00
Unavailable
19
LEVER, SHIFT 3
59V-18150-00-00
Unavailable
20
KNOB, SHIFT LEVER
59V-18174-00-00
Unavailable
21
SPRING, COMPRESSION(52G)
90501-101A7-00
Unavailable
22
PLATE, SIDE 1
59V-18561-00-00
Unavailable
23
GUIDE, SHIFT RETURN SPRING
59V-18153-01-00
Unavailable
24
SHAFT, RINK
2HT-18341-00-00
Unavailable
25
WASHER, PLATE(52G)
90201-144J2-00
Unavailable
26
O-RING (611)
93210-10096-00
Unavailable
28
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
29
WASHER, PLATE(4BD)
90201-067P3-00
Unavailable
30
COVER, SHIFT SPRING
59V-18433-00-00
Unavailable
31
BOLT,SOCKET
91317-06025-00
Unavailable
32
NUT(6TA)
95337-08600-00
Unavailable
33
NUT
90170-08261-00
Unavailable
34
JOINT, ROD 1
59V-18116-01-00
Unavailable
35
COLLAR
90387-106M9-00
Unavailable
