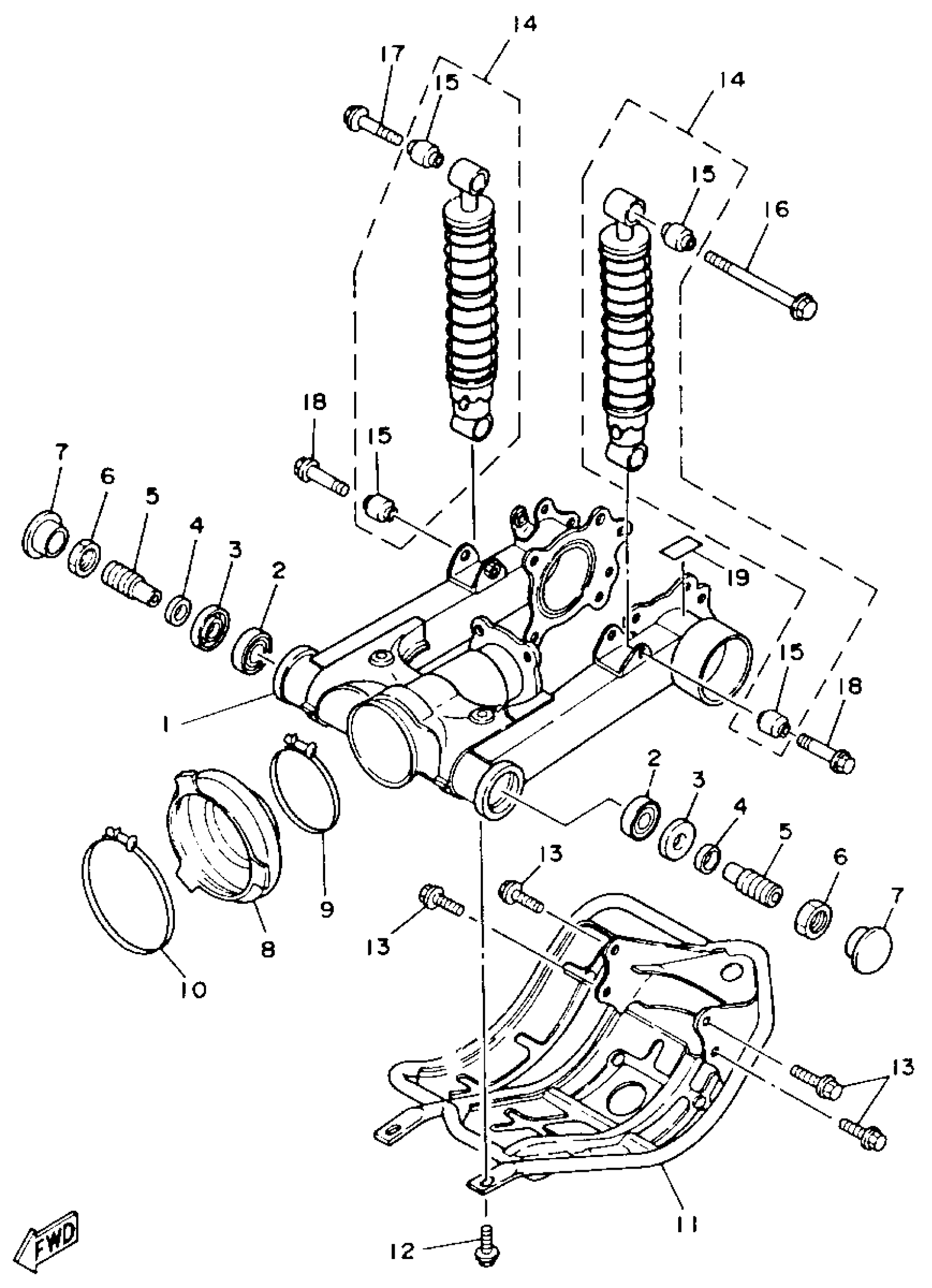

Yamaha YFM225T (MOTO-4) 1987 SWING ARM REAR SHOCKS Diagram

REAR ARM

2HT-22110-00-33

Unavailable

BRG,CYL-CAL ROLLER 74G KY

93332-00010-00

$47.99

OIL SEAL (25X40X5-101)

93102-25017-00

$5.60

COLLAR

90387-17011-00

$15.99

SHAFT, PIVOT

4WV-22141-00-00

$31.99

NUT, PIVOT SHAFT

1J7-22143-00-00

$23.99

PLUG (1J7)

90338-34069-00

Unavailable

BOOT, RUBBER (1YW-22189-00-00)

59V-22189-00-00

Unavailable

CLAMP, HOSE(59V)

90460-85277-00

$16.99

HOSE CLAMP ASSY(2HR)

90450-99013-00

$17.99

COVER

59V-2219X-00-00

Unavailable

BOLT, FLANGE

95817-08012-00

$5.49

BOLT, FLANGE(3HP)

95817-10016-00

$8.49

SHK/ABS ASSEMBLY, REAR ASSEMBLY

59V-22210-01-26

Unavailable

BUSH, REAR SHOCK ABSORBER

59V-22216-00-00

Unavailable

BOLT, WASHER BASED(59V)

90105-10392-00

Unavailable

BOLT, WASHER BASED(59V)

90105-10388-00

Unavailable

BOLT, WASHER BASED(59V)

90105-10388-00

Unavailable

LABEL, OIL CAUTION

4H7-46181-10-00

Unavailable
