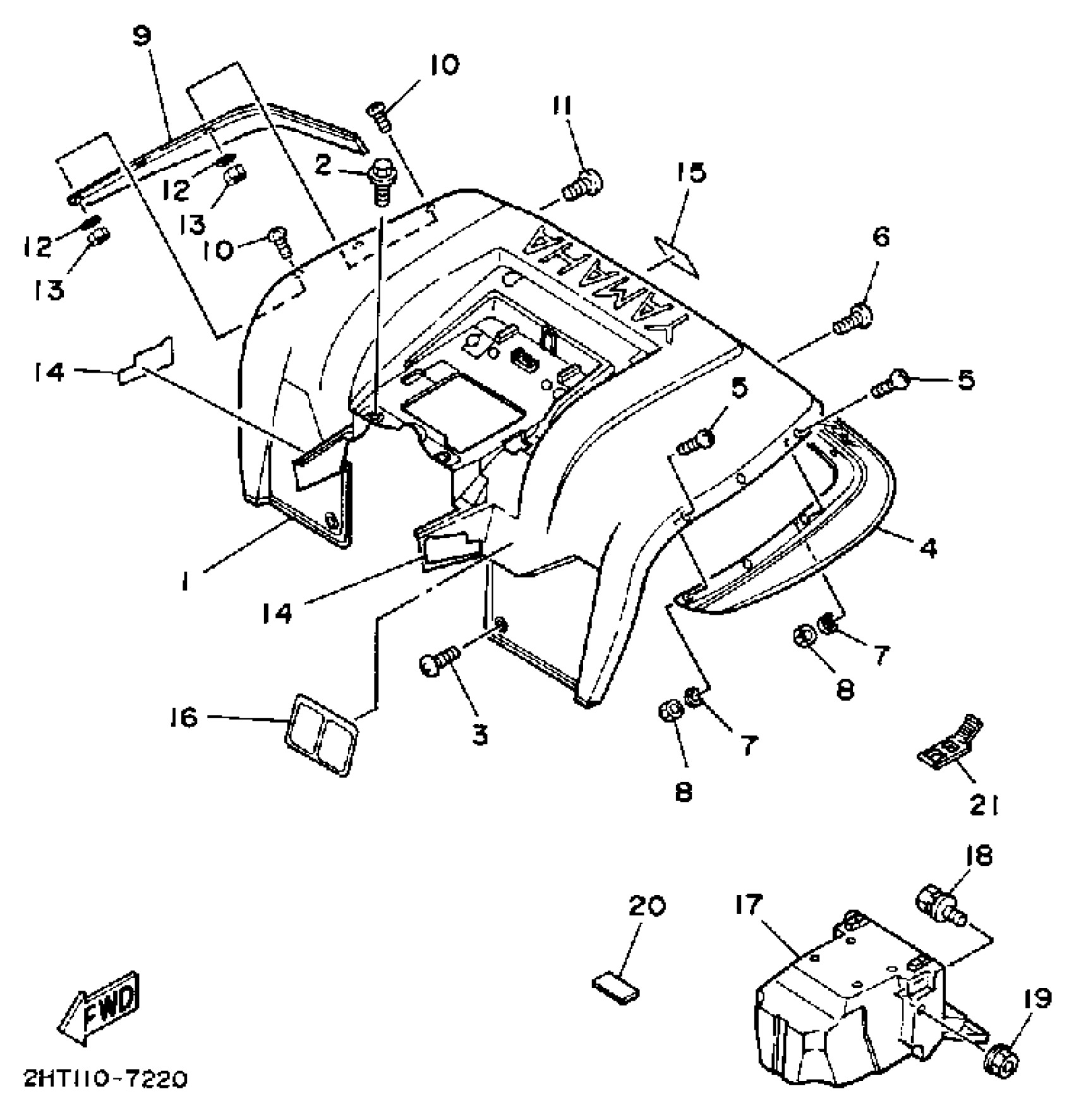

Yamaha YFM225T (MOTO-4) 1987 REAR FENDER Diagram

#

Description
Price

1

FENDER-REAR

4UH-21611-40-00

Unavailable

1

FENDER,REAR

4UH-21611-E0-00

Unavailable

2

BOLT, WITH WASHER

90119-06152-00

$7.49

3

SCREW, BINDING(3XV)

90154-05059-00

$9.49

4

FLAP

2HR-21621-00-00

Unavailable

5

SCREW, BINDING(3XV)

90154-05059-00

$9.49

6

SCREW, BINDING (8G6)

90154-05002-00

$10.49

7

WASHER, PLATE 8067717800

90201-05029-00

$8.49

8

NUT, NYLON

95707-05300-00

$4.24

9

FLAP

2HR-21691-00-00

Unavailable

10

SCREW, BINDING(3XV)

90154-05059-00

$9.49

11

SCREW, BINDING (8G6)

90154-05002-00

$10.49

12

WASHER, PLATE 8067717800

90201-05029-00

$8.49

13

NUT, NYLON

95707-05300-00

$4.24

14

EMBLEM 1

59V-2163G-00-00

Unavailable

15

LABEL

1YW-2178A-00-00

Unavailable

16

LABEL, OIL

59V-2178A-00-00

Unavailable

17

BOX CMPLT

2HT-2160A-00-00

Unavailable

18

BOLT, WITH WASHER

90119-06226-00

Unavailable

19

NUT, W/ WASHER

95707-06600-00

Unavailable

20

DAMPER

1YW-21638-00-00

Unavailable

21

BAND

59V-21646-00-00

Unavailable
