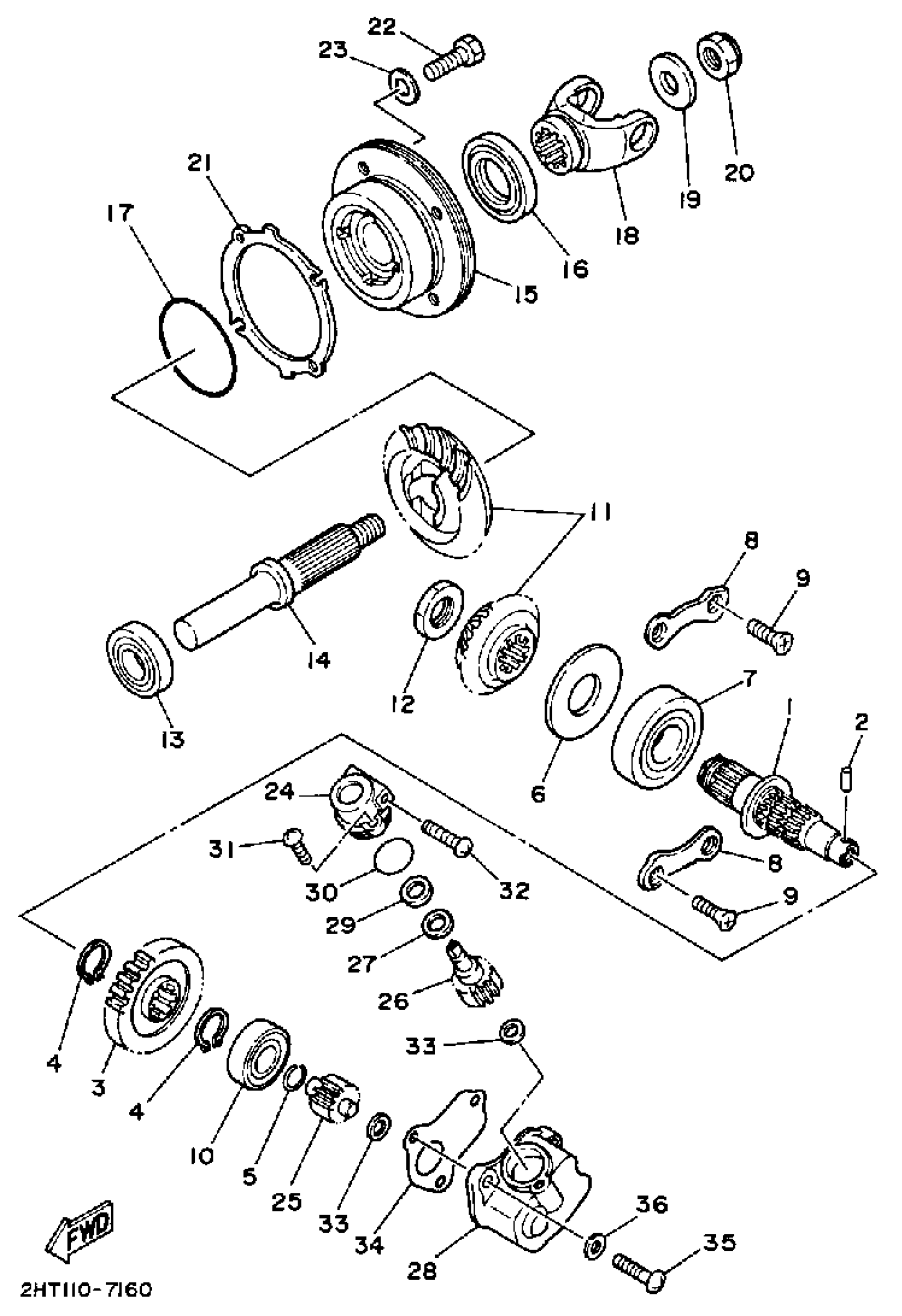

Yamaha YFM225T (MOTO-4) 1987 MIDDLE DRIVE GEAR Diagram
#
1
SHAFT
(2HT-17523-00-00)
Unavailable
2
PIN, DOWEL (5X4)
93603-14179-00
Unavailable
3
GEAR, MIDDLE DRIVE
59V-17582-00-00
Unavailable
5
CIRCLIP(59V)
93440-14155-00
Unavailable
7
BEARING(3RR)
93306-30560-00
Unavailable
11
MIDDLE GEAR
2HT-W1751-00-00
Unavailable
14
SHAFT, MDL DRIVEN
2HT-17553-00-00
Unavailable
15
HOUSING
2HT-W1752-00-00
Unavailable
16
OIL SEAL (4H7)
93101-35097-00
Unavailable
17
O-RING
93210-626A7-00
Unavailable
18
YOKE, JOINT
2HT-17556-00-00
Unavailable
19
WASHER, PLATE (1J7)
90201-14633-00
Unavailable
20
NUT, SELF-LOCKING (1J7)
90185-14070-00
Unavailable
21
SHIM, PINION (0.1T)
59V-17531-00-00
Unavailable
21
SHIM, PINION (0.15T)
59V-17531-10-00
Unavailable
21
SHIM, PINION (0.2T)
59V-17531-20-00
Unavailable
21
SHIM, PINION (0.3T)
59V-17531-30-00
Unavailable
21
SHIM, PINION (0.4T)
59V-17531-40-00
Unavailable
21
SHIM, PINION (0.5T)
59V-17531-50-00
Unavailable
21
SHIM, PINION (1.0T)
59V-17531-60-00
Unavailable
22
BOLT, HEXAGON
97017-08030-00
Unavailable
23
.. WASHER, PLATE
92990-08600-00
Unavailable
24
HOUSING, TACH. GEAR
2HT-17811-00-00
Unavailable
25
GEAR, DRIVE
59V-17831-00-00
Unavailable
26
GEAR, DRIVEN
59V-17841-00-00
Unavailable
27
WASHER (692)
90201-12M34-00
Unavailable
28
COVER, OIL PUMP
2HT-15416-00-00
Unavailable
29
OIL SEAL (30X)
93102-08307-00
Unavailable
30
O-RING(59V)
93210-24253-00
Unavailable
31
SCREW, PAN
98507-06014-00
Unavailable
32
SCREW, PAN HEAD(6E0)
97885-06030-00
Unavailable
33
WASHER (8A7)
90201-08452-00
Unavailable
34
GASKET, CARB COVER
59V-15453-02-00
Unavailable
35
SCREW, PAN HEAD (76T)
98517-06025-00
Unavailable
36
WASHER, PLATE (J22)
90201-063F3-00
Unavailable
