Description

Price

1

. FUEL TANK

2HT-24110-00-00

Unavailable

2

CAP ASSY

5MV-24610-00-00

$58.99

3

FUEL COCK ASSY 1

21V-24500-20-00

$51.99

4

O-RING

4X8-24534-00-00

$13.49

5

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

6

O-RING

4X8-24512-00-00

$8.99

7

WASHER, PLATE(3MB)

90202-05187-00

$1.38

8

SCREW 256241430000

90149-06011-00

$5.60

9

GROMMET(4AA)

90480-18549-00

$10.49

10

COLLAR 849833160000

90387-06027-00

$8.49

11

WASHER, PLATE (J10)

90201-06697-00

$8.49

12

BOLT, WITH WASHER (24X)

90119-06073-00

$8.49

13

BAND, TANK FITTING 1

59V-24173-00-00

$18.49

14

DAMPER, LOCATING 1

29U-24181-00-00

Unavailable

15

HOSE (L120)

90445-113E8-00

$3.61

16

CLIP

90467-100A1-00

Unavailable

17

HOSE (L1500)

90445-090F6-00

Unavailable

18

PATCH 1

8V7-21961-00-00

Unavailable

19

DAMPER, LOCATING 1

59V-24181-00-00

Unavailable

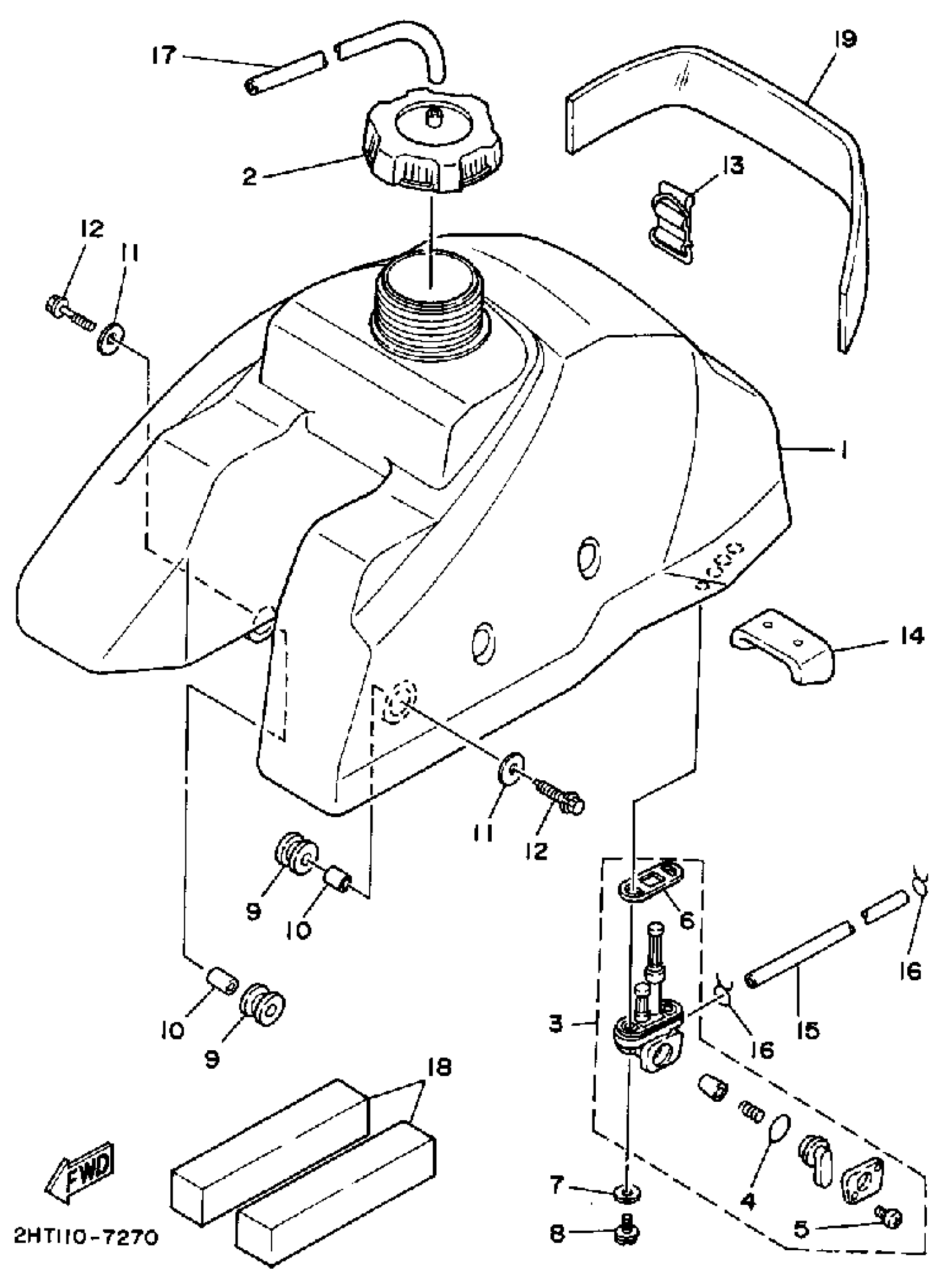

Yamaha YFM225T (MOTO-4) 1987 FUEL TANK Diagram

. FUEL TANK

CAP ASSY

FUEL COCK ASSY 1

O-RING

SCREW, PAN HEAD (J10)

O-RING

WASHER, PLATE(3MB)

SCREW 256241430000

GROMMET(4AA)

COLLAR 849833160000

WASHER, PLATE (J10)

BOLT, WITH WASHER (24X)

BAND, TANK FITTING 1

DAMPER, LOCATING 1

HOSE (L120)

CLIP

HOSE (L1500)

PATCH 1

DAMPER, LOCATING 1
