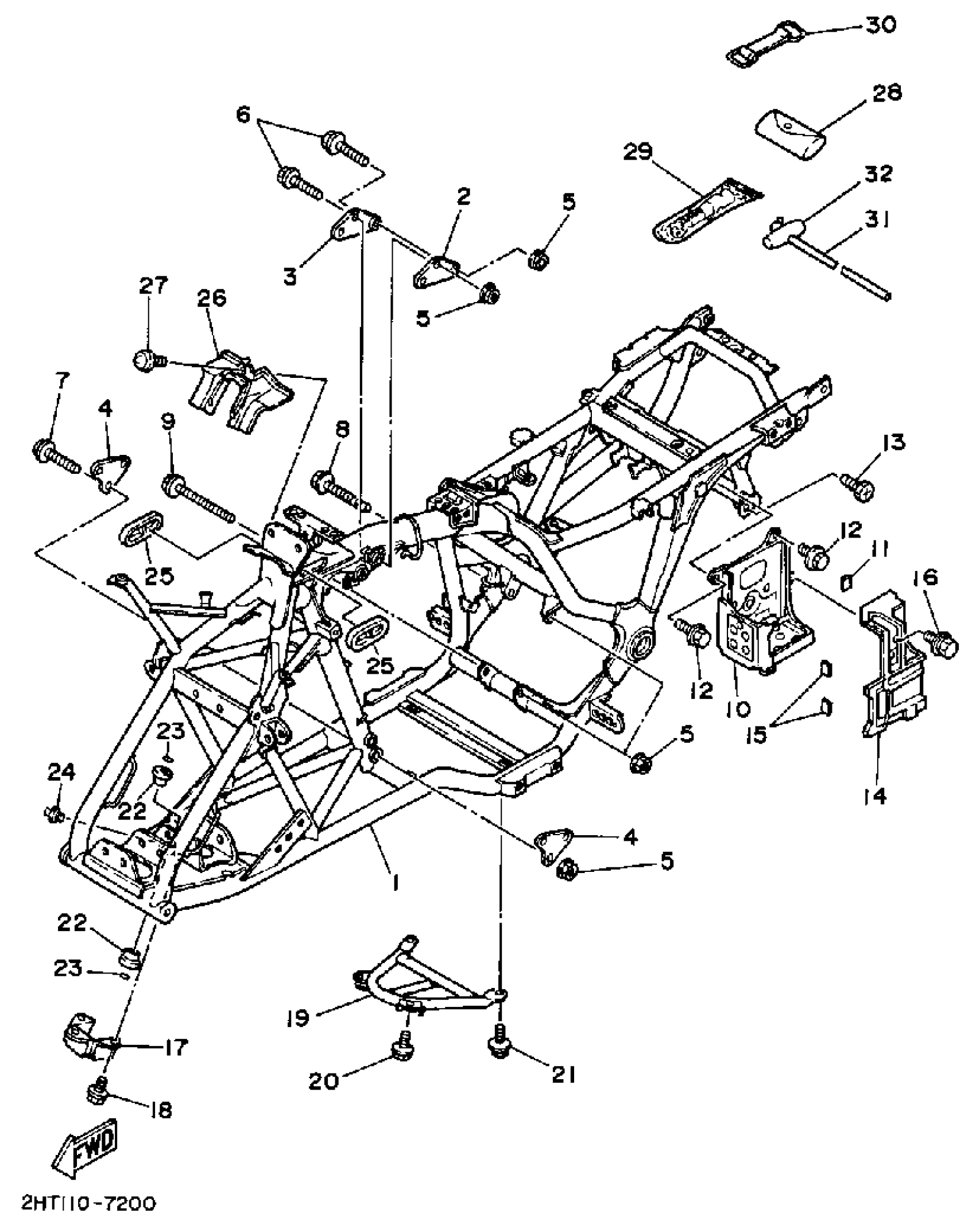

Yamaha YFM225T (MOTO-4) 1987 FRAME Diagram

#

Description
Price

1

FRAME

2HT-21110-00-33

Unavailable

2

STAY, ENGINE 2

29U-21315-00-00

Unavailable

3

STAY, ENGINE 2

59V-21315-00-00

Unavailable

4

STAY, ENGINE 3

59V-21316-00-00

Unavailable

5

NUT, SELF-LOCKING

90185-08169-00

$8.49

6

BOLT, FLANGE

95817-08060-00

$3.76

7

BOLT, FLANGE

95814-08065-00

$4.99

8

BOLT, FLANGE

95817-08100-00

$5.60

9

BOLT, FLANGE(4BD)

95817-08105-00

Unavailable

10

BOX

59V-21170-00-00

Unavailable

11

COVER 2

3FC-2139R-00-00

Unavailable

12

BOLT, FLANGE

95817-06012-00

$1.43

13

SCREW (5G3)

90153-06034-00

$7.49

14

BOX

24W-21245-00-00

Unavailable

15

COVER 2

3FC-2139R-00-00

Unavailable

16

BOLT, WITH WASHER

90119-06152-00

Unavailable

17

GUARD, ENGINE 1

59V-2147A-00-00

Unavailable

18

BOLT, FLANGE

95817-06012-00

$1.43

19

PROTECTOR, ENGINE

2HT-21471-00-00

Unavailable

20

BOLT, FLANGE

95817-08012-00

Unavailable

21

BOLT, FLANGE

95817-06012-00

$1.43

22

BUSH, SOLID (J22)

90381-15040-00

Unavailable

23

O-RING (22U)

93210-15566-00

Unavailable

24

NIPPLE, GREASE

93700-06M03-00

Unavailable

25

GUIDE, AIR

52H-2137Y-00-00

Unavailable

26

COVER

59V-2117F-01-00

Unavailable

27

SCREW, WITH WASHER(52W)

90159-05121-00

Unavailable

28

TOOL KIT (24W-28100-00)

59V-28100-00-00

Unavailable

29

GAUGE, AIR

1NV-2811A-01-00

Unavailable

30

BAND, TOOL

21V-21376-00-00

Unavailable

31

ROPE

59V-15781-00-00

Unavailable

32

HANDLE, STARTER

646-15755-02-00

Unavailable
