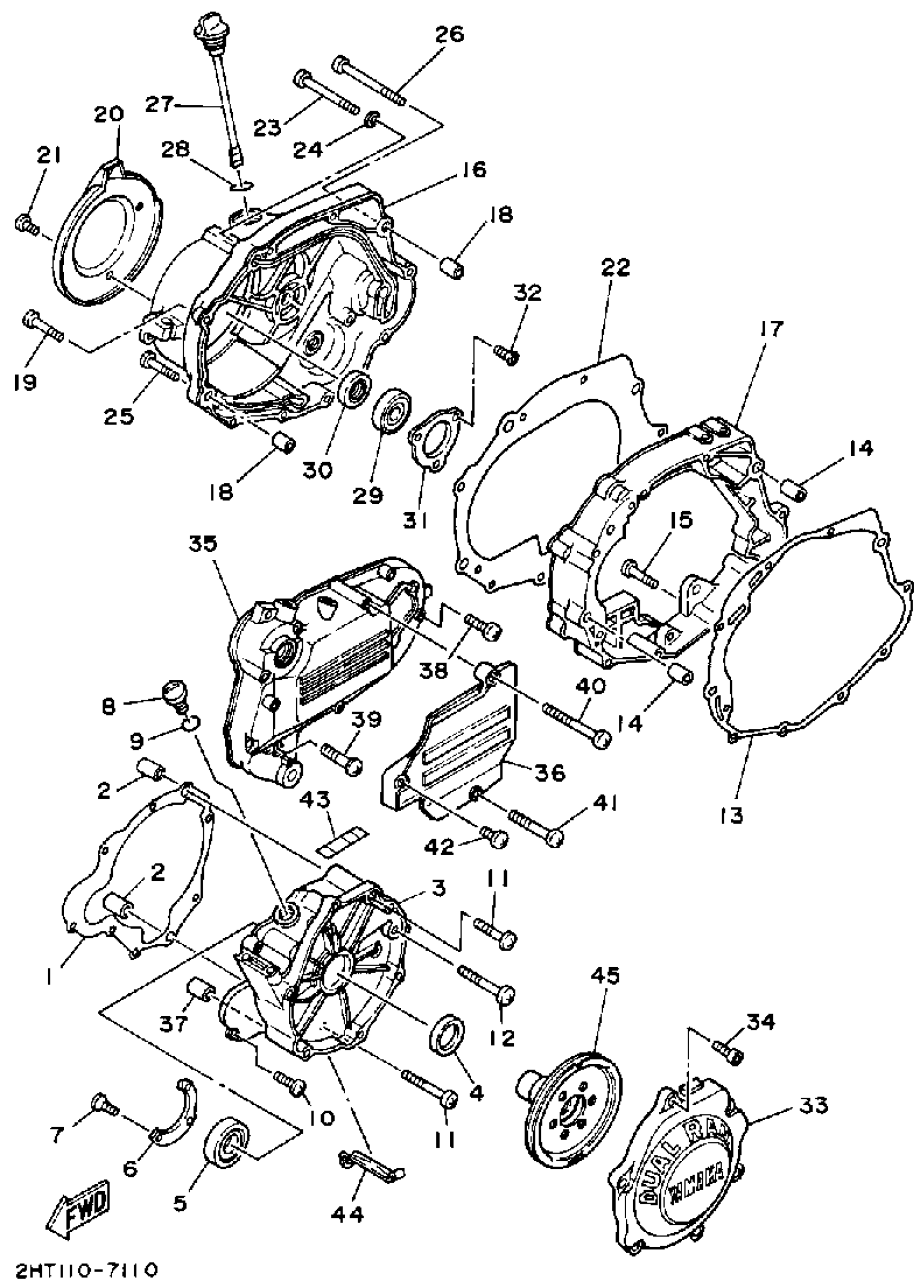

Yamaha YFM225T (MOTO-4) 1987 CRANKCASE COVER Diagram
#
3
PLATE, BEARING COVER
21V-15381-00-00
Unavailable
3
ADAPTOR
59V-15787-01-00
Unavailable
6
WASHER, THRUST
21V-15719-00-00
Unavailable
15
SCREW PAN HEAD
98580-06040-00
Unavailable
16
COVER,CRANKCASE 3
21V-15431-05-00
Unavailable
17
SPACER, ENGINE
21V-15317-01-00
Unavailable
20
PROTECTOR, COVER
21V-15499-00-00
Unavailable
21
SCREW, BINDING
98907-06014-00
Unavailable
22
GASKET, CARBURETOR COVER 2
4BD-15463-01-00
Unavailable
23
SCREW, PAN HEAD
98507-06070-00
Unavailable
24
GASKET 256113960000
90430-06014-00
Unavailable
26
SCREW, PAN
98507-06080-00
Unavailable
27
PLUG, OIL LEVEL
1UY-15362-01-00
Unavailable
28
O-RING (646)
93210-19123-00
Unavailable
29
BEARING(37F)
93306-20335-00
Unavailable
30
OIL SEAL (21V)
93101-17113-00
Unavailable
32
SCREW, FLAT
98707-06018-00
Unavailable
33
CRANKCASE COVER ASSEMBLY L
59V-15410-01-00
Unavailable
34
BOLT,SOCKET
91317-06025-00
Unavailable
35
COVER, CRANKCASE R
59V-15421-00-00
Unavailable
36
PROTECTOR
59V-15491-00-00
Unavailable
38
SCREW, PAN
98517-06030-00
Unavailable
39
SCREW, PAN
98507-06045-00
Unavailable
40
SCREW, PAN
98507-06080-00
Unavailable
41
SCREW, PAN HEAD
(90157-06094-00)
Unavailable
42
SCREW, PAN HEAD(3TJ)
98507-06016-00
Unavailable
43
EMBLEM
59V-15443-00-00
Unavailable
44
PLATE, LOCK
59V-15144-00-00
Unavailable
45
PULLEY, STARTER
59V-15723-00-00
Unavailable
