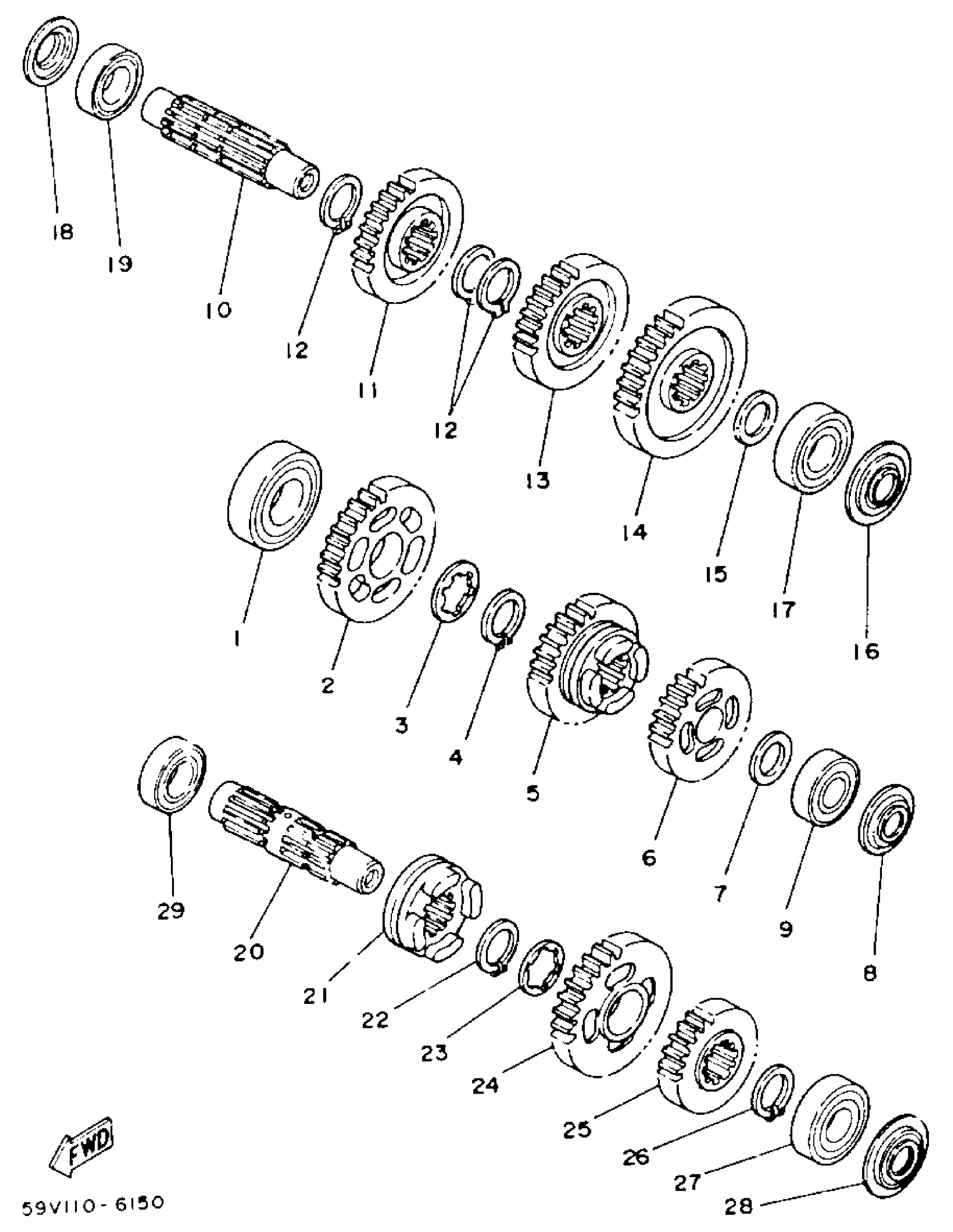

Yamaha YFM225S (MOTO-4) 59V 1986 SUB TRANSMISSION Diagram
#
Description
Price
1
BEARING
93306-27201-00
Unavailable
2
GEAR, HIGH PINION
59V-17123-00-00
Unavailable
5
GEAR, REV. PINION 1
59V-17143-00-00
Unavailable
6
GEAR, LOW PINION
59V-17133-00-00
Unavailable
8
OIL SEAL, SO-TYPE
93104-15092-00
Unavailable
10
AXLE, COUNTER
59V-17431-00-00
Unavailable
11
GEAR, HIGH WHEEL
59V-17223-00-00
Unavailable
13
GEAR, REVERSE WHEEL 2
59V-17253-00-00
Unavailable
14
GEAR, LOW WHEEL
59V-17233-00-00
Unavailable
16
OIL SEAL(59V)
93104-17094-00
Unavailable
17
BRG,R-B 6203RS 40MM 63.3G KY
93306-20310-00
Unavailable
18
OIL SEAL
93104-17093-00
Unavailable
19
BEARING(2JN)
93306-00315-00
Unavailable
20
AXLE, IDLE
59V-17432-00-00
Unavailable
21
CLUTCH, DOG
59V-17285-00-00
Unavailable
24
GEAR, REVERSE WHEEL 1
59V-17243-00-00
Unavailable
25
GEAR, REVERSE PINION 2
59V-17153-00-00
Unavailable
27
BRG,R-B 6203RS 40MM 63.3G KY
93306-20310-00
Unavailable
28
OIL SEAL(59V)
93104-17094-00
Unavailable
29
BEARING(2JN)
93306-00315-00
Unavailable
