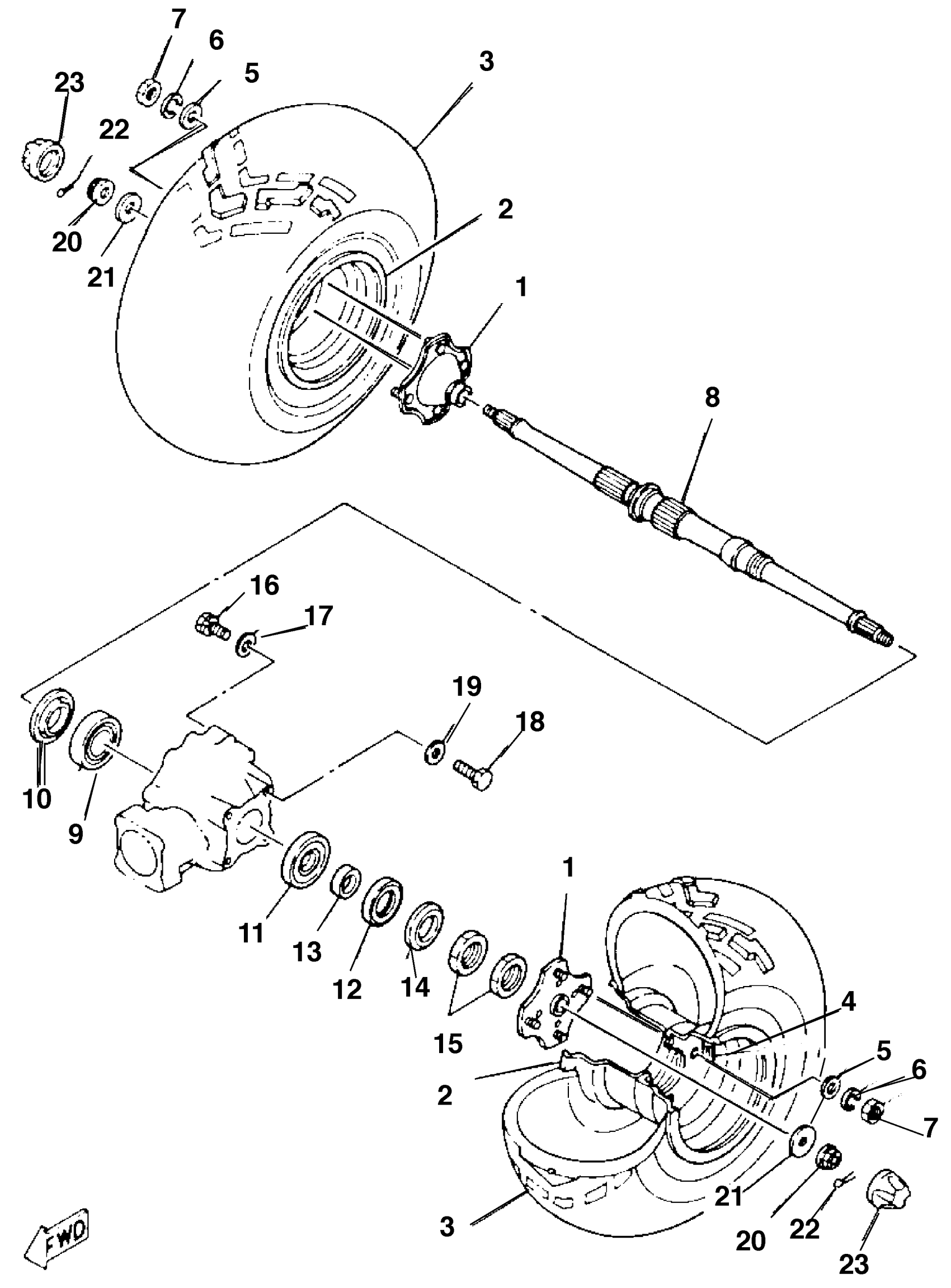

Yamaha YFM225S (MOTO-4) 59V 1986 REAR WHEEL Diagram

#

Description

Price

1

COLLAR, WHEEL

2HT-25383-00-00

Unavailable

2

WHEEL,REAR

2HT-25390-00-4R

Unavailable

3

AT25X12-9* BS DH04B DIRTHOOKS

94112-094W3-00

Unavailable

4

VALVE, RIM(2GH)

93900-00030-00

$16.99

5

WASHER, PLAIN

92990-08200-00

Unavailable

6

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

7

NUT(6L2)

95333-08600-00

$2.49

8

AXLE, WHEEL

2HT-25381-02-00

Unavailable

9

BEARING (24W)

93399-99913-00

Unavailable

10

COVER, HUB DUST

24W-25367-00-00

Unavailable

11

BEARING

93306-00803-00

Unavailable

12

OIL SEAL (21V)

93102-46274-00

Unavailable

13

COLLAR, AXLE

24W-25386-00-00

Unavailable

14

COVER, HUB DUST

21V-25367-00-00

Unavailable

15

NUT, SPECL SHAPE

90179-40419-00

Unavailable

16

BOLT(6TD)

97017-10025-00

Unavailable

17

WASHER, PLATE

92990-10600-00

Unavailable

18

BOLT (8J7)

97013-10030-00

Unavailable

19

WASHER, PLATE

92990-10600-00

Unavailable

20

NUT, CASTLE (29U)

90171-14037-00

Unavailable

21

WASHER, PLATE

90201-144K1-00

Unavailable

22

PIN, COTTER

91490-30030-00

Unavailable

23

CAP, WHEEL

52H-2512A-00-00

Unavailable
