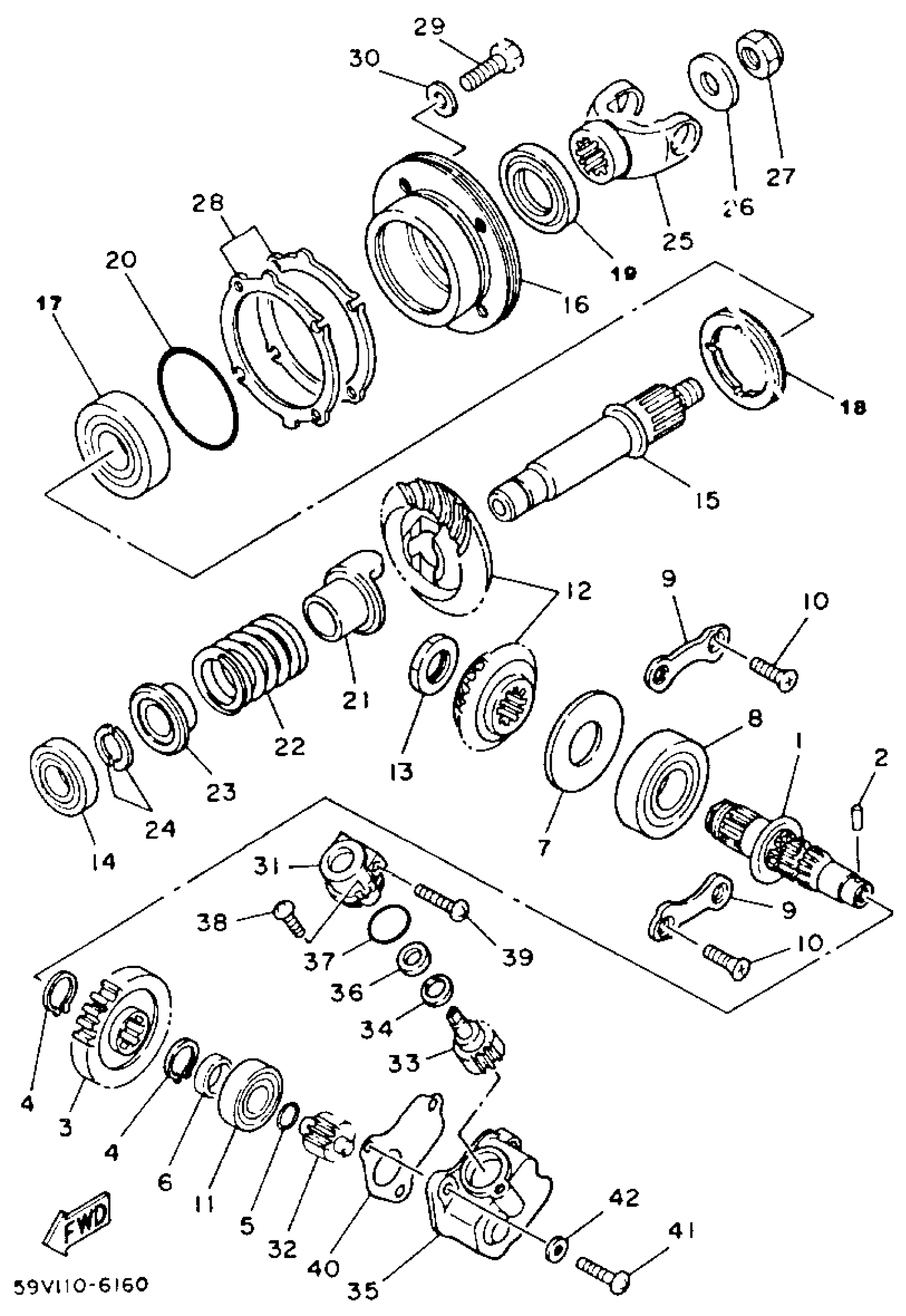

Yamaha YFM225S (MOTO-4) 59V 1986 MIDDLE DRIVE GEAR Diagram
#
1
SHAFT
59V-17523-00-00
Unavailable
2
PIN, DOWEL
93603-13185-00
Unavailable
3
GEAR, MIDDLE DRIVE
59V-17582-00-00
Unavailable
5
CIRCLIP(59V)
93440-14155-00
Unavailable
6
COLLAR
90387-177M4-00
Unavailable
8
BEARING(3RR)
93306-30560-00
Unavailable
12
MIDDLE GEAR COMP
59V-Y1754-00-00
Unavailable
14
BEARING (7K2)
93306-00423-00
Unavailable
15
SHAFT,MDL DRIVEN
22U-17553-01-00
Unavailable
16
HOUSHING COMP.
59V-W1752-02-00
Unavailable
17
BEARING(3RR)
93306-30560-00
Unavailable
18
NUT(59V)
90179-65305-00
Unavailable
19
OIL SEAL (4H7)
93101-35097-00
Unavailable
20
O-RING
93210-626A7-00
Unavailable
21
CAM, DRIVEN
22U-17527-01-00
Unavailable
22
SPRING, COMPRESSION (22U)
90501-60716-00
Unavailable
23
HOLDER
22U-17524-00-00
Unavailable
24
WASHER, THRUST
3H5-17529-00-00
Unavailable
25
YOKE, JOINT
22U-17556-00-00
Unavailable
26
WASHER, PLATE (1J7)
90201-14633-00
Unavailable
27
NUT, SELF-LOCKING (1J7)
90185-14070-00
Unavailable
28
SHIM, PINION (0.1T)
59V-17531-00-00
Unavailable
28
SHIM, PINION (0.2T)
59V-17531-20-00
Unavailable
28
SHIM, PINION (0.2T)
59V-17531-20-00
Unavailable
28
SHIM, PINION (0.3T)
59V-17531-30-00
Unavailable
28
SHIM, PINION (0.4T)
59V-17531-40-00
Unavailable
28
SHIM, PINION (0.4T)
59V-17531-40-00
Unavailable
29
BOLT, HEXAGON
97013-08030-00
Unavailable
30
.. WASHER, PLATE
92990-08600-00
Unavailable
31
HOUSING, TACHOMETER GEAR
59V-17811-00-00
Unavailable
32
GEAR, DRIVE
59V-17831-00-00
Unavailable
33
GEAR, DRIVEN
59V-17841-00-00
Unavailable
34
WASHER (692)
90201-12M34-00
Unavailable
35
COVER, OIL PUMP
2HT-15416-00-00
Unavailable
36
OIL SEAL (30X)
93102-08307-00
Unavailable
37
O-RING(59V)
93210-24253-00
Unavailable
38
SCREW, PAN HEAD(3TJ)
98507-06016-00
Unavailable
39
SCREW, PAN
98517-06030-00
Unavailable
40
GASKET, CARB COVER
59V-15453-02-00
Unavailable
41
SCREW, PAN HEAD (76T)
98517-06025-00
Unavailable
42
WASHER, PLATE (J22)
90201-063F3-00
Unavailable
