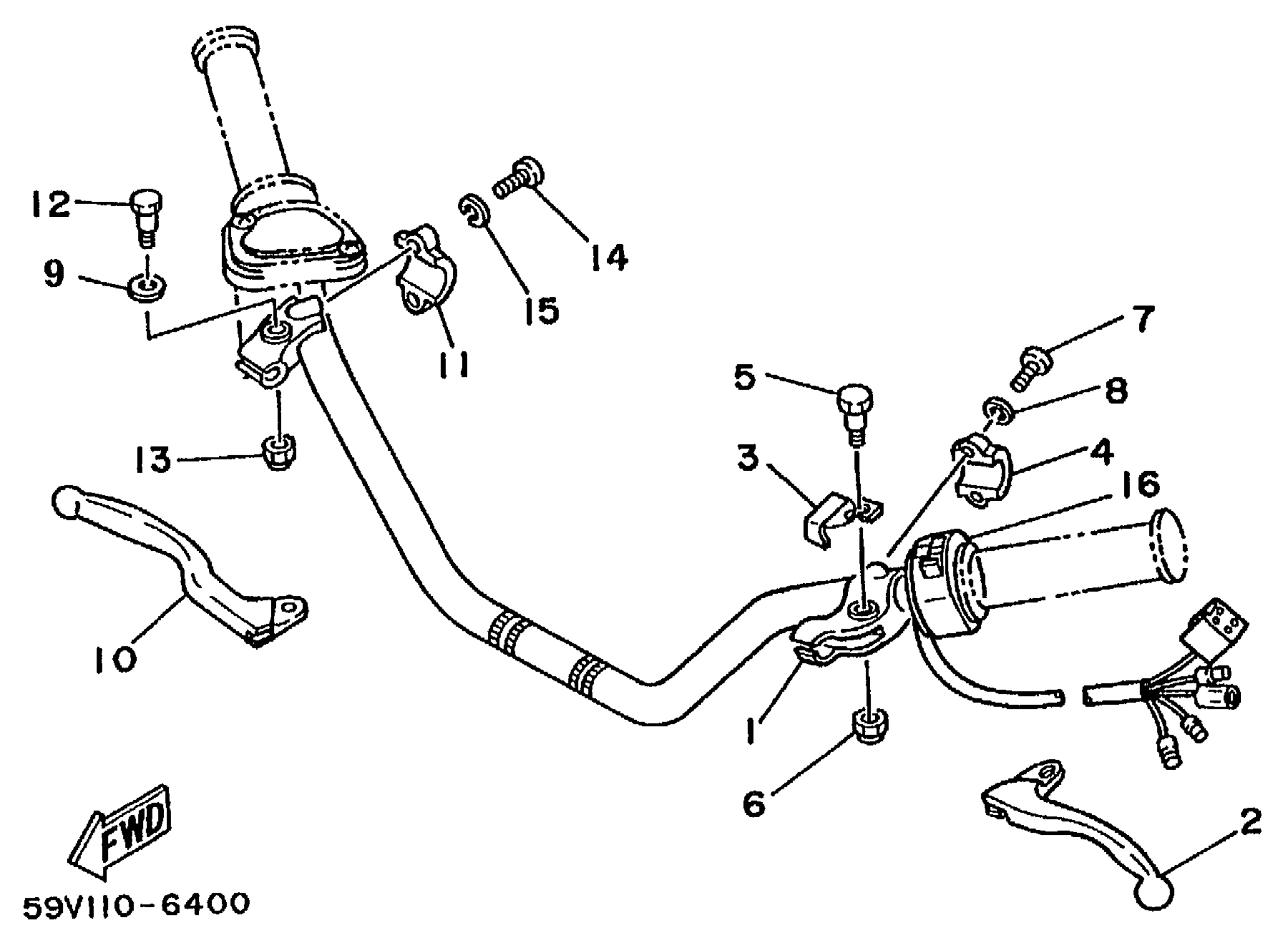

Yamaha YFM225S (MOTO-4) 59V 1986 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

HOLDER SET, LEVER 1

99999-03034-00

$93.99

2

LEVER 1

2HT-83912-01-00

$39.99

3

LEVER, LOCK

1YW-83965-00-00

Unavailable

4

HOLDER, LEVER LOWER

4V4-82913-00-00

Unavailable

5

BOLT(1FG)

90109-06798-00

$8.49

6

NUT, SELF-LOCKING

95617-06100-00

$8.49

7

SCREW, PAN HEAD(4MY)

98507-05018-00

$3.28

8

WASHER(3SX)

92907-05100-00

$8.49

9

HOLDER, LEVER 2

1NU-82921-00-00

Unavailable

10

LEVER 2

59V-83922-00-00

$39.99

11

HOLDER, LEVER LOWER

4V4-82913-00-00

Unavailable

12

BOLT

90109-06798-00-

Unavailable

13

NUT, SELF-LOCKING

95617-06100-00

$8.49

14

SCREW, PAN HEAD

98517-05020-00

$4.25

15

WASHER(3SX)

92907-05100-00

$8.49

16

SWITCH, HANDLE 3

59V-83973-09-00

Unavailable
