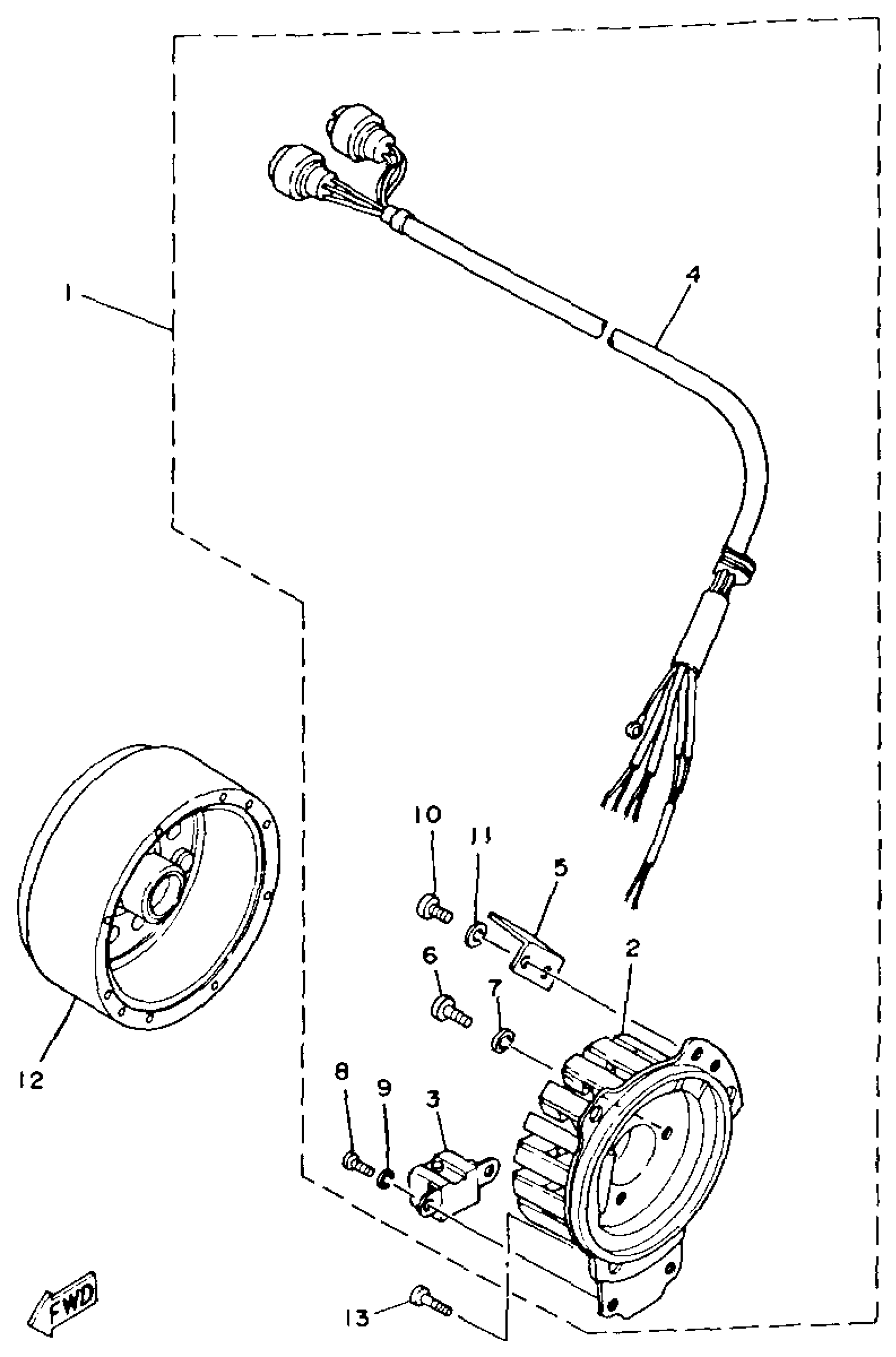

Yamaha YFM225S (MOTO-4) 59V 1986 GENERATOR Diagram

#

Description

Price

1

STATOR ASSEMBLY

59V-85510-20-00

Unavailable

2

. COIL ASSEMBLY

59V-85521-20-00

Unavailable

3

COIL,PULSER

59V-85580-20-00

Unavailable

4

. LEAD WIRE ASSEMBLY

59V-85515-20-00

Unavailable

5

. COVER

21V-85525-00-00

Unavailable

6

SCREW, PANHEAD (A93)

98580-05525-00

$2.00

7

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

8

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

9

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

10

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

11

WASHER, PLAIN (646)

92990-04600-00

$5.99

12

ROTOR ASSEMBLY

59V-85550-22-00

Unavailable

13

SCREW, PAN

98507-06014-00

$8.49
