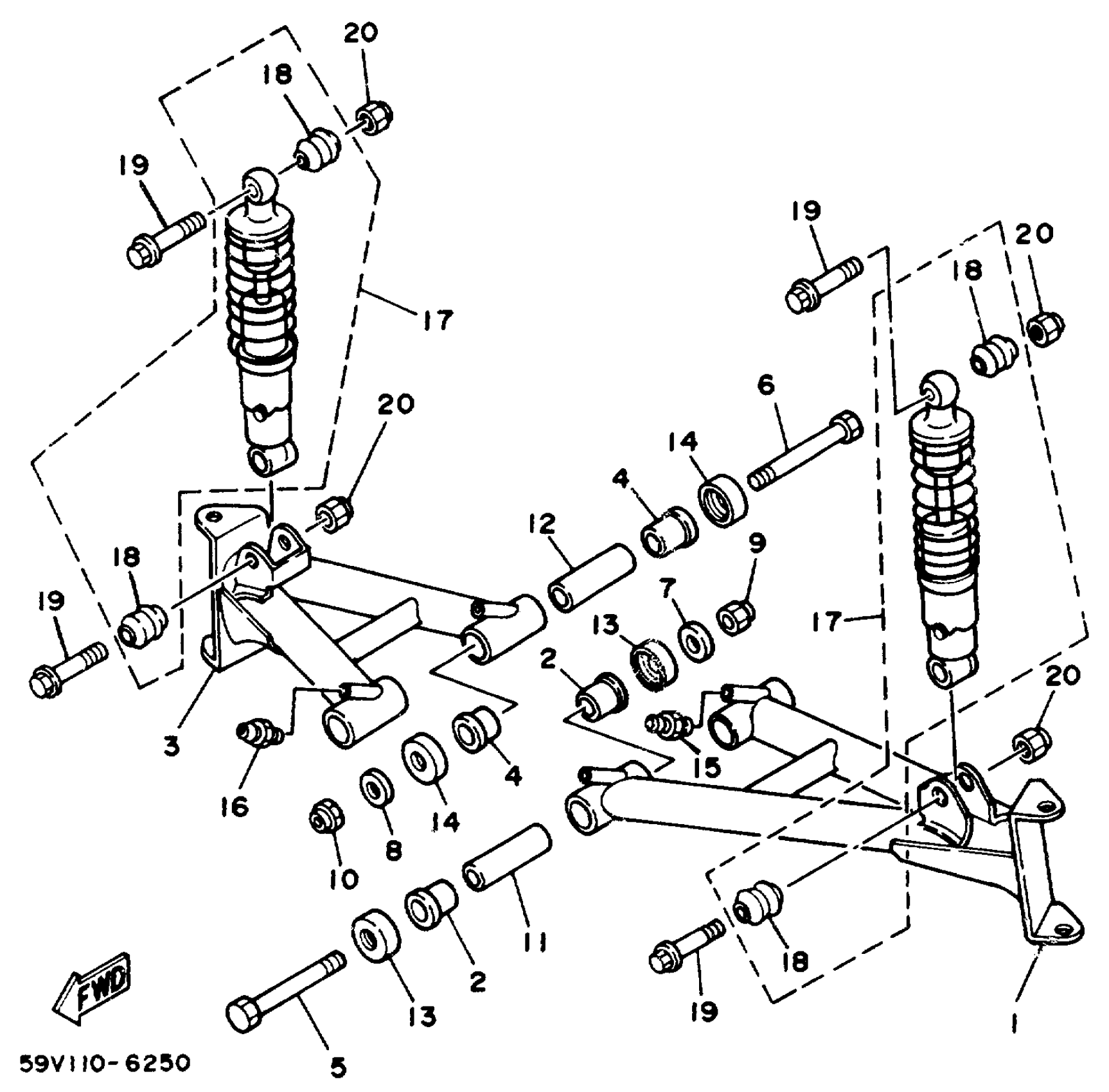

Yamaha YFM225S (MOTO-4) 59V 1986 FRONT SUSPENSION Diagram

#

Description
Price

1

FRONT LOWER ARM COMPLETE (LT)

2HT-23570-00-00

Unavailable

2

BUSH 1

15A-22123-00-00

$24.92

3

FRONT LOWER ARM COMPLETE R.H. (59V-23580-00)

2HT-23580-00-00

Unavailable

4

BUSH 1

15A-22123-00-00

$24.92

5

BOLT

90109-10739-00

Unavailable

6

BOLT

90109-10739-00

Unavailable

7

WASHER, PLATE (35T)

90201-122H1-00

$6.35

8

WASHER, PLATE (35T)

90201-122H1-00

$6.35

9

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$5.61

10

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$5.61

11

COLLAR(59V)

90387-124M4-00

$11.30

12

COLLAR(59V)

90387-124M4-00

$11.30

13

COVER, THRUST 1

401-22128-01-00

$23.80

14

COVER, THRUST 1

401-22128-01-00

$23.80

15

NIPPLE, GREASE

93700-06M03-00

$7.40

16

NIPPLE, GREASE

93700-06M03-00

$7.40

17

SHK/ABS ASSEMBLY FRONT ASSEMBLY

59V-23350-01-26

Unavailable

18

DAMPER, BUSH B

59V-2331R-00-00

Unavailable

19

BOLT, WASHER BASED(59V)

90105-10388-00

Unavailable

20

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$5.61
