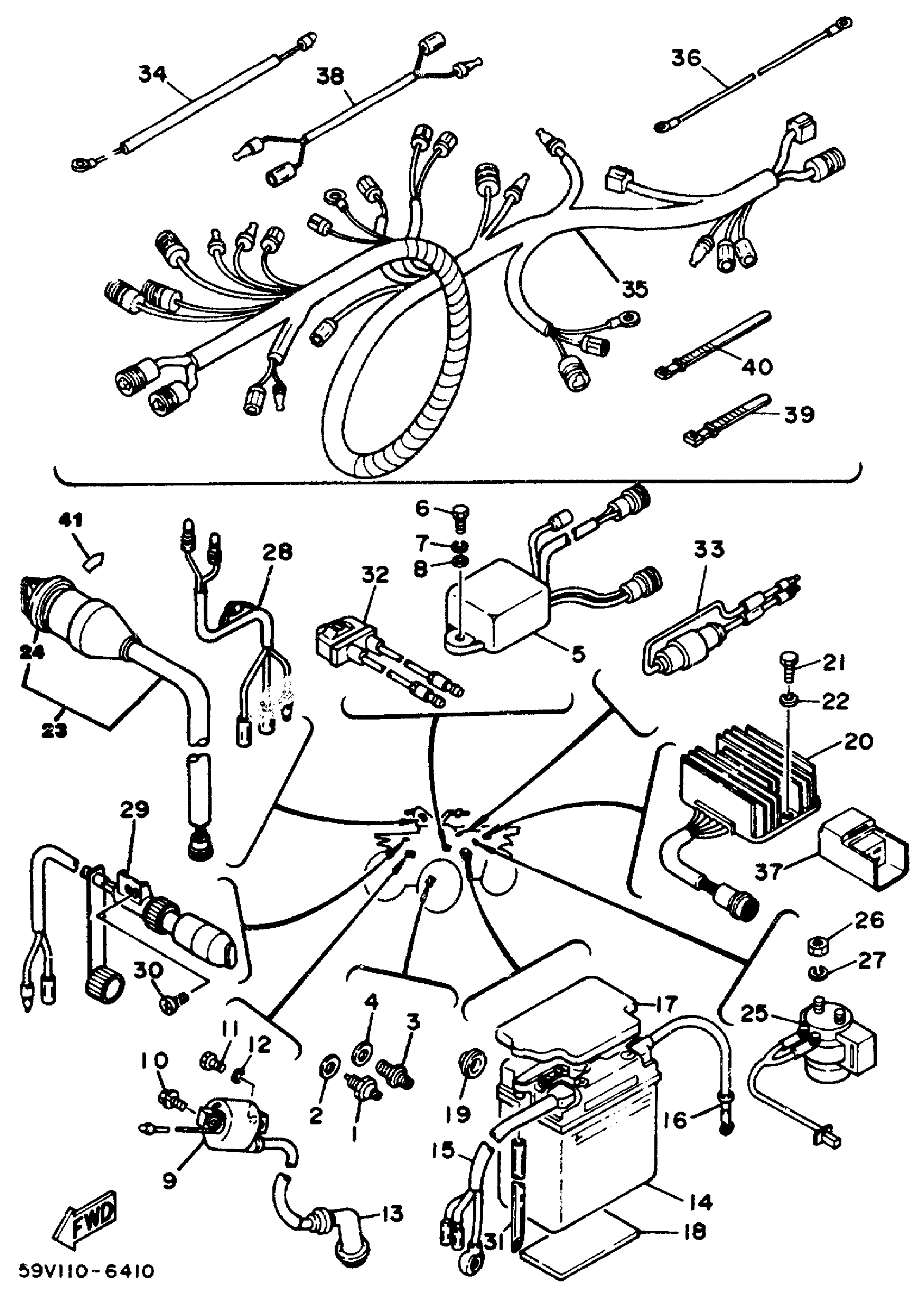

Yamaha YFM225S (MOTO-4) 59V 1986 ELECTRICAL Diagram

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$37.99

GASKET (5R6)

90430-10171-00

$3.18

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$37.99

GASKET (5R6)

90430-10171-00

$3.18

CDI UNIT ASSEMBLY

59V-85540-21-00

Unavailable

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

WASHER, SPRING

92907-06100-00

$4.25

WASHER(6TA)

92907-06600-00

$2.72

IGNITION COIL ASSY

1UY-82310-41-00

$186.99

BOLT (21V)

90109-06723-00

$8.49

BOLT(3DM)

97024-06020-00

$8.49

WASHER, SPRING

92995-06100-00

Unavailable

PLUG CAP ASSY

3NS-82370-00-00

$37.99

CB14-A2 GS BATTERY

CB1-4A200-00-00

Unavailable

WIRE, PLUS LEAD

29U-82115-00-00

Unavailable

WIRE, MINUS LEAD

29U-82116-00-00

Unavailable

COVER, BATTERY

24W-82129-00-00

Unavailable

SEAT, BATTERY

5Y1-82122-00-00

Unavailable

PAD, BATTERY

371-82121-00-00

Unavailable

RECTIFIER & REGULATOR ASSEMBLY

59V-81960-A0-00

Unavailable

BOLT, HEXAGON

97017-06020-00

Unavailable

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

MAIN SWITCH ASSY

2FJ-82510-09-00

Unavailable

NUT, MAIN SWITCH

3HN-82569-00-00

Unavailable

STARTER RELAY ASSY (MS5D-611)

4KD-81940-00-00

Unavailable

NUT(650)

95380-06700-00

Unavailable

WASHER, SPRING

92995-06100-00

Unavailable

PILOT LIGHT ASSEMBLY

59V-83530-00-00

Unavailable

TERMINAL ASSY

59V-81920-00-00

Unavailable

SCREW, WITH WASHER (1T4/2F3)

90159-05018-00

Unavailable

PIPE, BREATHER

3L5-82112-00-00

Unavailable

CIRCUIT BREAKER ASSEMBLY

59V-82180-00-00

Unavailable

FUSE HOLDER ASSY

2NL-82150-00-00

Unavailable

WIRE, LEAD

2JX-82541-00-00

Unavailable

WIRE HARNESS ASSY

59V-82590-60-00

Unavailable

WIRE, MINUS LEAD

89H-82116-00-00

Unavailable

RELAY ASSY (29U-93)

29U-81950-93-00

Unavailable

WIRE, LEAD

59V-82541-00-00

Unavailable

BAND, SWITCH CORD

437-83936-01-00

Unavailable

BAND, SWITCH CORD

437-83936-11-00

Unavailable

LABEL

29U-83585-10-00

Unavailable
