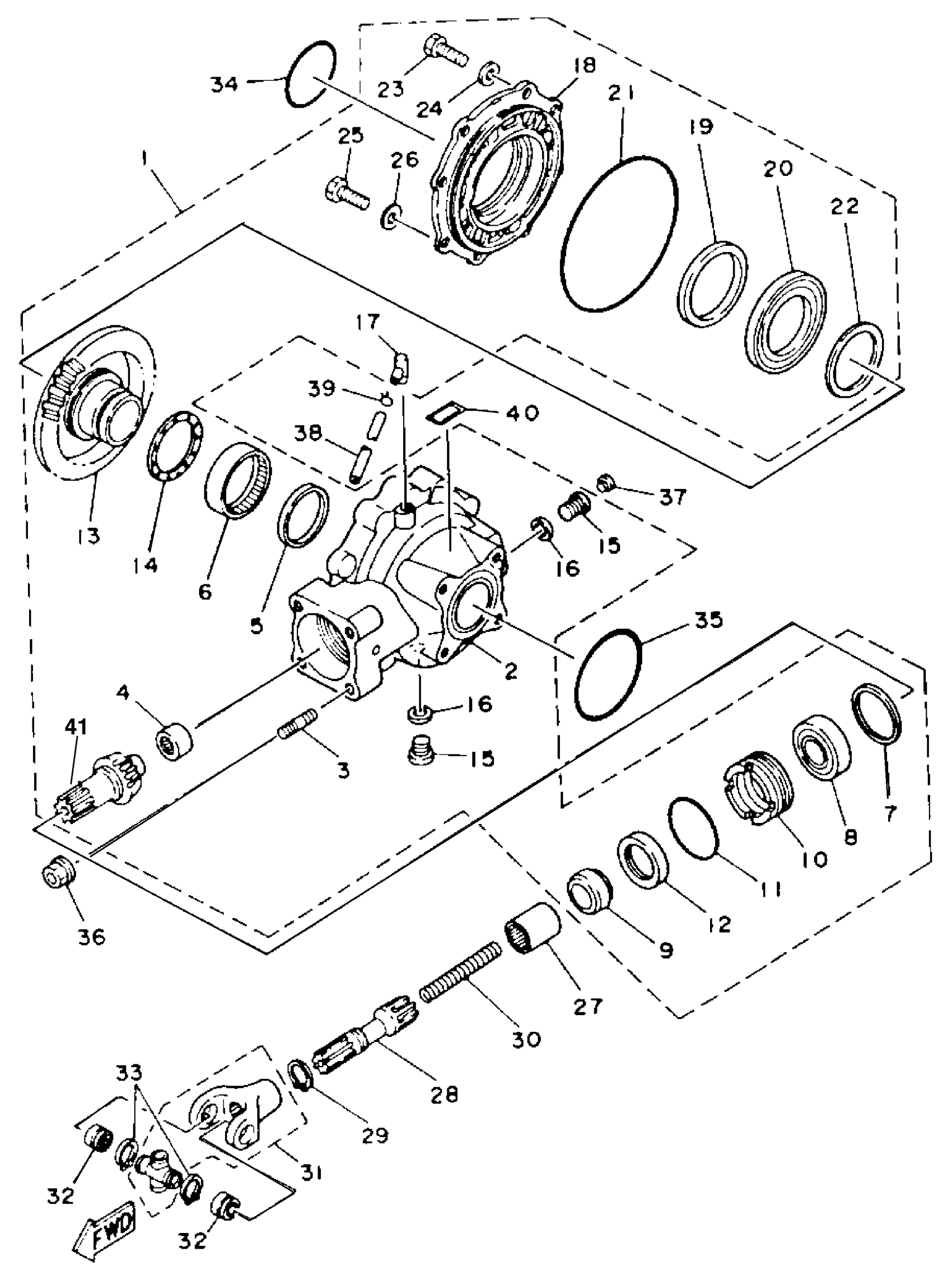

Yamaha YFM225S (MOTO-4) 59V 1986 DRIVE SHAFT Diagram

#

Description
Price

1

REAR AXLE GEAR CASE ASSEMBLY

59V-46101-01-00

Unavailable

2

. HOUSING, DRIVE SHAFT

[59-V4615-10-10

Unavailable

3

BOLT, STUD (5E5)

90116-10361-00

Unavailable

4

. BEARING ASSY

24W-46102-00-00

Unavailable

5

OIL SEAL (24W)

93101-52116-00

$16.99

6

. BEARING, CYLINDER17

93317-55542-00

Unavailable

6

BEARING, CYLINDRICAL(3HN)

93317-85569-00

$86.99

7

SHIM, THRUST (0.30T)

1J7-17537-Y0-30

$4.47

7

SHIM, THRUST (0.40T)

1J7-17537-Y0-40

$4.47

7

SHIM, THRUST (0.50T)

1J7-17537-Y0-50

$4.47

8

BEARING(3RR)

93306-30560-00

Unavailable

9

COLLAR (24W)

90387-255H9-00

Unavailable

10

RETAINER, BEARING

29U-46125-00-00

$92.99

11

O-RING (11H)

93210-59531-00

$15.99

12

OIL SEAL (4H7)

93101-38098-00

$17.99

13

. RING GEAR ASSEMBLY

59V-46110-01-00

Unavailable

14

WASHER, THRUST

24W-46118-00-12

Unavailable

14

WASHER, THRUST

24W-46118-00-14

Unavailable

14

WASHER, THRUST

24W-46118-00-16

Unavailable

14

WASHER, THRUST

24W-46118-00-18

Unavailable

14

WASHER, THRUST

24W-46118-00-20

Unavailable

15

PLUG, STRAIGHT SCREW

90340-14002-00

Unavailable

16

GASKET

214-11198-01-00

Unavailable

17

BREATHER

5UG-15371-00-00

Unavailable

18

HOUSING,BEARING

2HT-46152-00-00

Unavailable

19

OIL SEAL (22U)

93102-65277-00

Unavailable

20

BEARING, CYLINDRICAL (22U)

93316-01301-00

Unavailable

21

O-RING(59V)

93211-54698-00

Unavailable

22

. SHIM, RING GEAR (025T)

24W-46117-00-25

Unavailable

22

. SHIM, RING GEAR (030T)

24W-46117-00-30

Unavailable

22

. SHIM, RING GEAR (040T)

24W-46117-00-40

Unavailable

22

. SHIM, RING GEAR (050T)

24W-46117-00-50

Unavailable

23

. BOLT (97313-08025)

90313-08025-00

Unavailable

24

.. WASHER, PLATE

92990-08600-00

Unavailable

25

BOLT(6TD)

97017-10025-00

Unavailable

26

WASHER, PLATE

92990-10600-00

Unavailable

27

COUPLING, GEAR

2HR-46123-00-00

Unavailable

28

SHAFT, DRIVE

59V-46172-01-00

Unavailable

29

CIRCLIP (537)

93410-22039-00

Unavailable

30

SPRING, COMPRESSION

90501-16780-00

Unavailable

31

CROSS JOINT COMP.

4X7-46180-00-00

Unavailable

32

BEARING(2HR)

93399-99926-00

Unavailable

33

CIRCLIP (4X7)

93440-20088-00

Unavailable

34

O-RING

93210-65705-00

Unavailable

35

O-RING(59V)

93210-85706-00

Unavailable

36

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

37

CAP, BOLT

341-23469-00-

Unavailable

38

HOSE (L1700)

90445-070G6-00

Unavailable

39

CLIP (1J7)

90467-07029-00

Unavailable

40

LABEL, OIL CAUTION

4H7-46181-10-00

Unavailable

41

GEAR, DRIVE PINION

2HT-46121-00-00

Unavailable
