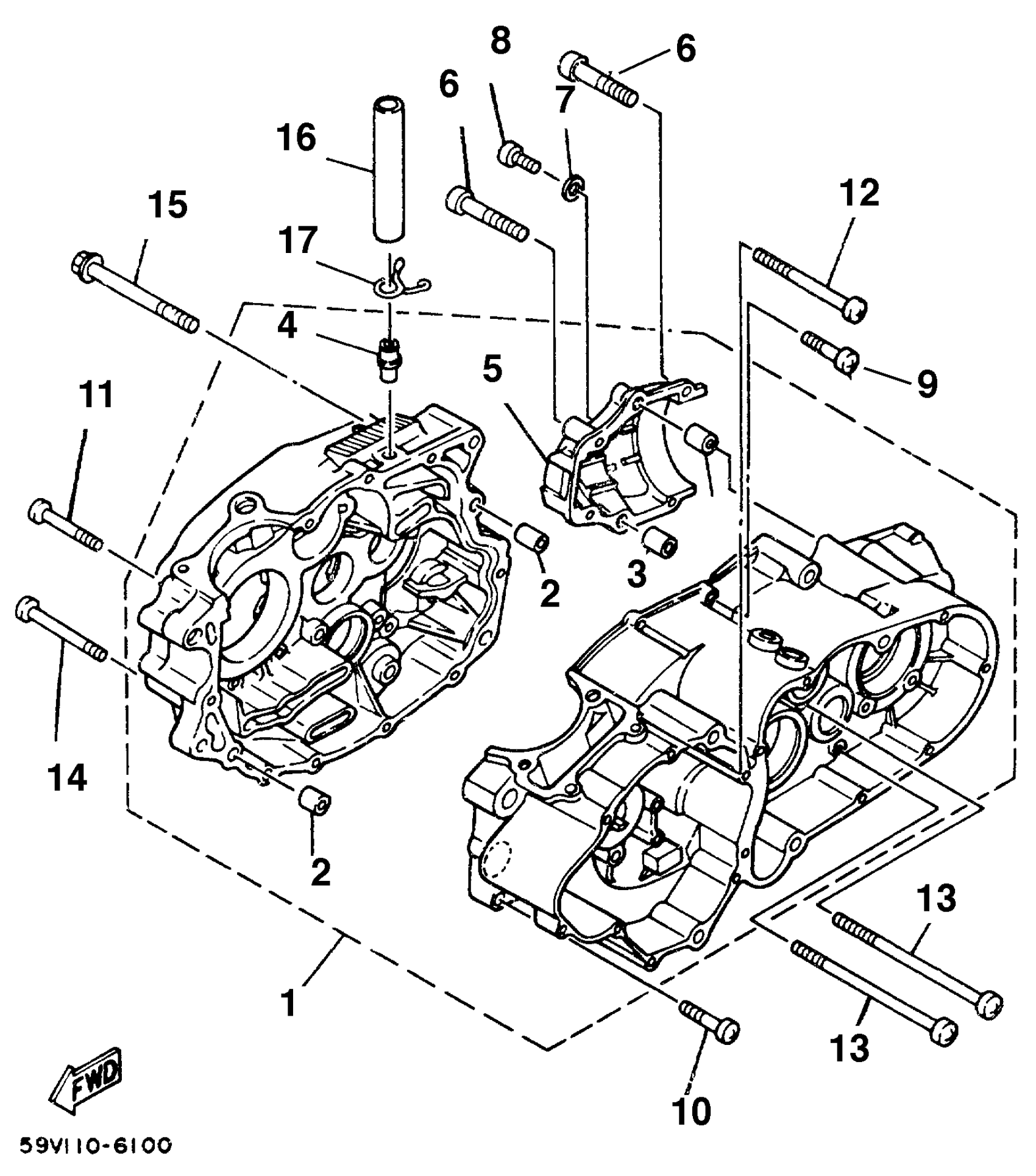

Yamaha YFM225S (MOTO-4) 59V 1986 CRANKCASE Diagram
#
Description
Price
1
. AXLE, COUNTER
2HT-17431-00-00
Unavailable
1
CRANKCASE ASSEMBLY
59V-15100-01-00
Unavailable
1
. COLLAR
90387-224TS-00
Unavailable
1
. OIL SEAL (2HT)
93104-15099-00
Unavailable
1
CRANKCASE ASSEMBLY (59V-15100-00)
99999-01725-00
Unavailable
4
PIPE, BREATHER 2
59V-11167-00-00
Unavailable
5
. COVER, MIDDLE GEAR
59V-15415-09-00
Unavailable
9
SCREW, PAN HEAD(6E0)
97885-06030-00
Unavailable
10
SCREW PAN HEAD
98580-06040-00
Unavailable
11
SCREW, BIND (JH1)
98580-06560-00
Unavailable
12
SCREW, PAN
98507-06085-00
Unavailable
13
SCREW, PAN
98504-06090-00
Unavailable
14
SCREW PAN HEAD
98580-06575-00
Unavailable
15
BOLT, FLANGE
95817-08060-00
Unavailable
16
HOSE
90445-121E3-00
Unavailable
17
CLIP(3YX)
90467-13133-00
Unavailable
