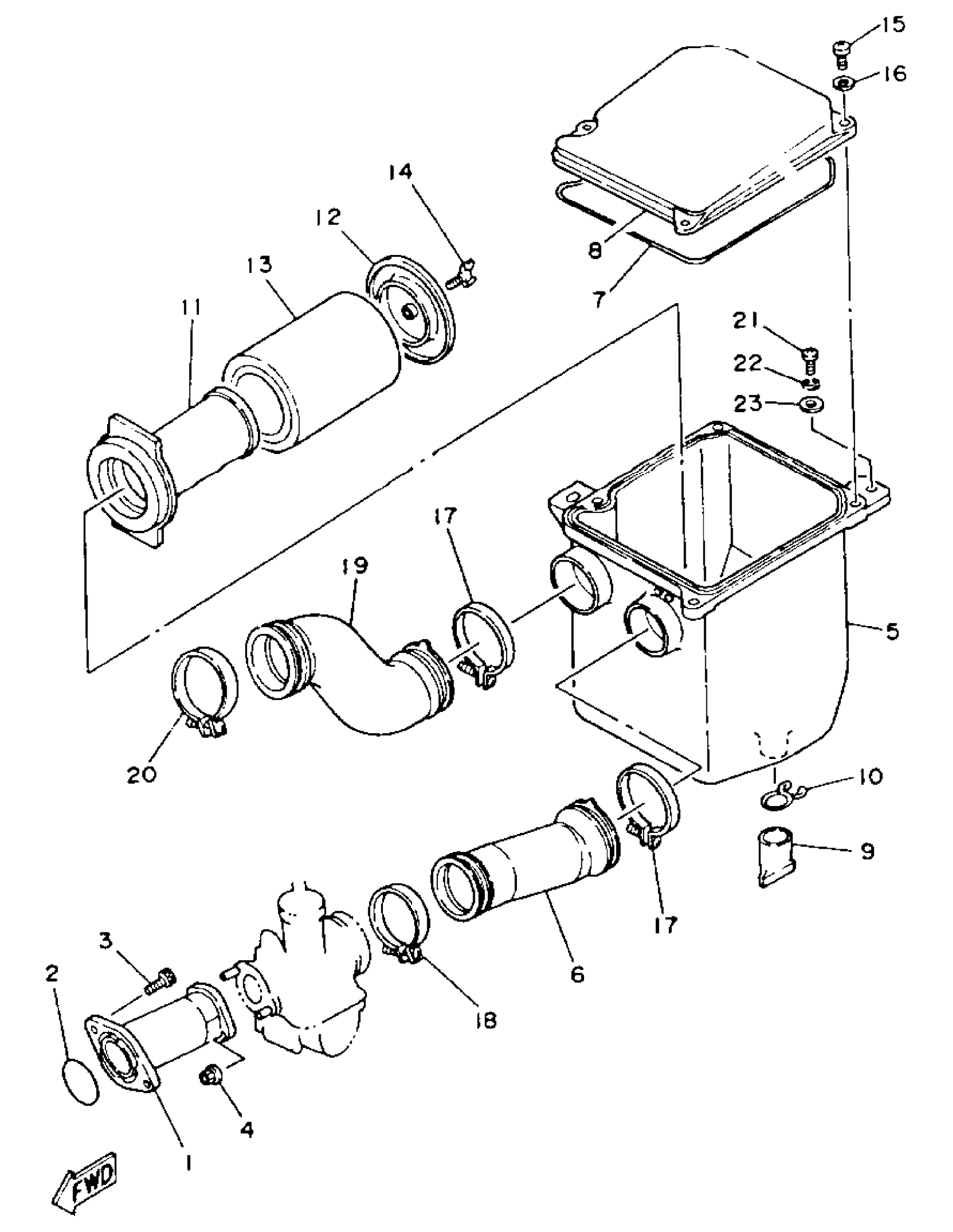

Yamaha YFM225S (MOTO-4) 59V 1986 AIR FILTER Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

29U-13586-01-00

$80.99

2

O-RING (16G)

93210-35537-00

$14.49

3

BOLT,SOCKET

91317-06020-00

Unavailable

4

NUT, FLANGE(7NB)

95780-06500-00

$2.60

5

CASE, AIR CLEANER 1

59V-14411-00-00

Unavailable

6

JOINT, AIR CLEANER 1

59V-14453-01-00

Unavailable

7

SEAL

1VJ-14462-00-00

$18.49

8

CAP, CLEANER CASE 1

21V-14412-01-00

$18.49

9

SEAL

59V-14457-00-00

$6.99

10

CLIP (21V)

90467-22080-00

$8.49

11

GUIDE

21V-14458-01-00

$98.99

12

PLATE, ELEMENT FTNG

21V-14468-00-00

Unavailable

13

ELEMENT ASSEMBLY CLEANER

21V-14450-90-00

Unavailable

13

ELEMENT, AIR CLEANER

21V-14451-01-00

$18.49

14

BOLT, WING(8W1)

90122-05022-00

$7.49

15

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

16

WASHER, PLAIN (646)

92990-05600-00

Unavailable

17

CLAMP HOSE 304144550000

90460-51059-00

Unavailable

18

HOSE CLAMP ASSY(10F)

90450-45075-00

Unavailable

19

DUCT

59V-14437-00-00

Unavailable

20

CLAMP HOSE 304144550000

90460-51059-00

Unavailable

21

SCREW PAN HEAD

98580-06020-00

Unavailable

22

WASHER, SPRING

92995-06100-00

Unavailable

23

WASHER, PLATE

90201-06380-00

Unavailable
