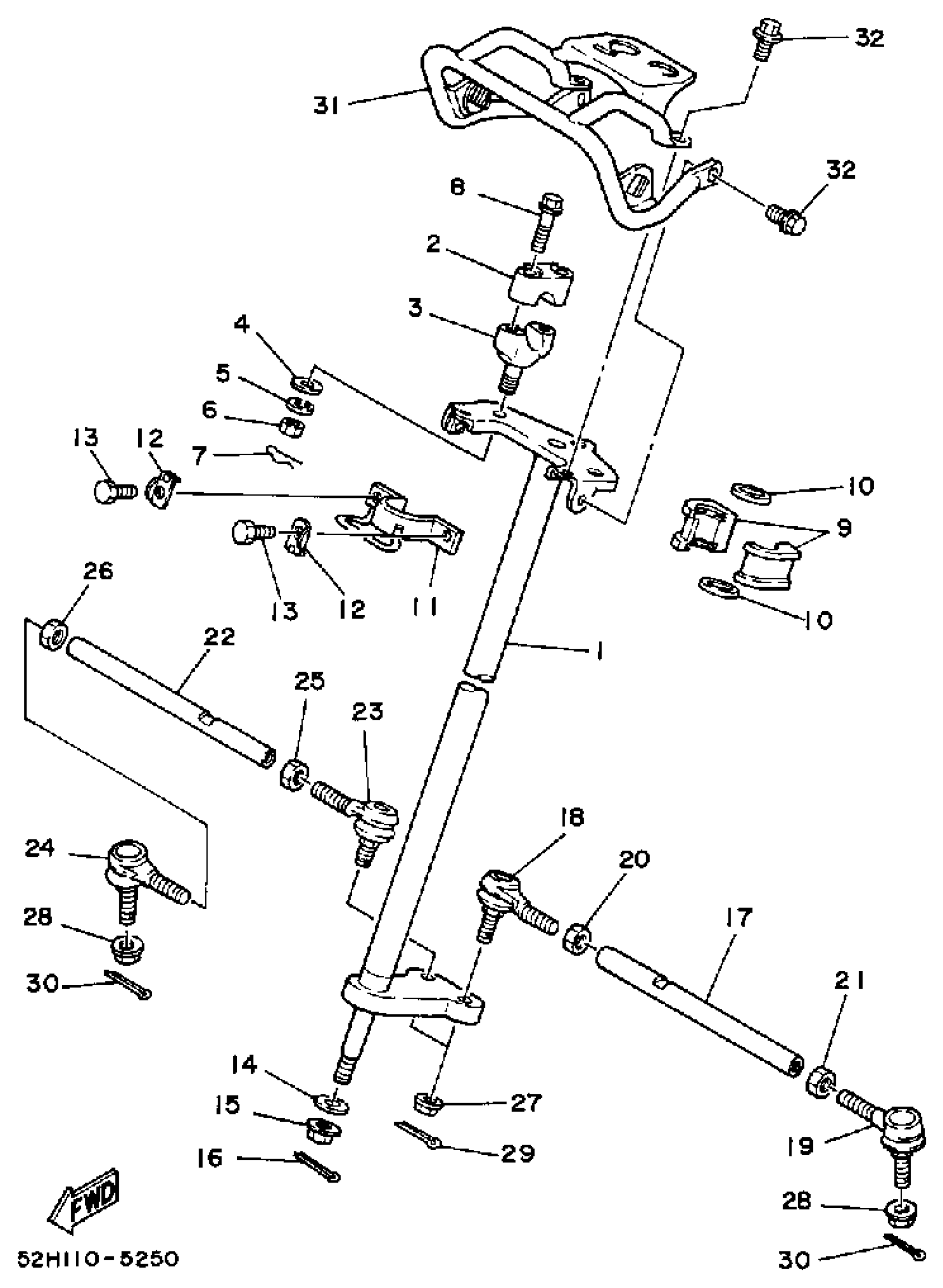

Yamaha YFM200N (MOTO-4) 1985 STEERING Diagram

#

Description
Price

1

COLUMN, STEERING 2

52H-23813-00-00

Unavailable

2

HOLDER, HANDLE UPPER

1E6-23441-00-00

$27.99

3

HOLDER, HANDLE LOWER

5H0-23442-01-98

Unavailable

4

WASHER, PLATE (3L6)

90201-10774-00

$9.49

5

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

6

NUT(3BM)

95314-10600-00

$2.39

7

CLIP 136253750000

90468-12006-00

$8.49

8

BOLT, FLANGE

95817-08035-00

$9.49

9

PLANE BEARING, STEERING

52H-23812-00-00

Unavailable

10

OIL SEAL

93112-28007-00

Unavailable

11

BRACKET, STRG LOWER

(52H-23868-00-00)

Unavailable

12

WASHER, LOCK 1

8AC-23894-01-00

$4.78

13

BOLT, HEXAGON

97013-08016-00

$1.01

14

WASHER, PLATE (3L6)

90201-10774-00

$9.49

15

NUT, SELF-LOCKING (8U7)

90185-10115-00

Unavailable

16

PIN, COTTER

91490-20025-00

Unavailable

17

ROD, TIE

52H-23831-00-00

Unavailable

18

JOINT UNIVERSAL 1 (52H-23841-00)

52H-23841-01-00

Unavailable

19

JOINT, UNIVERSAL 2

52H-23845-01-00

Unavailable

20

NUT (682)

95380-10700-00

Unavailable

21

NUT, HEXAGON (8A5)

90170-10186-00

Unavailable

22

ROD, TIE

52H-23831-00-00

Unavailable

23

JOINT UNIVERSAL 1 (52H-23841-00)

52H-23841-01-00

Unavailable

24

JOINT, UNIVERSAL 2

52H-23845-01-00

Unavailable

25

NUT (682)

95380-10700-00

Unavailable

26

NUT, HEXAGON (8A5)

90170-10186-00

Unavailable

27

NUT, SELF-LOCKING (8U7)

90185-10115-00

Unavailable

28

NUT, SELF-LOCKING (8U7)

90185-10115-00

Unavailable

29

PIN, COTTER

91490-20025-00

Unavailable

30

PIN, COTTER

91490-20025-00

Unavailable

31

STAY, HEADLIGHT

52H-23174-00-00

Unavailable

32

BOLT, FLANGE

95817-06016-00

Unavailable
