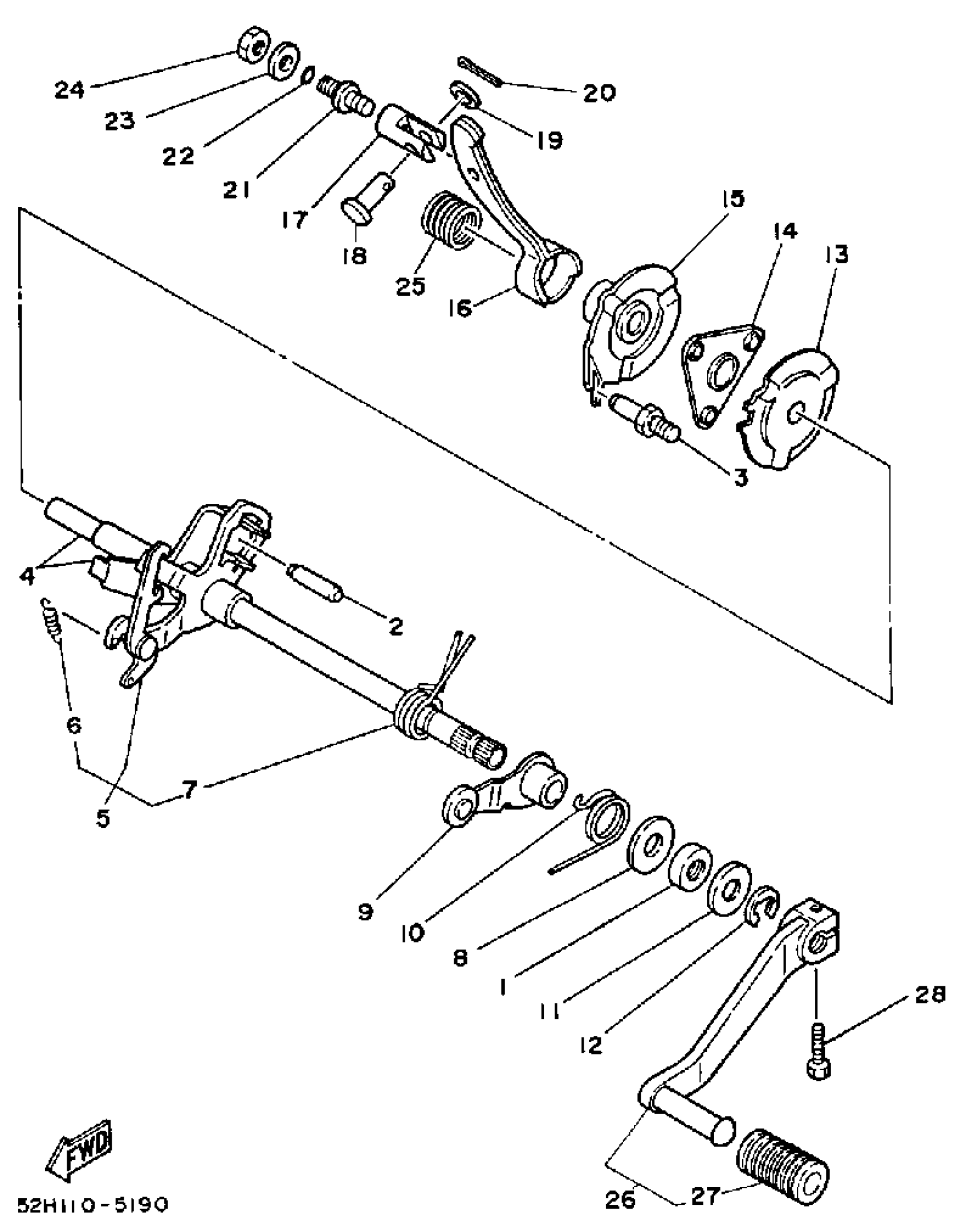

Yamaha YFM200N (MOTO-4) 1985 SHIFT SHAFT Diagram

#

Description
Price

1

SEAL, OIL (30X)

93102-12321-00

$12.49

2

PIN, DOWEL

93608-30152-00

Unavailable

3

BOLT, STOPPER

21V-18177-00-00

Unavailable

4

SHIFT SHAFT COMP.

29U-W1813-01-00

Unavailable

5

SHIFT LEVER ASSY

21V-18120-00-00

Unavailable

6

SPRING, TENSION (4H7)

90506-08227-00

$4.19

7

. SPRING, TORSION

90508-29570-00

Unavailable

8

WASHER

90201-12588-00

$7.49

9

STOPPER LEVER ASSY

4G0-18140-00-00

Unavailable

10

SPRING, TORSION (15A)

90508-26539-00

$8.49

11

WASHER, PLATE (353)

90201-12575-00

$8.49

12

CIRCLIP(10Y)

99009-12400-00

$3.59

13

GUIDE

24W-18179-00-00

Unavailable

14

HOLDER, PAWL

21V-18181-00-00

Unavailable

15

GUIDE SHIFT COMP.

24W-18104-00-00

$77.99

16

ARM, SHIFT 3

2HT-1817A-00-00

Unavailable

17

PIN, LEVER

21V-18126-00-00

Unavailable

18

PIN, JOINT

21V-18118-00-00

Unavailable

19

.. WASHER, PLATE

92990-08600-00

Unavailable

20

PIN, COTTER

91490-16020-00

Unavailable

21

STOPPER, SCREW

21V-18127-00-00

Unavailable

22

O-RING (21V)

93210-07590-00

Unavailable

23

WASHER (1T1)

90201-08649-00

Unavailable

24

NUT, HEXAGON SMALL

95317-08700-00

Unavailable

25

SPRING, COMPRESSION

90501-16768-00

Unavailable

26

SHIFT PEDAL ASSEMBLY

52H-18110-01-00

Unavailable

27

COVER, CHANGE PEDAL

132-18113-01-00

Unavailable

28

BOLT, HEXAGON

97017-06020-00

Unavailable
