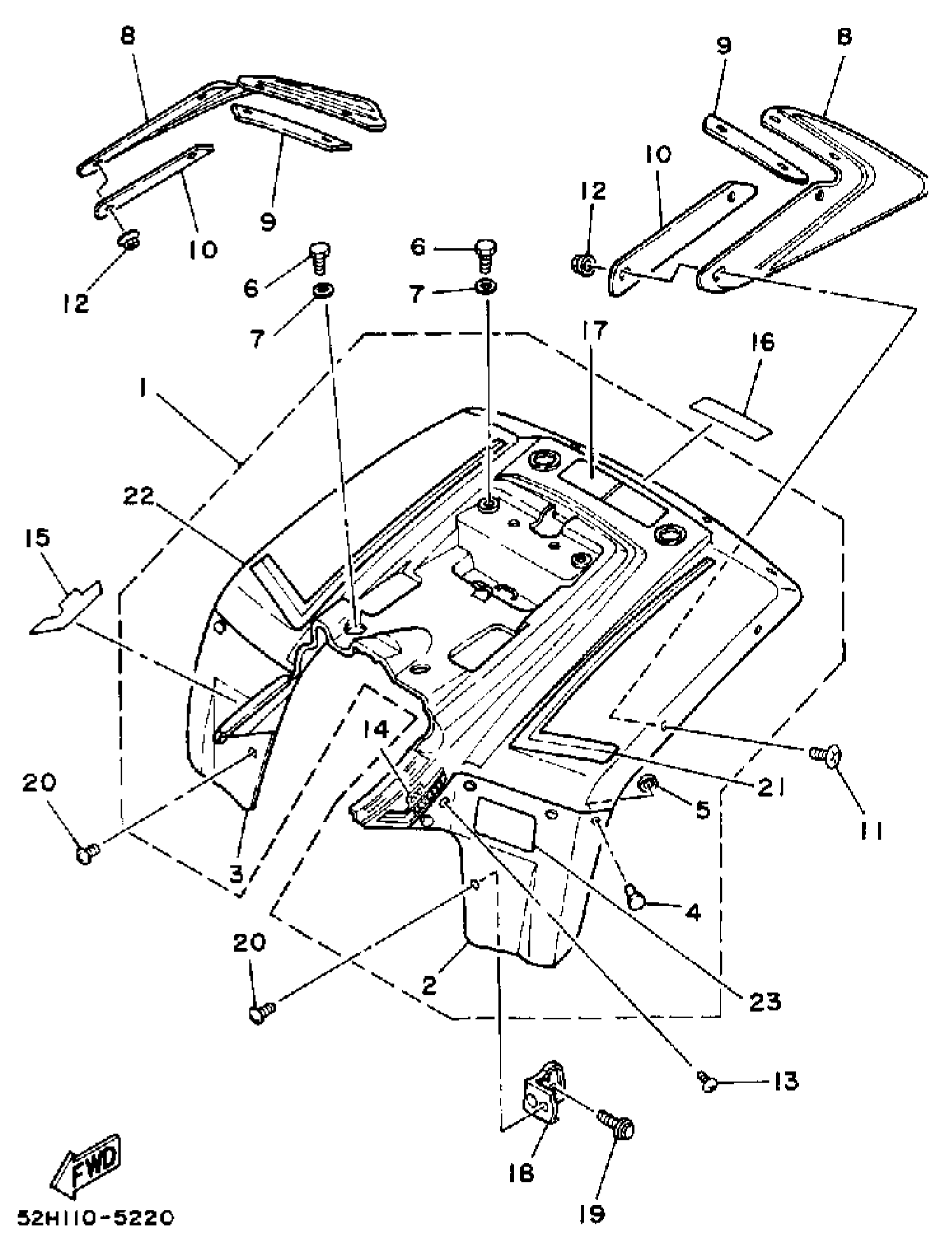

Yamaha YFM200N (MOTO-4) 1985 REAR FENDER Diagram

#

Description
Price

1

REAR FENDER ASSEMBLY

53J-21600-01-00

Unavailable

2

. COVER, FENDER LEFT (29U-2163A-00)

29U-2163A-01-00

Unavailable

3

. COVER, FENDER RIGHT (29U-2163E-00)

29U-2163E-01-00

Unavailable

4

RIVET, BLIND (8M6)

90267-48051-00

$1.49

5

WASHER, PLATE

90201-04027-00

$3.02

6

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

7

WASHER, PLATE

90201-06086-00

$7.49

8

FLAP

29U-21621-00-00

Unavailable

9

PLATE, FLAP FITTING 1

29U-21623-00-00

Unavailable

10

PLATE, FLAP FITTING 2

29U-21624-00-00

Unavailable

11

SCREW, BINDING(3XV)

90154-05059-00

$9.49

12

NUT, FLANGE(3GM)

95707-05500-00

$8.49

13

SCREW, BINDING (8J0)

90154-05005-00

$4.73

14

EMBLEM 1

52H-2163G-00-00

Unavailable

15

EMBLEM 2

52H-2163H-00-00

Unavailable

16

EMBLEM 4

52H-21784-00-00

Unavailable

17

LABEL, SAFETY

52H-21659-00-00

Unavailable

18

STAY, FENDER 1

52H-21613-00-00

Unavailable

19

BOLT, FLANGE

95812-06010-00

Unavailable

20

SCREW, BINDING (8J0)

90154-05005-00

$4.73

21

GRPHC, R/FNDR CVR L

52H-21661-00-00

Unavailable

22

GRPHC, R/FNDR CVR R

52H-21662-00-00

Unavailable

23

LABEL, CAUTION

52G-21696-00-00

Unavailable
