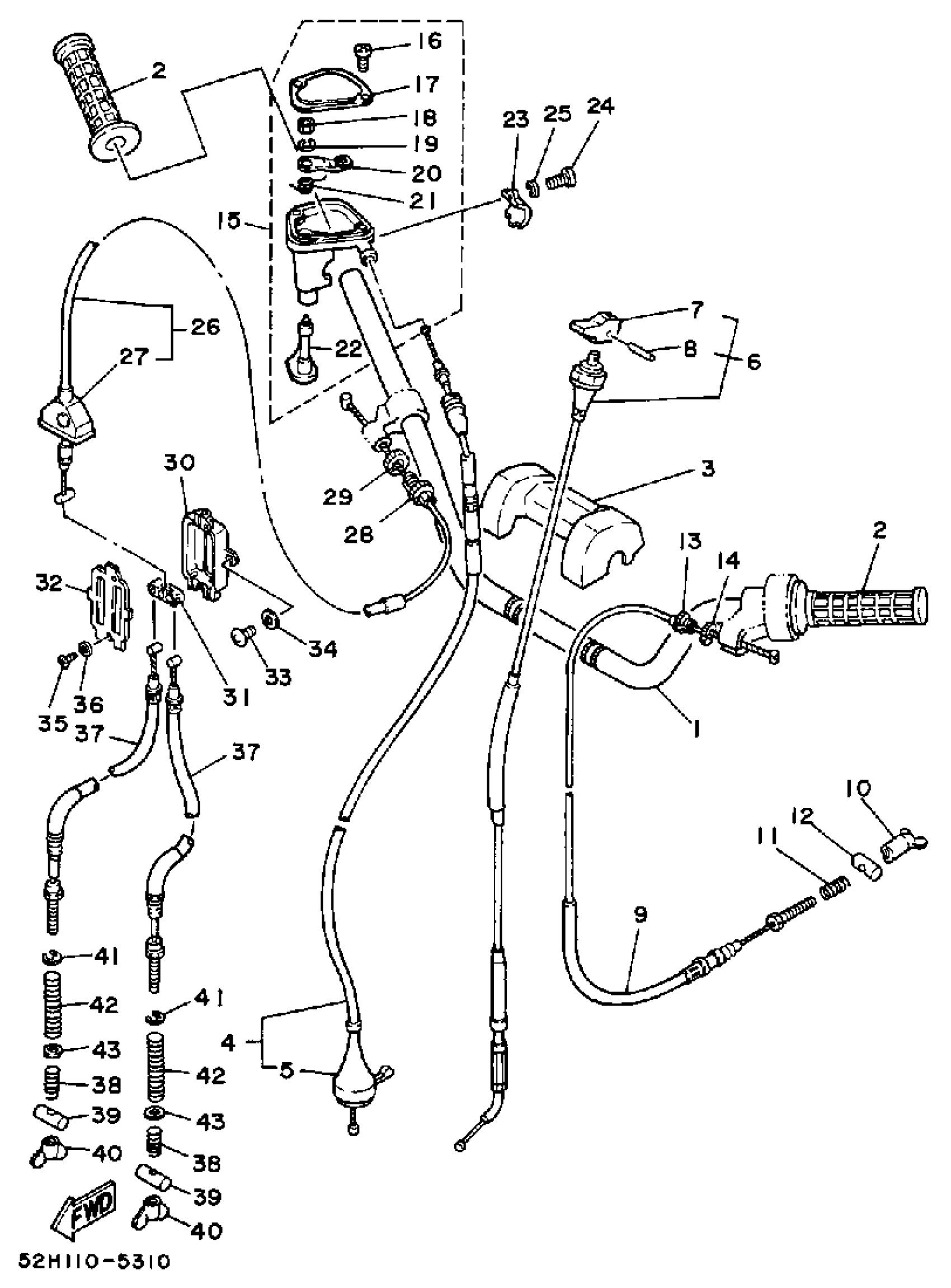

Yamaha YFM200N (MOTO-4) 1985 HANDLEBAR - CABLE Diagram
#
1
HANDLEBAR
52H-26111-00-00
Unavailable
3
PROTECTOR, HDLBR
52H-26124-00-00
Unavailable
4
CABLE, THROTTLE 1
52H-26311-00-00
Unavailable
5
. CAP, RUBBER
21V-26329-00-00
Unavailable
6
CABLE, STARTER 1
52H-26331-00-00
Unavailable
8
PIN, SPRING (663)
91690-30010-00
Unavailable
9
CABLE, BRAKE
20E-26341-00-00
Unavailable
15
THROTTLE LEVER ASSEMBLY
21V-26250-01-00
Unavailable
16
SCREW, PAN HEAD(3LA)
98517-05010-00
Unavailable
17
. CAP, GEAR
21V-2628F-00-00
Unavailable
18
NUT, HEXAGON (663)
95380-05600-00
Unavailable
19
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
20
. ARM, THROTTLE
21V-2625H-00-00
Unavailable
21
. SPRING, TORSION
90508-10597-00
Unavailable
22
. LEVER, THROTTLE
21V-2625G-01-00
Unavailable
23
H0LDER, LEVER L0WER 1
38V-82913-00-00
Unavailable
24
SCREW, PAN HEAD(4MY)
98507-05018-00
Unavailable
25
WASHER(3SX)
92907-05100-00
Unavailable
26
CABLE, BRAKE 4
1YW-26373-02-00
Unavailable
27
. BOOT
52H-26362-00-00
Unavailable
30
HOUSING, BRAKE LINK
52H-26371-00-00
Unavailable
31
JOINT, CABLE
52H-26347-01-00
Unavailable
32
PLATE
52H-2631G-00-00
Unavailable
33
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
34
WASHER, PLAIN (646)
92990-05600-00
Unavailable
35
SCREW, PAN HEAD (J10)
98580-03008-00
Unavailable
36
WASHER(3SX)
92907-03600-00
Unavailable
37
CABLE, BRAKE
52H-26361-00-00
Unavailable
40
NUT, WING (1K5)
90175-06013-00
Unavailable
41
CIRCLIP(53L)
99001-06600-00
Unavailable
42
SPRING, COMPRESSION(52H)
90501-123A0-00
Unavailable
43
WASHER(52H)
90209-06265-00
Unavailable
