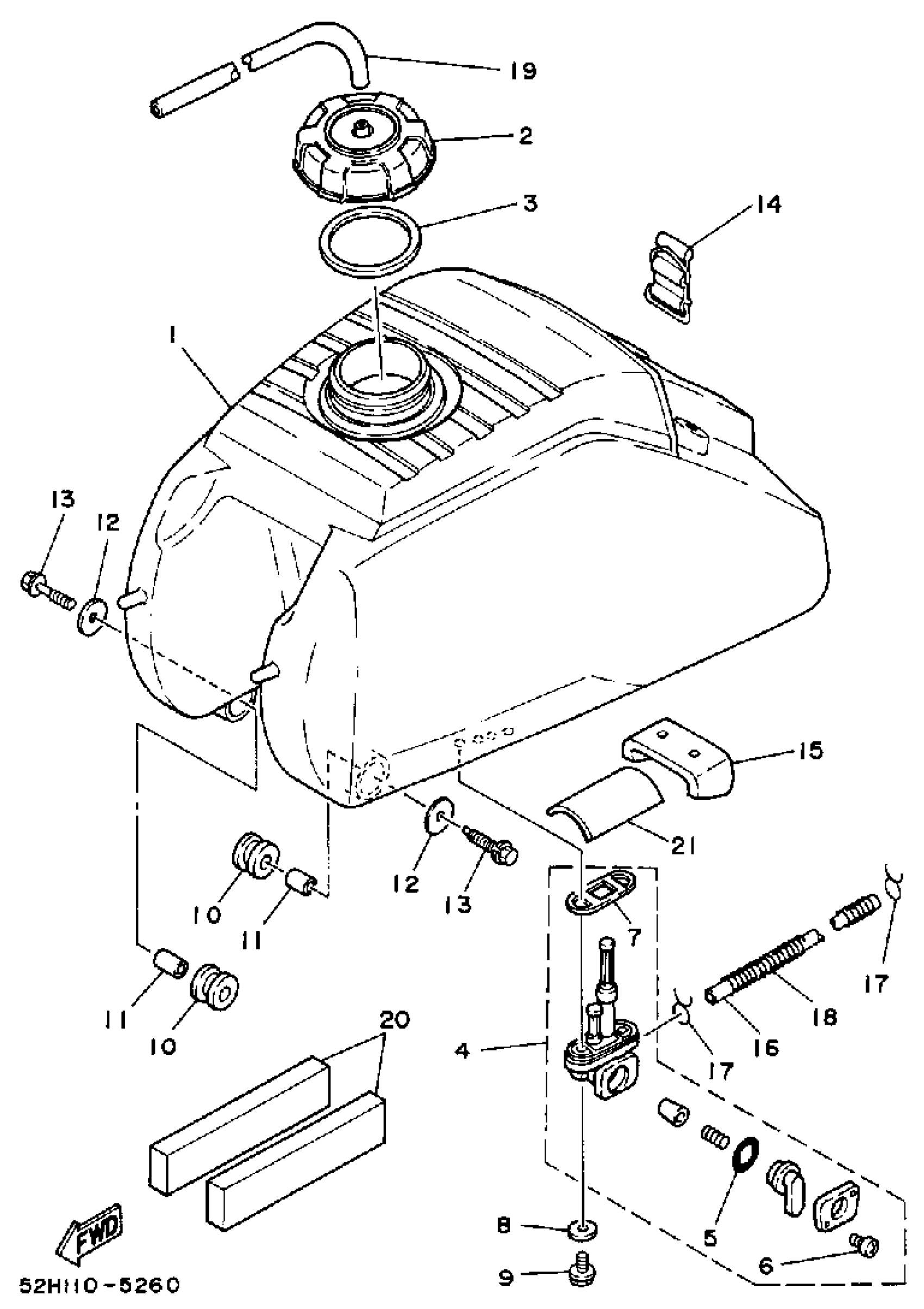

Yamaha YFM200N (MOTO-4) 1985 FUEL TANK Diagram

. UNAVAILABLE IN PRICE BOOK

2N3-13512-01-00

Unavailable

. UNAVAILABLE IN PRICE BOOK

2N3-13515-00-00

Unavailable

. UNAVAILABLE IN PRICE BOOK

90387-204E7-00

Unavailable

FUEL TANK (52H-24110-00)

99999-02137-00

Unavailable

CAP ASSY

5MV-24610-00-00

$58.99

GASKET,CAP

3R9-24612-00-00

Unavailable

FUEL COCK ASSY 1

21V-24500-20-00

$51.99

O-RING

4X8-24534-00-00

$13.49

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

O-RING

4X8-24512-00-00

$8.99

WASHER, PLATE(3MB)

90202-05187-00

$1.38

SCREW 256241430000

90149-06011-00

$5.60

GROMMET(4AA)

90480-18549-00

$10.49

COLLAR 849833160000

90387-06027-00

$8.49

WASHER, PLATE (J10)

90201-06697-00

$8.49

BOLT, WITH WASHER (24X)

90119-06073-00

Unavailable

BAND, TANK FITTING 1

59V-24173-00-00

Unavailable

DAMPER, LOCATING 1

29U-24181-00-00

Unavailable

HOSE (L400)

90445-116K9-00

Unavailable

CLIP

90467-100A1-00

Unavailable

SPRING, COMPRESSION (27Y)

90501-08728-00

Unavailable

HOSE (L1500)

90445-090F6-00

Unavailable

TRIM, LOWER

89A-77214-00-00

Unavailable

DAMPER 1

2JG-21638-00-00

Unavailable
