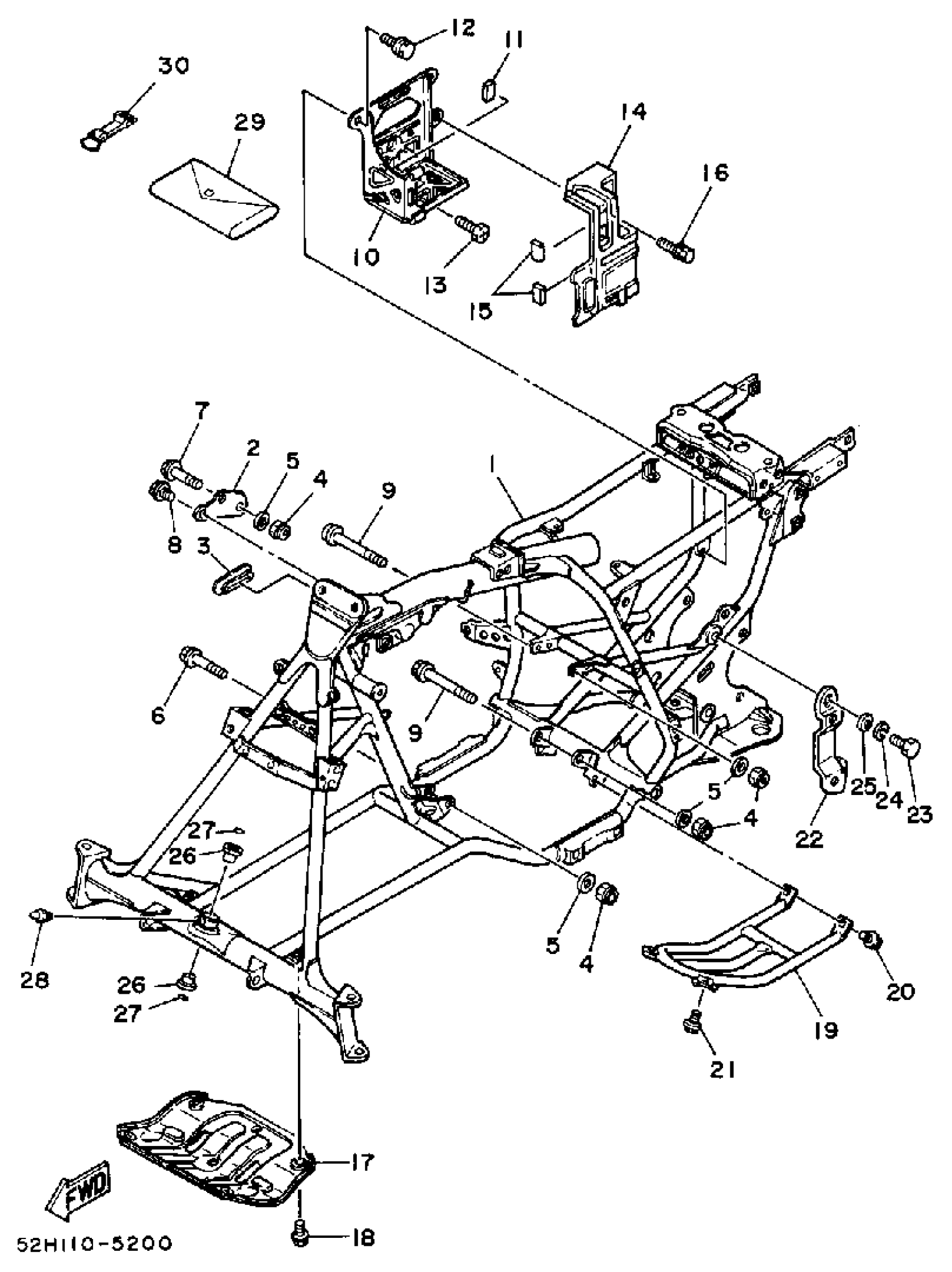

Yamaha YFM200N (MOTO-4) 1985 FRAME Diagram

#

Description
Price

1

FRAME

52H-21110-00-33

Unavailable

2

STAY, ENGINE 2

52H-21315-00-00

Unavailable

3

GUIDE, AIR

52H-2137Y-00-00

Unavailable

4

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

5

WASHER, PLATE (33N)

90201-094G1-00

$9.49

6

BOLT, FLANGE

95814-08065-00

$4.99

7

BOLT, FLANGE

95817-08050-00

$2.44

8

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

9

BOLT, FLANGE(4BD)

95817-08105-00

Unavailable

10

BOX

24W-21170-00-00

Unavailable

11

COVER 2

3FC-2139R-00-00

Unavailable

12

BOLT, FLANGE

95817-06012-00

$1.43

13

SCREW (5G3)

90153-06034-00

$7.49

14

BOX

24W-21245-00-00

Unavailable

15

COVER 2

3FC-2139R-00-00

Unavailable

16

BOLT, WITH WASHER

90119-06152-00

Unavailable

17

GUARD, ENGINE 1

52H-2147A-00-00

Unavailable

18

BOLT, FLANGE

95817-06016-00

Unavailable

19

PROTECTOR, ENGINE

52H-21471-00-00

Unavailable

20

BOLT, FLANGE

95817-06012-00

$1.43

21

BOLT, FLANGE

95817-08012-00

Unavailable

22

STAY, CHAIN CASE 1

(52H-22131-00-00)

Unavailable

23

BOLT(6TD)

97017-10025-00

Unavailable

24

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

25

WASHER, PLATE (3L6)

90201-10774-00

Unavailable

26

BUSH, SOLID (J22)

90381-15040-00

Unavailable

27

O-RING (22U)

93210-15566-00

Unavailable

28

NIPPLE, GREASE

93700-06M03-00

Unavailable

29

TOOL KIT (24W-28100-00)

59V-28100-00-00

Unavailable

30

BAND, TOOL

21V-21376-00-00

Unavailable
