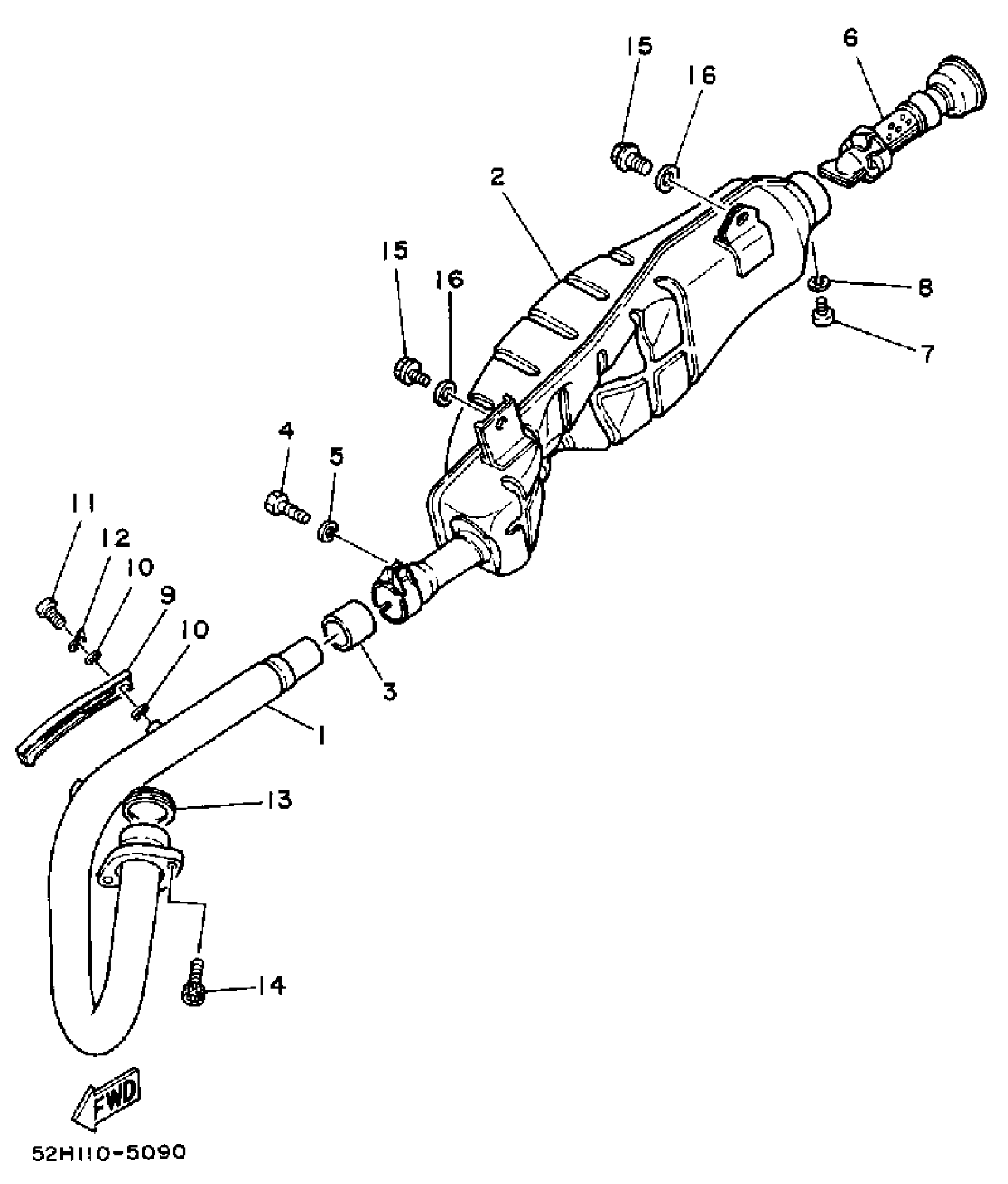

Yamaha YFM200N (MOTO-4) 1985 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST L

52H-14611-00-00

Unavailable

2

MUFFLER (L)

52H-14711-03-00

Unavailable

3

GASKET, MUFFLER

4DN-14714-01-00

$59.53

4

BOLT, HEXAGON

97017-08025-00

$6.95

5

WASHER(6TA)

92907-08600-00

$2.34

6

PIPE, OUTLET

21V-14752-00-00

Unavailable

7

SCREW, PAN HEAD(6A3)

97885-06008-00

$1.07

8

WASHER, SPRING

92995-06100-00

$2.95

9

PROTECTOR, EXHAUST PIPE

29U-14628-00-00

Unavailable

10

WASHER, PLATE(3MB)

90202-05187-00

$1.01

11

SCREW, BINDING

98907-06010-00

$1.40

12

WASHER, WAVE(3RW)

90206-06090-00

$4.89

13

GASKET, EXHAUST PIPE

4BE-14613-00-00

$8.66

14

BOLT,SOCKET

91317-06020-00

Unavailable

15

BOLT, FLANGE(8AB)

95817-08020-00

$6.52

16

WASHER (853)

90201-08326-00

Unavailable
