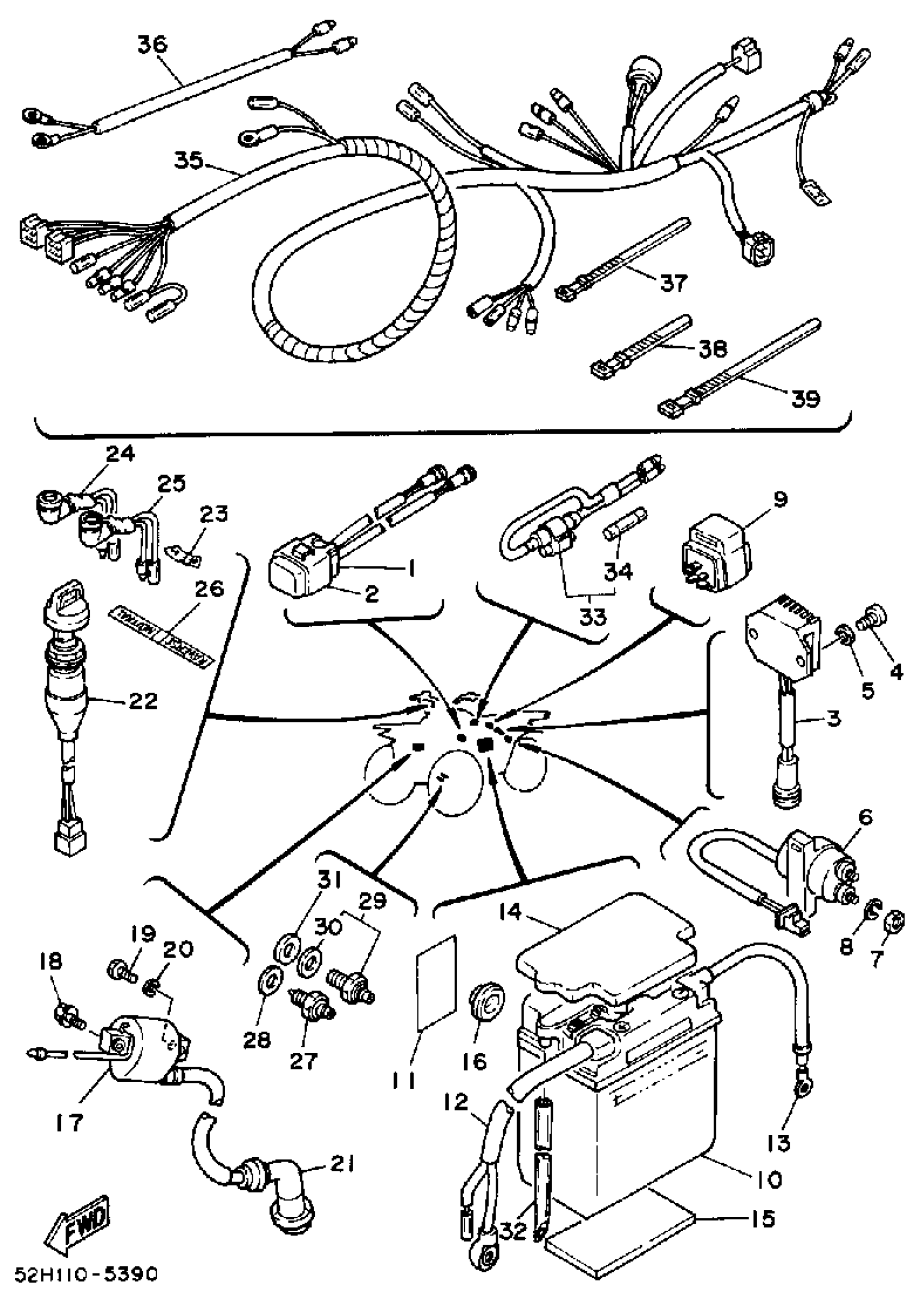

Yamaha YFM200N (MOTO-4) 1985 ELECTRICAL 1 Diagram
#
1
CDI UNIT ASSEMBLY
29U-85540-21-00
Unavailable
2
BAND
2A7-85546-00-00
Unavailable
3
RECTIFIER/REGULATOR ASSEMBLY
29U-81960-90-00
Unavailable
4
SCREW, PAN HEAD
98503-06015-00
Unavailable
8
WASHER, SPRING
92995-06100-00
Unavailable
10
CB14-A2 GS BATTERY
CB1-4A200-00-00
Unavailable
11
LABEL, BATTERY
40A-82141-G0-00
Unavailable
12
WIRE, PLUS LEAD
29U-82115-00-00
Unavailable
13
WIRE, MINUS LEAD
29U-82116-00-00
Unavailable
14
COVER, BATTERY
24W-82129-00-00
Unavailable
16
PAD, BATTERY
371-82121-00-00
Unavailable
17
IGNITION COIL ASSY
1UY-82310-41-00
Unavailable
18
BOLT (21V)
90109-06723-00
Unavailable
19
BOLT(3DM)
97024-06020-00
Unavailable
20
WASHER, SPRING
92995-06100-00
Unavailable
21
PLUG CAP ASSY
3NS-82370-00-00
Unavailable
22
MAIN SWITCH ASSEMBLY. (52H-82510-00)
52H-82510-01-00
Unavailable
23
LABEL
29U-83585-10-00
Unavailable
24
BULB (12V-3.4W)
123-83516-21-00
Unavailable
24
PILOT LIGHT ASSY
24W-83530-10-00
Unavailable
25
BULB (12V-3.4W)
123-83516-21-00
Unavailable
25
PILOT LIGHT ASSY
52G-83530-10-00
Unavailable
26
LABEL
52H-83585-00-00
Unavailable
27
NEUTRAL SWITCH ASSY
4GY-82540-10-00
Unavailable
28
GASKET (5R6)
90430-10171-00
Unavailable
29
NEUTRAL SWITCH ASSY
136-82540-03-00
Unavailable
30
WASHER, PLATE
90201-12790-00
Unavailable
31
WASHER, PLATE
90201-12790-00
Unavailable
32
PIPE, BREATHER
3L5-82112-00-00
Unavailable
33
FUSE HOLDER ASSY
29U-82150-00-00
Unavailable
34
FUSE (10A)
1E6-82151-00-00
Unavailable
35
WIRE HARNESS ASSEMBLY
52H-82590-60-00
Unavailable
36
WIRE, LEAD
52G-82541-00-00
Unavailable
37
BAND, SWITCH CORD
437-83936-11-00
Unavailable
38
BAND, SWITCH CORD
437-83936-01-00
Unavailable
39
BAND, SWITCH CORD
437-83936-11-00
Unavailable
