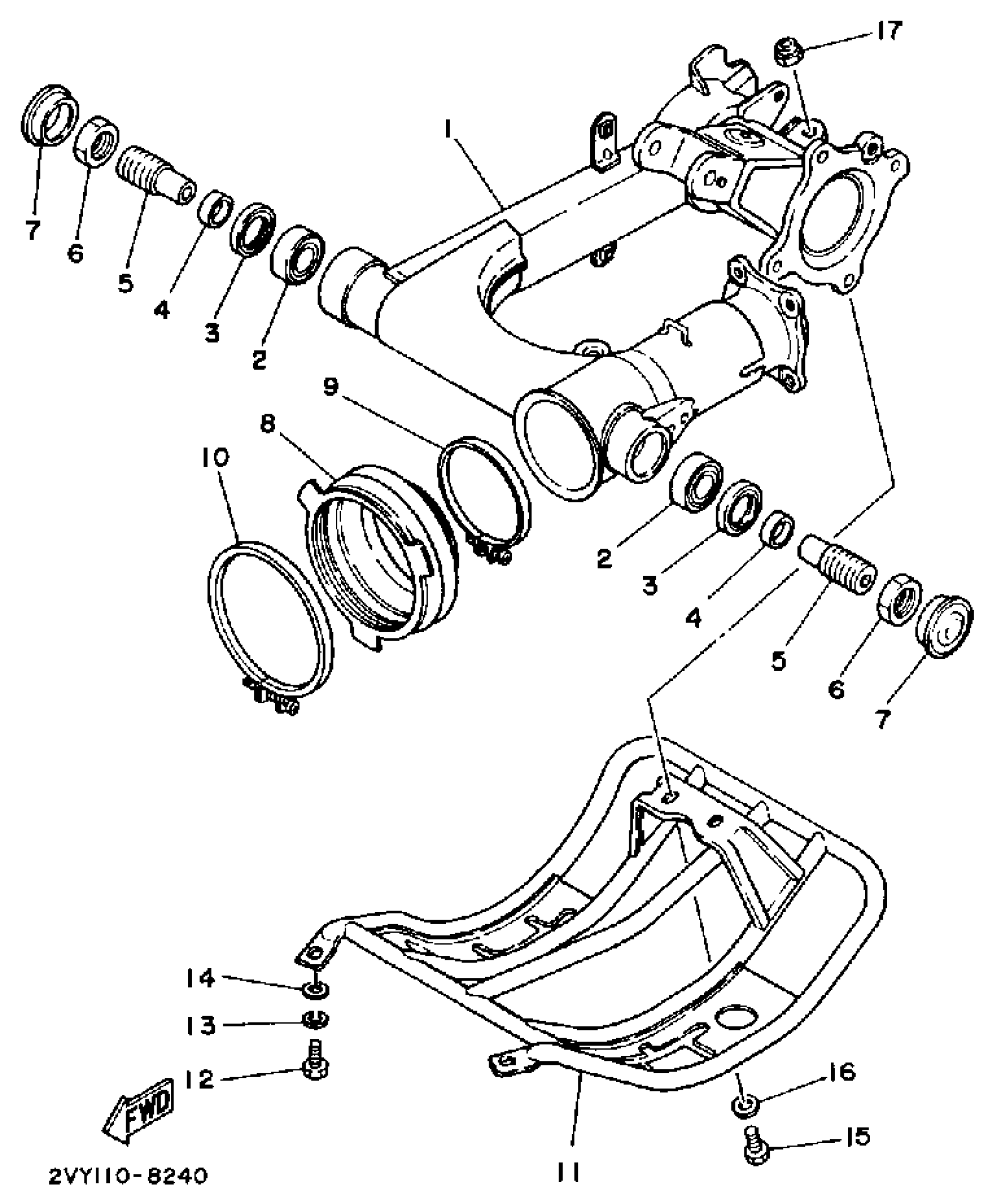

Yamaha YFM200DXW (MOTO-4) 1989 SWING ARM Diagram

#

Description
Price

1

REAR ARM

2VY-22110-00-33

Unavailable

2

BRG,CYL-CAL ROLLER 74G KY

93332-00010-00

$38.52

3

OIL SEAL (25X40X5-101)

93102-25017-00

$3.92

4

COLLAR

90387-17011-00

$11.93

5

SHAFT, PIVOT

4WV-22141-00-00

$25.51

6

NUT, PIVOT SHAFT

1J7-22143-00-00

$19.05

7

PLUG (1J7)

90338-34069-00

Unavailable

8

BOOT, RUBBER

29U-22189-00-00

Unavailable

9

CLAMP, HOSE

90460-80229-00

Unavailable

10

CLAMP, HOSE (29U)

90460-99228-00

$14.38

11

COVER

29U-2219X-00-00

Unavailable

12

BOLT, HEXAGON

97017-08016-00

$5.79

13

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

14

.. WASHER, PLATE

92990-08600-00

$2.17

15

BOLT, HEXAGON

97017-08016-00

$5.79

16

WASHER, PLATE (33N)

90201-094G1-00

Unavailable

17

NUT, SELF-LOCKING (3Y2)

90185-08089-00

Unavailable
