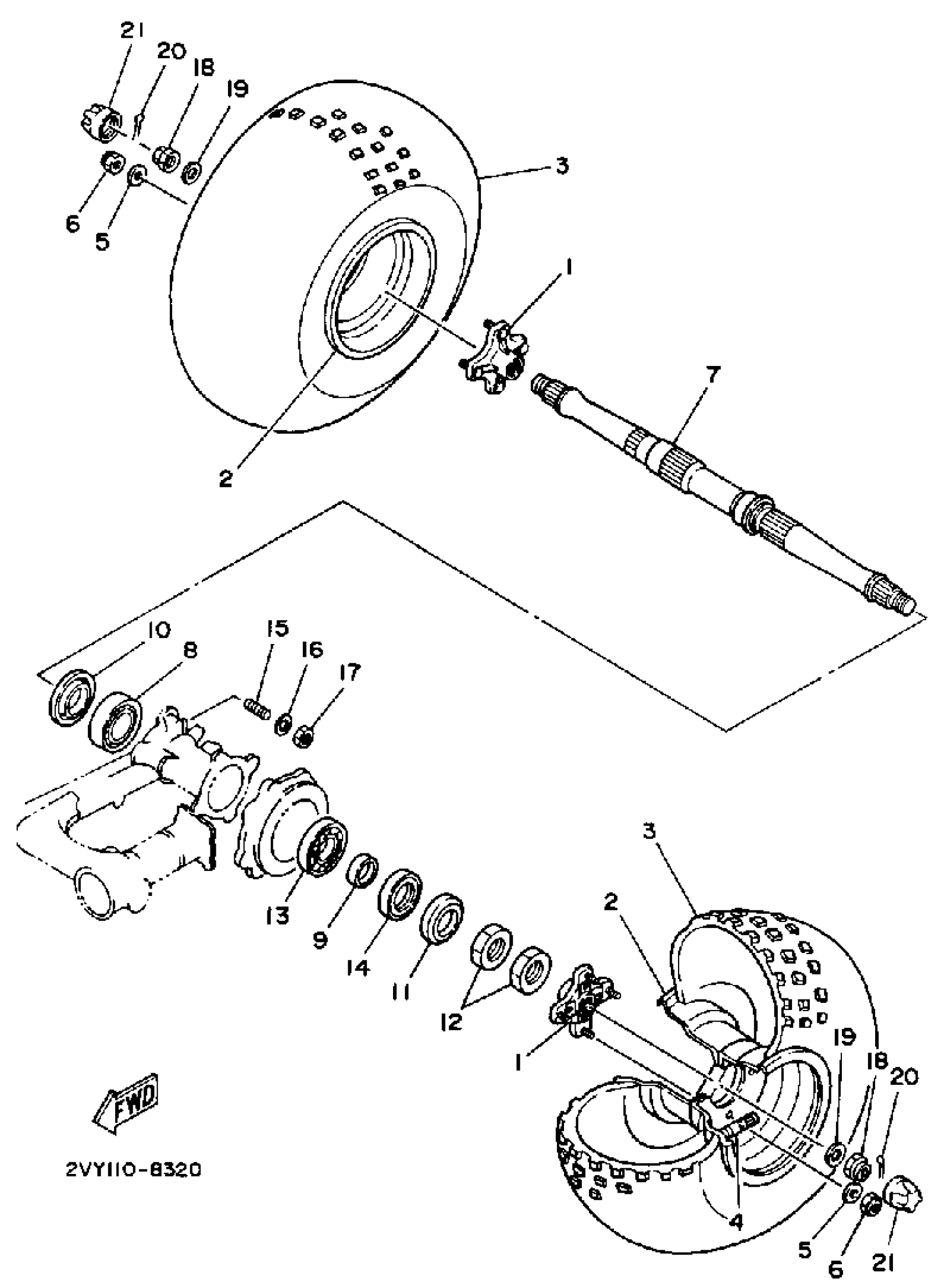

Yamaha YFM200DXW (MOTO-4) 1989 REAR WHEEL Diagram

#

Description
Price

1

COLLAR, WHEEL

2VY-25383-00-00

Unavailable

2

REAR WHEEL COMP.

2VY-25390-00-35

Unavailable

3

DUN AT22X10-8KT988 (AT22X10-8)

94110-084X2-00

Unavailable

4

VALVE, RIM(2GH)

93900-00030-00

$16.99

5

WASHER, PLATE(47X)

90201-101J1-00

$8.49

6

NUT, U

95614-10100-00

$7.49

7

AXLE, WHEEL

1NU-25381-01-00

Unavailable

8

BEARING (24W)

93399-99913-00

Unavailable

9

COLLAR, AXLE

24W-25386-00-00

Unavailable

10

COVER, HUB DUST

24W-25367-00-00

Unavailable

11

COVER, HUB DUST

21V-25367-00-00

Unavailable

12

NUT

90170-40387-00

Unavailable

13

BEARING

93306-00804-00

Unavailable

14

OIL SEAL (21V)

93102-46274-00

Unavailable

15

BOLT, STUD (537 HUB)

90116-10221-00

$4.88

16

WASHER, PLATE (29U)

90201-104G0-00

Unavailable

17

NUT(3BM)

95314-10600-00

Unavailable

18

NUT, CASTLE (29U)

90171-14037-00

Unavailable

19

WASHER, PLATE

90201-144K1-00

Unavailable

20

PIN, COTTER

91490-30030-00

Unavailable

21

CAP, WHEEL

52H-2512A-00-00

Unavailable
