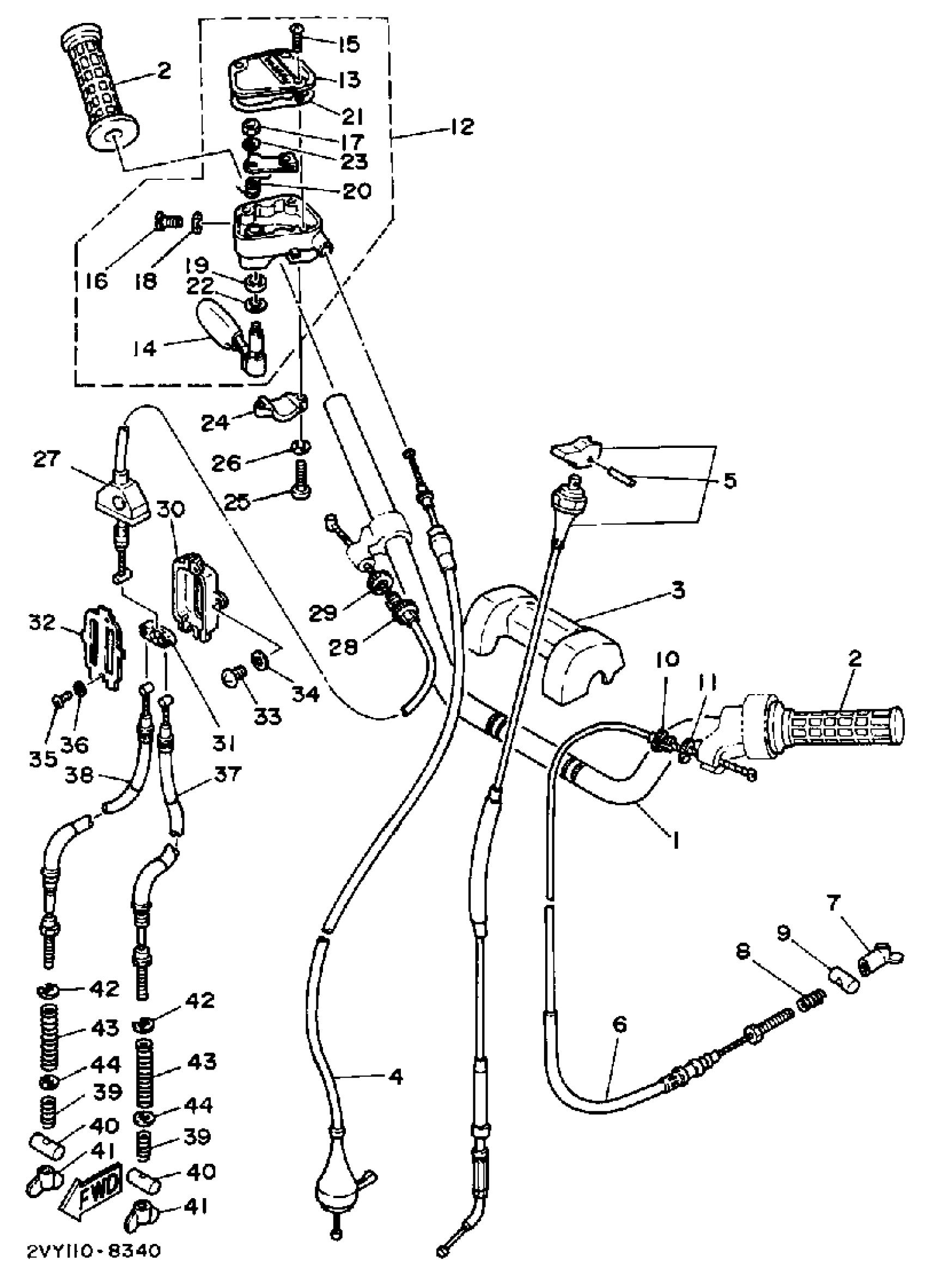

Yamaha YFM200DXW (MOTO-4) 1989 HANDLEBAR-CABLE Diagram
#
1
HANDLEBAR
1NU-26111-00-00
Unavailable
3
PROTECTOR, HDLBR
52H-26124-00-00
Unavailable
4
CABLE, THROTTLE 1
1NU-26311-00-00
Unavailable
5
CABLE, STARTER 1
2FH-26331-00-00
Unavailable
6
CABLE, BRAKE
1NU-26341-00-00
Unavailable
12
THROTTLE LEVER ASSEMBLY
1NV-26250-11-00
Unavailable
13
. CAP, GEAR
1NV-2628F-00-00
Unavailable
14
LEVER, THROTTLE
1NV-2625G-02-00
Unavailable
16
SCREW, PAN HEAD
98517-05020-00
Unavailable
17
NUT, U
95617-05100-00
Unavailable
18
NUT, HEXAGON SMALL
95317-05700-00
Unavailable
19
OIL SEAL (9X15X4-256)
93104-09025-00
Unavailable
20
SPRING
1NV-26304-00-00
Unavailable
21
. GASKET
1NV-2628G-00-00
Unavailable
22
WASHER
1NV-26129-00-00
Unavailable
23
. WASHER, SPECIAL
53L-83909-00-00
Unavailable
24
HOLDER, LEVER LOWER
4V4-82913-00-00
Unavailable
25
SCREW, PAN HEAD
98517-05020-00
Unavailable
26
WASHER(3SX)
92907-05100-00
Unavailable
27
CABLE, BRAKE 4
1NU-26373-00-00
Unavailable
30
HOUSING, BRAKE LINK
52H-26371-00-00
Unavailable
31
JOINT, CABLE
52H-26347-01-00
Unavailable
32
PLATE
52H-2631G-00-00
Unavailable
33
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
34
WASHER, PLAIN (646)
92990-05600-00
Unavailable
35
SCREW, PAN HEAD (J10)
98580-03008-00
Unavailable
36
WASHER(3SX)
92907-03600-00
Unavailable
37
CABLE, BRAKE
2HT-26361-00-00
Unavailable
38
CABLE, BRAKE 4
2HT-26373-00-00
Unavailable
41
NUT, WING (1K5)
90175-06013-00
Unavailable
42
CIRCLIP(53L)
99001-06600-00
Unavailable
43
SPRING, COMPRESSION(52H)
90501-123A0-00
Unavailable
44
BOLT
90109-06265-00
Unavailable
