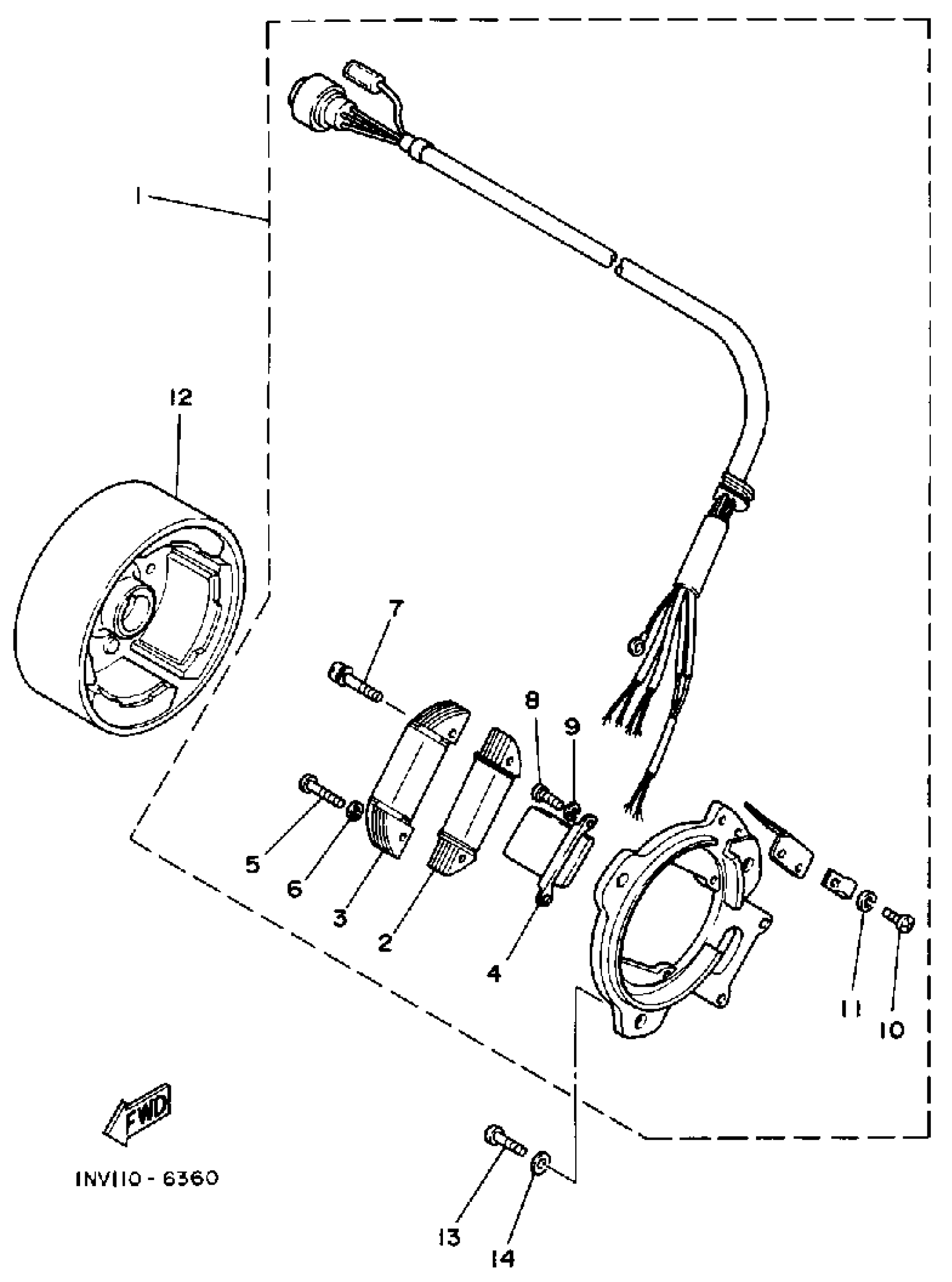

Yamaha YFM200DXW (MOTO-4) 1989 GENERATOR Diagram

#

Description
Price

1

STATOR ASSEMBLY (24W-85510-20)

29U-85510-20-00

Unavailable

2

. COIL SOURCE 2

21V-85512-20-00

Unavailable

3

. COIL, LIGHTING 1

24W-85513-20-00

Unavailable

4

COIL,PULSER

59V-85580-20-00

Unavailable

5

SCREW, PAN HEAD

98507-04018-00

$2.19

6

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

7

SCREW,PAN HEAD

98517-04030-00

Unavailable

8

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

9

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

10

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

11

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

12

ROTOR ASSEMBLY

29U-85550-21-00

Unavailable

13

SCREW, PAN

98507-06014-00

$8.49

14

WASHER, PLAIN (646)

92990-06600-00

$2.80
