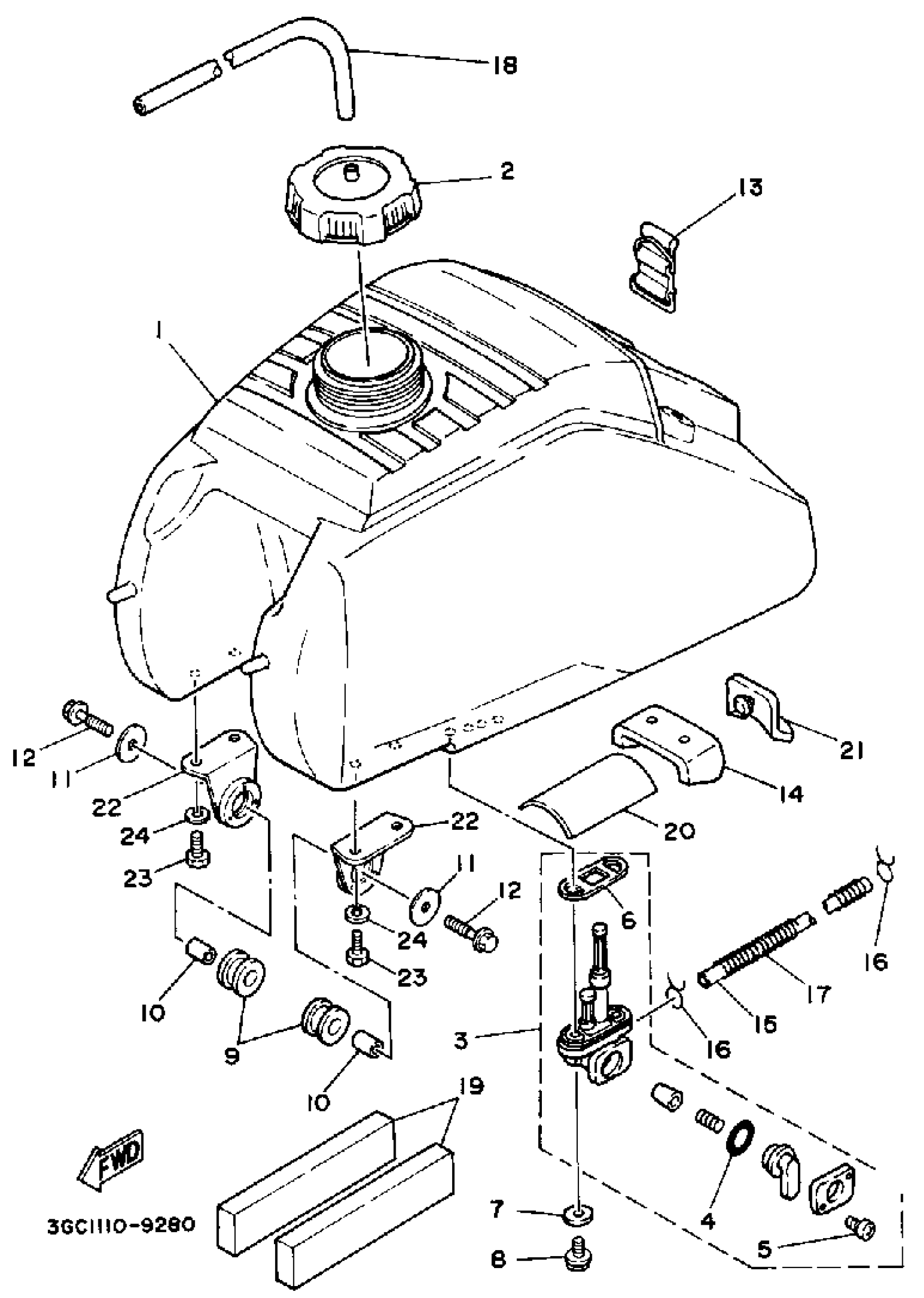

Yamaha YFM200DXW (MOTO-4) 1989 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

3GC-24110-00-00

Unavailable

2

CAP ASSY

5MV-24610-00-00

$58.99

3

FUEL COCK ASSY 1

21V-24500-20-00

$51.99

4

O-RING

4X8-24534-00-00

$13.49

5

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

6

O-RING

4X8-24512-00-00

$8.99

7

WASHER, PLATE(3MB)

90202-05187-00

$1.38

8

SCREW 256241430000

90149-06011-00

$5.60

9

GROMMET (4V1)

90480-18290-00

$8.49

10

COLLAR (1T2)

90387-07598-00

$5.60

11

WASHER PLATE 137241870000

90201-06072-00

$9.49

12

BOLT, WITH WASHER (24X)

90119-06073-00

$8.49

13

BAND, TANK FITTING 1

59V-24173-00-00

$18.49

14

DAMPER, LOCATING 1

29U-24181-00-00

Unavailable

15

HOSE (L400)

90445-116K9-00

$24.99

16

CLIP

90467-100A1-00

Unavailable

17

SPRING, COMPRESSION (27Y)

90501-08728-00

Unavailable

18

HOSE (L1500)

90445-090F6-00

Unavailable

19

TRIM, LOWER

89A-77214-00-00

Unavailable

20

DAMPER 1

2JG-21638-00-00

Unavailable

21

DAMPER, LOCATING 4

23X-24184-00-00

Unavailable

22

STAY, FUEL TANK 1

3GC-24157-00-00

Unavailable

23

BOLT (661)

97013-06012-00

Unavailable

24

WASHER, SPRING

92995-06100-00

Unavailable
