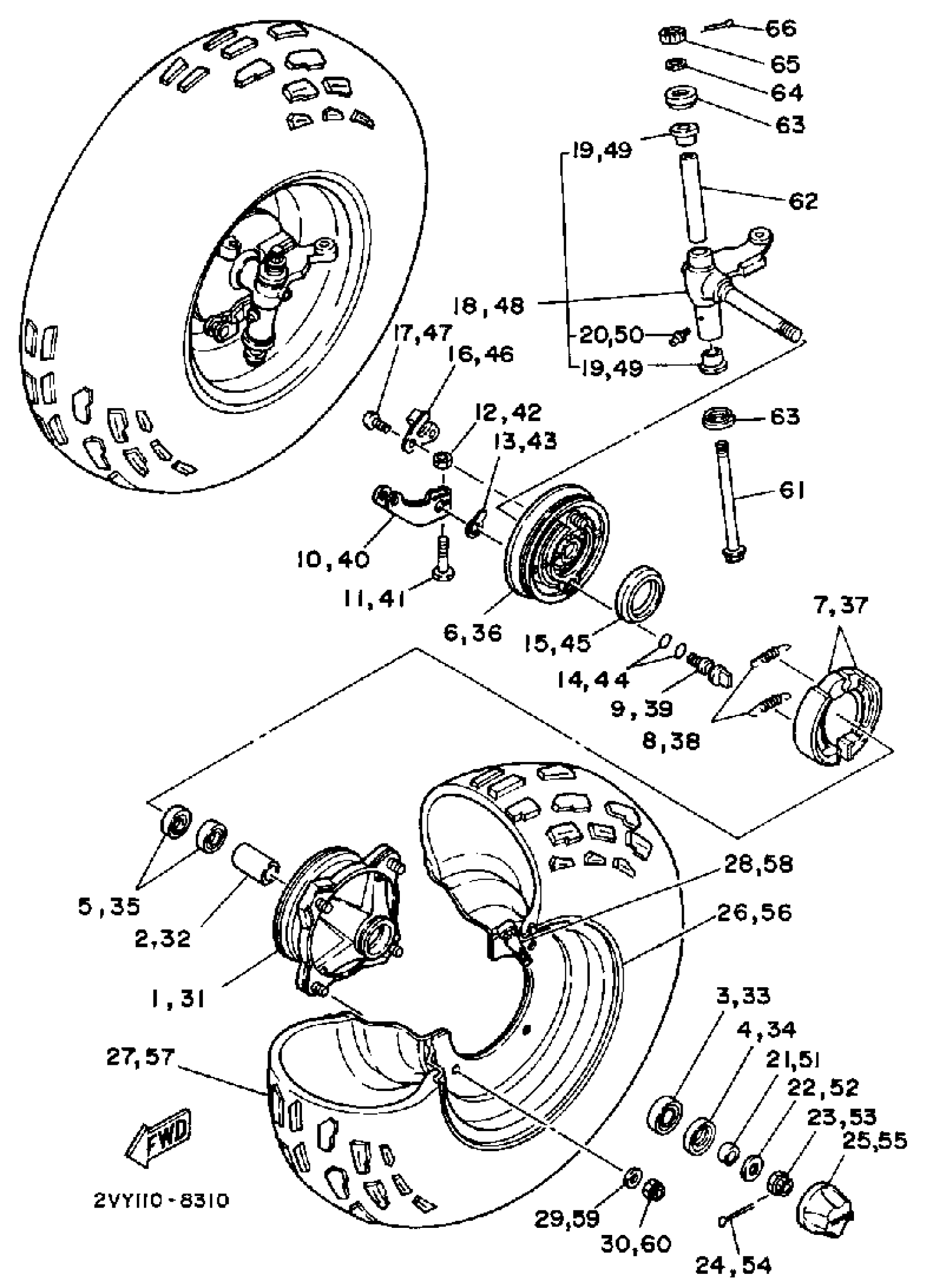

Yamaha YFM200DXW (MOTO-4) 1989 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

52H-25111-00-35

Unavailable

2

SPACER

90560-17302-00

Unavailable

3

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

4

OIL SEAL (5V6)

93102-23252-00

$14.99

5

BEARING(2JN)

93306-00315-00

$33.99

6

PLATE, BRAKE SHOE

2HT-25121-00-00

Unavailable

7

BRAKE SHOE KIT

4BE-W253E-00-00

$21.99

8

SPRING, TENSION

90506-15260-00

$8.49

9

CAMSHAFT

5G3-25351-02-00

Unavailable

10

LEVER, CAMSHAFT 1

52H-25155-00-00

Unavailable

11

BOLT, HEXAGON (538)

90101-06278-00

$2.17

12

NUT, HEXAGON

95380-06600-00

Unavailable

13

PLATE, INDICATOR

52H-2513A-00-00

Unavailable

14

O-RING(3LD)

93210-12790-00

$7.49

15

OIL SEAL

93105-49023-00

Unavailable

16

STAY

2HT-25192-00-00

Unavailable

17

BOLT, BUTTON HEAD

92017-06014-00

Unavailable

18

STEERING KNUCKLE ASSEMBLY (LT)

59V-23501-01-00

Unavailable

19

BUSH, SOLID (J10)

90381-15032-00

Unavailable

20

NIPPLE, GREASE

93700-06M03-00

Unavailable

21

COLLAR

90387-175R2-00

Unavailable

22

WASHER PLATE 248181370000

90201-14220-00

Unavailable

23

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable

24

PIN, COTTER

91490-30030-00

Unavailable

25

CAP, WHEEL

52H-2512A-00-00

Unavailable

26

WHEEL,FRONT

2HT-25180-00-35

Unavailable

27

AT22X8-10KT486MA D

94108-103W3-00

Unavailable

28

VALVE, RIM(2GH)

93900-00030-00

Unavailable

29

WASHER (853)

90201-08326-00

Unavailable

30

NUT, U

95617-08100-00

Unavailable

31

HUB, FRONT

52H-25111-00-35

Unavailable

32

SPACER

90560-17302-00

Unavailable

33

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

34

OIL SEAL (5V6)

93102-23252-00

$14.99

35

BEARING(2JN)

93306-00315-00

$33.99

36

PLATE, BRAKE SHOE 2

2HT-25169-00-00

Unavailable

37

BRAKE SHOE KIT

4BE-W253E-00-00

$21.99

38

SPRING, TENSION

90506-15260-00

$8.49

39

CAMSHAFT

5G3-25351-02-00

Unavailable

40

LEVER, CAMSHAFT 2

52H-25156-00-00

Unavailable

41

BOLT, HEXAGON (538)

90101-06278-00

$2.17

42

NUT, HEXAGON

95380-06600-00

Unavailable

43

PLATE, INDICATOR

52H-2513A-00-00

Unavailable

44

O-RING(3LD)

93210-12790-00

$7.49

45

OIL SEAL

93105-49023-00

Unavailable

46

STAY 2

2HT-2519F-00-00

Unavailable

47

BOLT, BUTTON HEAD

92017-06014-00

Unavailable

48

STEERING, KNUCKLE ASSEMBLY (RT)

59V-23502-01-00

Unavailable

49

BUSH, SOLID (J10)

90381-15032-00

Unavailable

50

NIPPLE, GREASE

93700-06M03-00

Unavailable

51

COLLAR

90387-175R2-00

Unavailable

52

WASHER PLATE 248181370000

90201-14220-00

Unavailable

53

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable

54

PIN, COTTER

91490-30030-00

Unavailable

55

CAP, WHEEL

52H-2512A-00-00

Unavailable

56

WHEEL,FRONT

2HT-25180-00-35

Unavailable

57

AT22X8-10KT486MA D

94108-103W3-00

Unavailable

58

VALVE, RIM(2GH)

93900-00030-00

Unavailable

59

WASHER (853)

90201-08326-00

Unavailable

60

NUT, U

95617-08100-00

Unavailable

61

BOLT, WASHER BASED(59V)

90105-10389-00

Unavailable

62

SPACER

52H-23448-00-00

Unavailable

63

COVER, THRUST 1

59V-23517-00-00

Unavailable

64

WASHER, PLATE (3L6)

90201-10774-00

Unavailable

65

NUT 3532518200

90171-10004-00

Unavailable

66

PIN, COTTER

91490-20025-00

Unavailable
