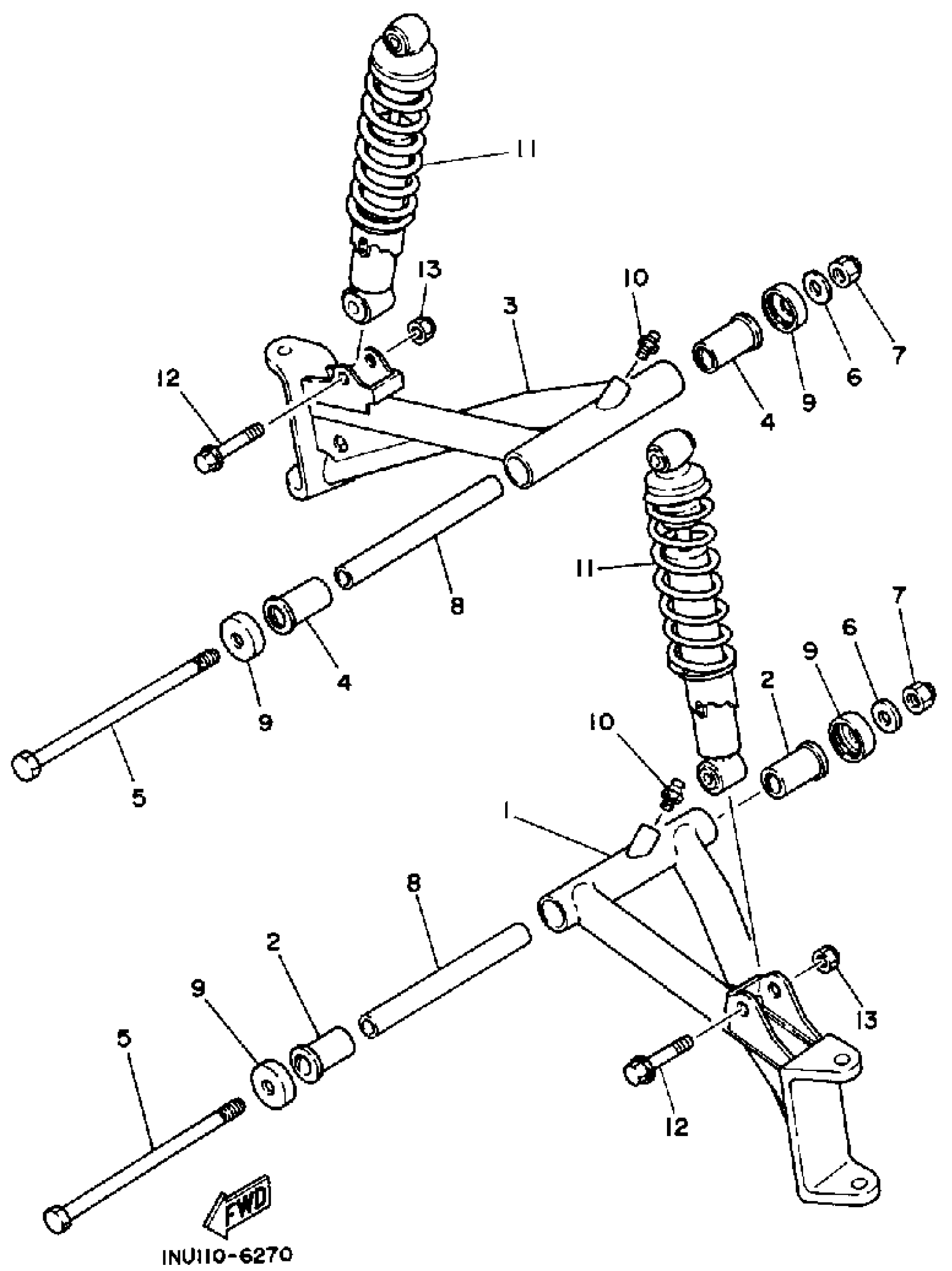

Yamaha YFM200DXW (MOTO-4) 1989 FRONT SUSPENSION-WHEEL Diagram

FRONT LOWER ARM COMPLETE (LT)

1NU-23570-00-00

Unavailable

BUSHING (401-22123-00)

90386-18028-00

$26.99

FRONT LOWER ARM COMPLETE (RT)

1NU-23580-00-00

Unavailable

BUSHING (401-22123-00)

90386-18028-00

$26.99

SHAFT, PIVOT

537-22141-01-00

Unavailable

WASHER, PLATE (35T)

90201-122H1-00

$9.49

NUT, SELF-LOCKING(1KH)

90185-12134-00

$12.49

BUSH 2

18G-22124-00-00

Unavailable

COVER, THRUST 1

401-22128-01-00

$29.99

NIPPLE, GREASE

93700-06M03-00

Unavailable

SHOCK ABSORBER ASSEMBLYASSY

2VY-23350-00-35

Unavailable

BOLT, WASHER BASED(59V)

90105-10388-00

$10.49

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$7.49
