Description

Price

1

PIPE, EXHAUST L

52H-14611-00-00

Unavailable

2

MUFFLER (L)

52H-14711-03-00

Unavailable

3

GASKET, MUFFLER

4DN-14714-01-00

$65.99

4

BOLT, HEXAGON

97017-08025-00

$10.49

5

WASHER(6TA)

92907-08600-00

$3.03

6

PIPE, OUTLET

21V-14752-00-00

Unavailable

7

BOLT(3JP)

97017-06010-00

$3.76

8

PROTECTOR, EXHAUST PIPE

2HT-14628-00-00

Unavailable

9

WASHER, PLATE(3MB)

90202-05187-00

$1.38

10

SCREW, BINDING

98907-06008-00

$8.49

11

WASHER, WAVE(3RW)

90206-06090-00

$8.49

12

WASHER, PLAIN (646)

92990-06600-00

$2.80

13

WASHER, SPRING

92995-06100-00

Unavailable

14

GASKET, EXHAUST PIPE

4BE-14613-00-00

$9.99

15

BOLT,SOCKET

91317-06020-00

Unavailable

16

BOLT, FLANGE(8AB)

95817-08020-00

Unavailable

17

WASHER (853)

90201-08326-00

Unavailable

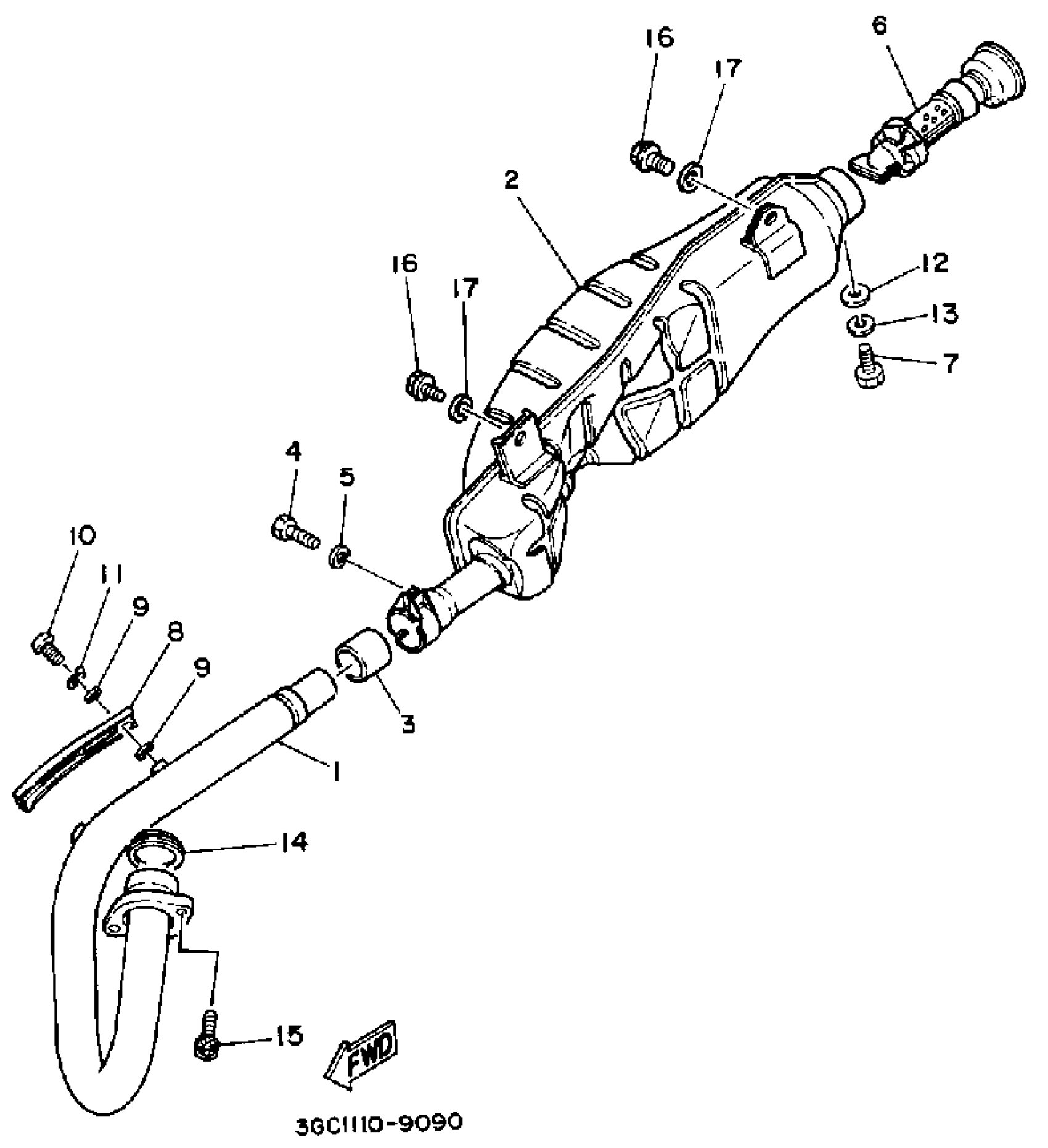

Yamaha YFM200DXW (MOTO-4) 1989 EXHAUST Diagram

PIPE, EXHAUST L

MUFFLER (L)

GASKET, MUFFLER

BOLT, HEXAGON

WASHER(6TA)

PIPE, OUTLET

BOLT(3JP)

PROTECTOR, EXHAUST PIPE

WASHER, PLATE(3MB)

SCREW, BINDING

WASHER, WAVE(3RW)

WASHER, PLAIN (646)

WASHER, SPRING

GASKET, EXHAUST PIPE

BOLT,SOCKET

BOLT, FLANGE(8AB)

WASHER (853)
